Smart Robot Car Kit Upgrade For r3 Project Stem Starter Complete DIY Electronic Robotics Educational Kit Programmable
4WD Smart Robot Car Kit For r3 Programming Projects, DIY Electronics Starter Kit Upgrade R3Board
Smart Robot Car Kit for Arduino Project Programming with Mecanum Wheels Upgrade R3 DIY Self-Building Electronics Kit
Functions of this smart car
Ultrasonic obstacle avoidance: automatically avoid obstacle.
Line tracking: go along a black line.
Infrared remote control: go forward, backward and circle around.
Parameters
Motor parameters: Voltage: 6V, reduction ratio: 1 to 48
Use L298N driver module for motor control, true separation from microcontroller.
Three line tracking modules, detecting black and white line, high precision, can
also be used in fall prevention.
Infrared remote communication module makes up the remote control system.
Car length: 23cm; width: 12cm. Can be used under external 7 ~ 12V voltage, also with various sensor modules to realize various functions.

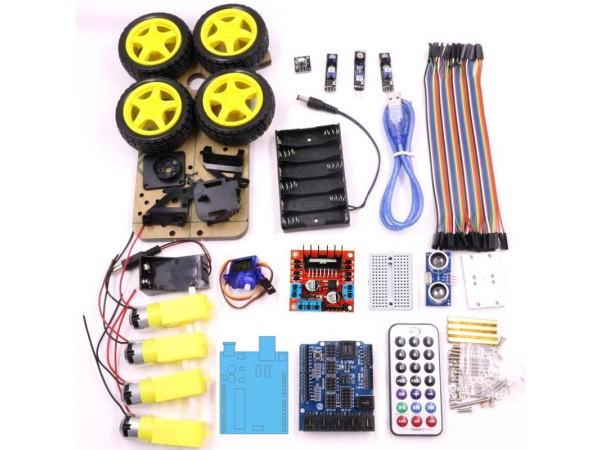

Kit list:
1.Gear motor *4
2.High-quality tires *4
3.Motor fixing part *4
4.100 * 213 * 5MM acrylic board *1
5.100 * 213 * 5MM acrylic board *1
6.L298N motor driver board *1
7.For ARDUINO UNO328 controller board *1
8.For ARDUINO sensor shield *1
9.Holder*1
10.Servo motor *1
11.Ultrasonic sensor Module *1
12.Three-channel line tracking module
13.IR receiver sensor
14.MCU remote control
15.Mini breadboard *1
16.6-cell AA battery case*1
17.Dupont wire *30
18.18650 charger *1
19.1M USB cable
20.35MM Copper bush *3
21.20MM Copper bush *2
22.6MM Copper bush *6
23.3MM screws & nuts *several
