SCS STS3032 4.5 kg Micro small mini Robot Feedback custom TTL Magnetic coded serial bus servo uart servo

 STS3032 Small Size 6V 4.5 KG.CM Magnetic Encoder Single Shaft Servo Medical Robot Machine Equipment

STS3032 Small Size 6V 4.5 KG.CM Micro Magnetic Encoder Single Shaft Servo Quadruped Robot

 STS3032 Small Size 6V 4.5 KG.CM Micro servo TTL Collaborative Robot

Product Introduction

SKU：STS3032

Product Name：6V 4.5KG.CM Metal Case Metal Gear Magnetic Encoder TTL Serial Bus Servo

Appearance size：32X12X27.5mm（See the blueprint）

Stall Torque：4.5kg.cm---6V

Stall Speed：111RPM--6V

Feedback: load / position / speed / voltage / current / temperature Electronic protection: overheat / overcurrent / overvoltage / overload protection

Connector wire: 200mm ±5 mm

Material: Aluminium case &Coreless motor&metal Gear.

The servo motor was designed for Robot Joints, which has the characteristics of strong impact resistance, low noise, long life.And we can also provide customized service for our customers.

Advantages:

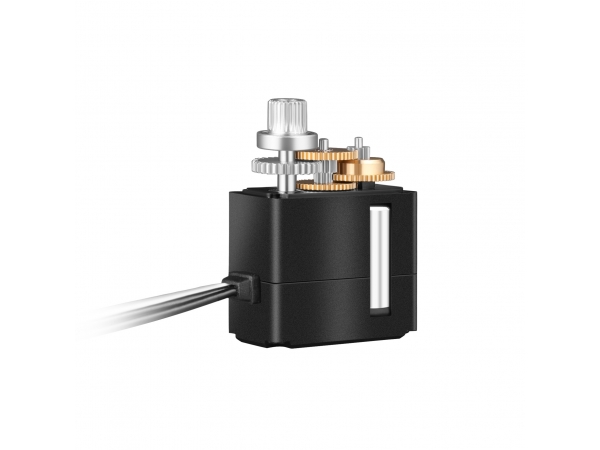

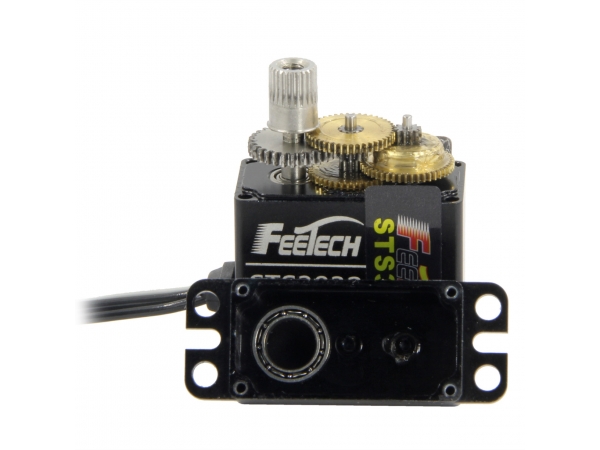

1. High-precision metal gears with hard anodizing

2. CNC aluminium Shell,Good heating

3. Very long lifetime

4. very high speed fast response Case

Operating mode:Servo mode / motor mode

Bearing Type:2 Ball bearings

Horn Type:Plastic,POM

Motor:Coreless Motor

Running degree:360°(when 0~4096)
