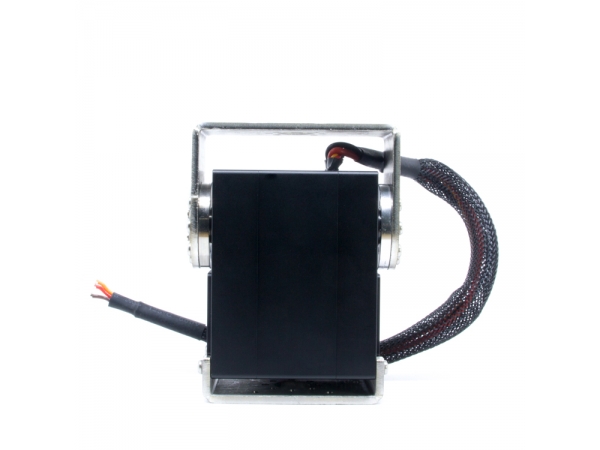

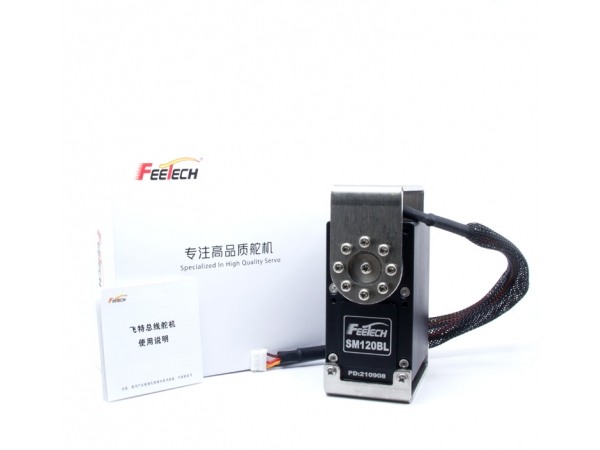

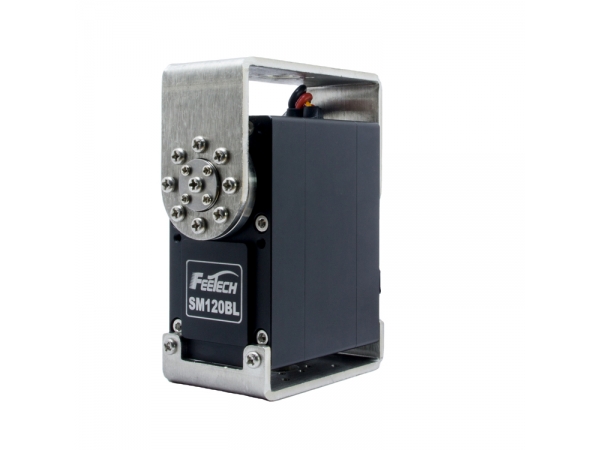

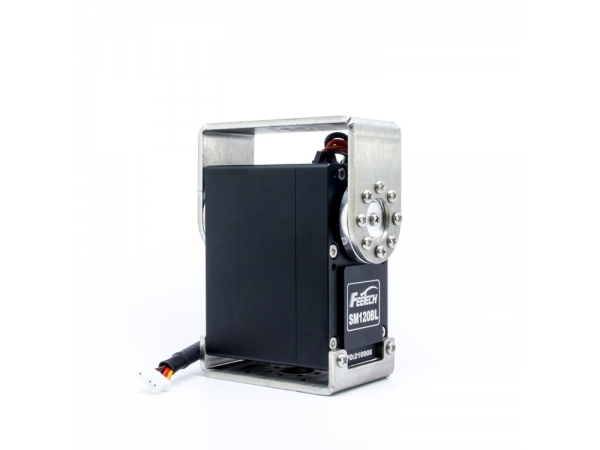

SM120BL 24V 120kg.cm Serial Control RS485 big servo robot high torque servo series
Large Size 12V 24V120kg cm Brushless Smart Servo SM120BL
12V 100 KG 120 KG Torque Ultra Heavy Duty Giant Scale Brushless Servo Serial Bus RS485 with Magnetic Encoder for rc Robot
24V 120KG RS485 Control Big Servo Robot High Torque Servo Motor For Industry Robotic Equipment Intelligent Automation Field

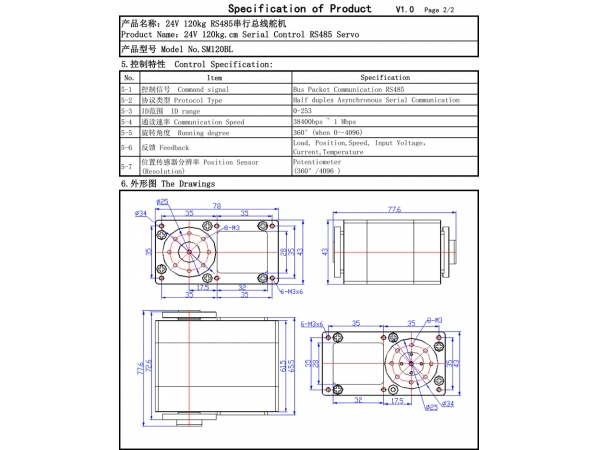

Product Description:
Weight: 485g
Size: 78*43*65,5mm
Motor: Brushless motor
Gearbox type: Steel gearbox (232:1)
Bearings: 2 ball bearings
Horn gearbox spline: One sign (OD 10mm)
Connection wire: 300mm with 5264-4P plug
Angle Sensor: 12Bits Magnetic Coding
Servo Angle: 360° (if 0~4096)
Electronic parameters:
Voltage: 24V
Speed (Without load): 0.2 s/60°/50RPM
Current (Without load): 200mA
Stable torque: 120KG. CM
Rated torque: 40KG. CM
Stable Current: 4000mA
Terminal Resistance: 2.8Ω
Communiccation Speed: 38400bps~1 Mbps
Command signal: Bus packet communication RS485
Position Sensor (Resolution): 12Bits Magnetic Coding (360°/4096)
Feedback: load, position, speed, input voltage, current, temperature
Operating Temperature Range: -20°C~80°C
