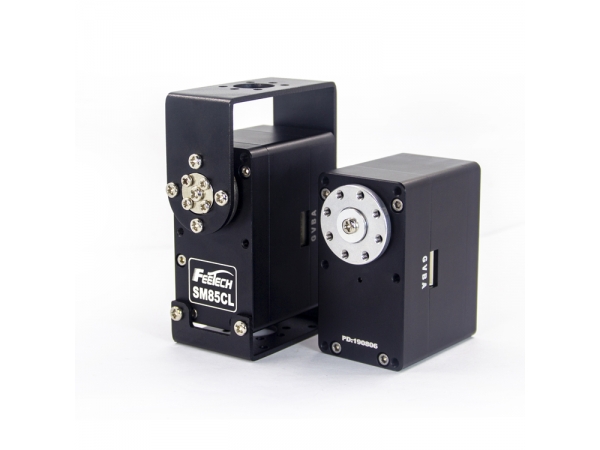

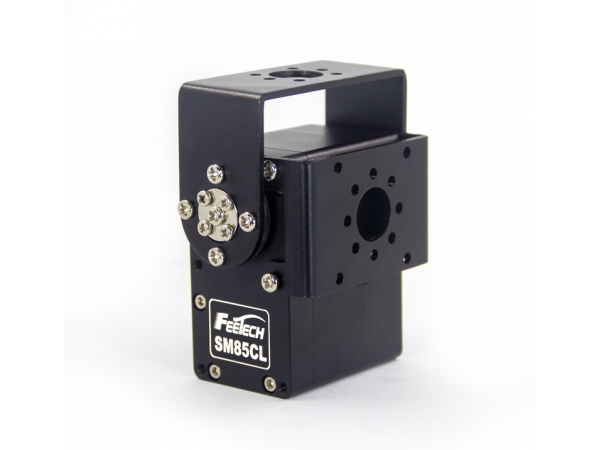

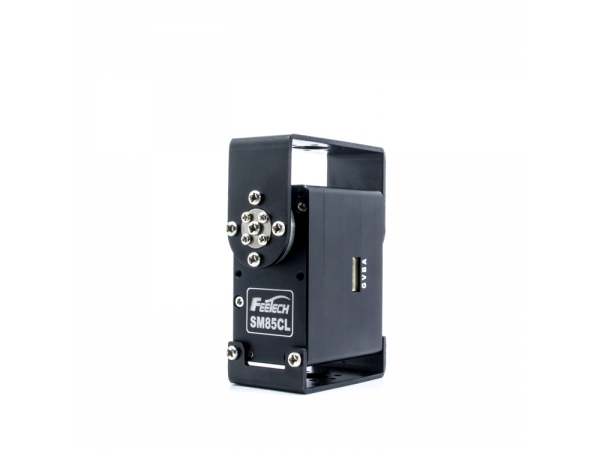

SM85CL High Torque 80kg Servo Magnetic Encorder Industrial Equipment Smart Servo RC Robot Servo
Large 85kg cm 360 Degree Large Angle AI Robotic Smart Servo With Magnetic Encoder
485 magnetic coding 85Kg torque all metal serial bus servo modbus logistics warehousing motor smart home parts
Magnetic 85 kg torque Ultra Heavy Duty Giant Scale Digital HV Brushless Servo Similar Dynamixel servos Robot Arm and Industry
Product Description:
Weight: 215g
Size: 62*34*47mm
Motor: Coreless motor
Gearbox type: Steel gearbox
Bearings: 2 ball bearings
Horn gear spline: 15T (OD 7,6mm)
Connection wire: 150mm with 5264-4P plug
Angle Sensor: 12Bits Magnetic Coding
Servo Angle: 360° (if 0~4096)
Electronic parameters:
Voltage: 12V
Speed (Without Load): 0.2 s/60°/37RPM
Current (Without load): 200mA
Stall torque: 85KG. CM
Rated torque: 28KG. CM
Stall Current: 3200mA
Terminal Resistance: 3.13Ω
Communiccation Speed: 38400bps~1 Mbps
Command signal: Bus packet communication RS485
Position Sensor (Resolution): 12Bits Magnetic Coding (360°/4096)
Feedback: load, position, speed, input voltage, current, temperature
Operating Temperature Range: -20°C~70°C
