High Quality Long Lifetime Brushless Servo Motor For Automatic Machinery SM30BL
485 Magnetic Encoder Large Angle 30kg Aluminium Robot Servo SM30BL
Brushless Servo Motor SM30BL for Automatic machinery RS485 Modbus RTU servo
30kg high torque brushless motor servo rc model servo SM30BL
Product Description
Operating Voltage:12V
Stall Torque :30kg.cm
No Load Speed :65rpm
Weight :96g
Operating Angle: 0° ~ 360°
Command signal :RS485
Protocol :Half duplex Asynchronous Serial Communication
Big Torque:30Kg. cm
Large Angle:+_30 thousand turns(Arbitrary absolute relative)
DC 6.5V~13V power supply
0.088 degree Position resolution
Dual output shaft,fit for robot joint

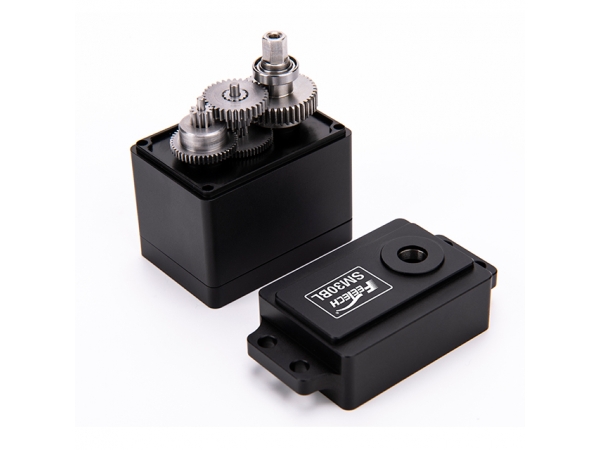

High precision all metal gear set,Double ball bearing
Full Aluminium alloyCNC case,Good cooling effect
Position servo control mode ,rotation range 0-360°and many turns Arbitrary absolute relative angle.
In the speed control mode ,can be continuous rotation,adjust speed
Duplex asynchronous T T L / 4 8 5 Communication level
Daisy chain connection, 254 ID can choose
High reach 1M Baud rate
333Hz servo update rate
Can give feedback on position,temperature,voltage,speed and current load
Use open FT SCS Serial asynchronous communication protocol
