Servo

Mini Full Metal 4kg Serial Robot Servo SCS2332 for Smart Toilet DLG Glider Small Fixed Wing

Mini Full Metal 4kg Serial Robot Servo SCS2332 for Smart Toilet DLG Glider Small Fixed Wing
Micro Metal Case 3.5kg cm Smart Serial Robot Servo SCS2332
6V 4.5 kg 300 Degree Smart Load Speed Position Feedback Robot Serial Bus Servo SCS2332
360 degree serial servo SCS2332 Metal Gear servo control servo
Products Description
Model:SCS2332
Size:23.2*12.1*28.5mm
Weight:20g

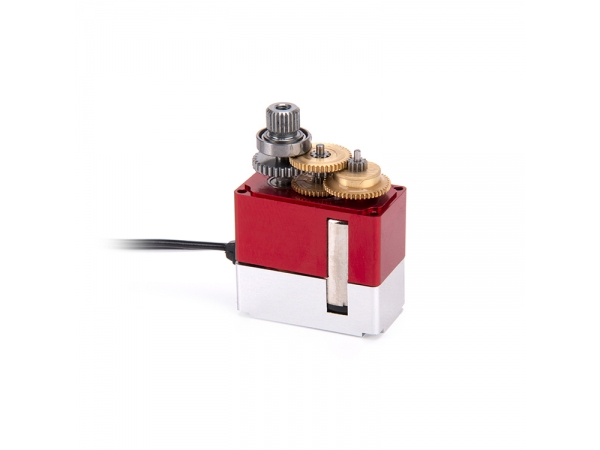

Gear type:Metal Gear
Limit angle:NO limit
Bearing:2 Ball bearings
Horn gear spline:25T(4.95mm)
Horn type:Plastic,POM
Case:aluminium alloy
Operating Voltage Range:4.8-6V
No load speed:0.09sec/60°@6V
Running current(at no load) :150 mA@6V
Peak stall torque:4.5kg.cm@6V
Rated torque:1.5kg.cm@6V
Stall current:1200mA@6V
Running degree:300°(when 0～1023)
  • Mini Full Metal 4kg Serial Robot Servo SCS2332 for Smart Toilet DLG Glider Small Fixed Wing
    Micro Metal Case 3.5kg cm Smart Serial Robot Servo SCS2332
    6V 4.5 kg 300 Degree Smart Load Speed Position Feedback Robot Serial Bus Servo SCS2332
    360 degree serial servo SCS2332 Metal Gear servo control servo
    Products Description
    Model:SCS2332
    Size:23.2*12.1*28.5mm
    Weight:20g
    Gear type:Metal Gear
    Limit angle:NO limit
    Bearing:2 Ball bearings
    Horn gear spline:25T(4.95mm)
    Horn type:Plastic,POM
    Case:aluminium alloy
    Operating Voltage Range:4.8-6V
    No load speed:0.09sec/60°@6V
    Running current(at no load) :150 mA@6V
    Peak stall torque:4.5kg.cm@6V
    Rated torque:1.5kg.cm@6V
    Stall current:1200mA@6V
    Running degree:300°(when 0～1023)
