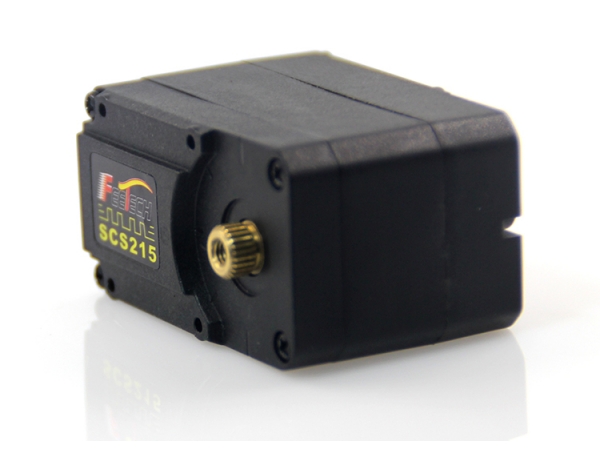

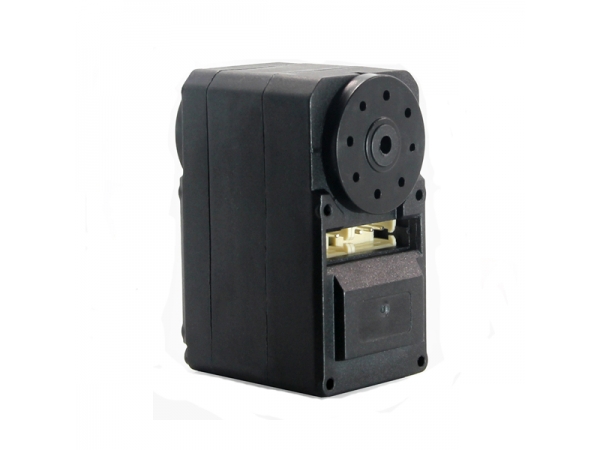

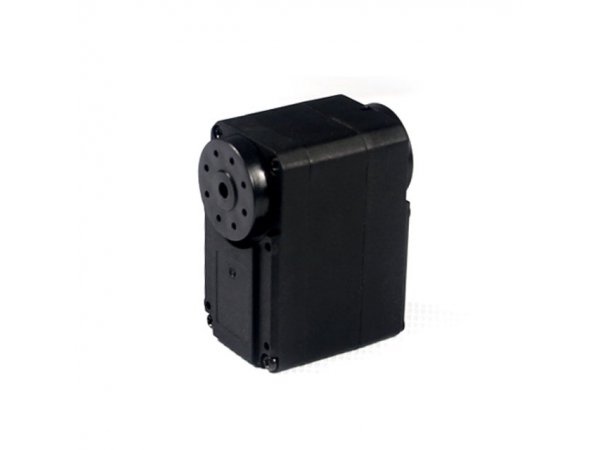

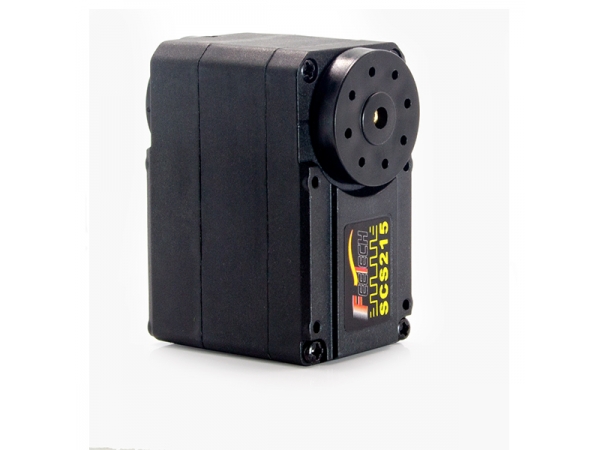

TTL 17kg cm Dual-shaft Serial Bus Servo Scservo Smart Robot Servo SCS215
Smart Serial Servo SCS215 for Servo for STEM education/Smart home/Industrial automation
Smart Robot Servo SCS215 Drawing Robot Use 18kg Serial Control BUS Servo For Humanoid Robot/Smart Controller
SCS215 Support TTL/485 communication protocol Robot Servo Dual Shaft Spider Robot
Specifications
Dimensions : 45.2*24.7*35mm
Weight : 52g
Operating Angle : 0-180 Degree
Bus Interface : TTL Level Multi Drop
Control Type : Bus Packet Communication
Control Protocol : Half Duplex Asynchronous Serial Communication
Servo ID available : 0 - 253
Communication Speed : 38400 bps - 1M bps
Feedback Type : Position, Temperature, Load, Speed, Voltage
Operating Voltage : 4.8V - 7.4V
Stall Torque (Kg.cm) : 17 (4.8V) - 19.5 (7.4V)
Stall Current : 1.5A (7.4V)
Speed (RPM) : 0.18 sec/60° (6V) - 0.15 sec/60°(8.4V)
Key Feature:
-Minimalist wiring
-Less occupied ports
-More precise control
-Feedback position, temperature, load, speed and voltage data
-Support TTL/RS485 communication protocol
-Protocol development interface
-Multi-mode operation (support servo mode and wheel mode)
-Dual-link (optional)
-Easy to group daisy-type wiring
-Bus connection theory up to 253 ID number
-High-precision(4096)
-Communication baud rate up to 1M.
-Customizable
