Servo

15kg Torque Smart Robot Servo SCS115 for STEM education Smart Serial Servo FEETECH SCS115

15kg Torque Smart Robot Servo SCS115 for STEM education Smart Serial Servo FEETECH SCS115
All Metal Gear S-bus Customizable 15kg Torque Digital RC Servo Humanoid Data feedback For DIY Robot Servo SCS115
Humanoid Robot Servo Feetech Motor SCS115 Servo 15kg.cm Dynamixel AX-12 for servo
Dynamixel AX-12A Standard Smart Servo 55g Serial Communication Robot Servo feetech SCS115 Best Advanced Robot Kits for Adults
Product Description

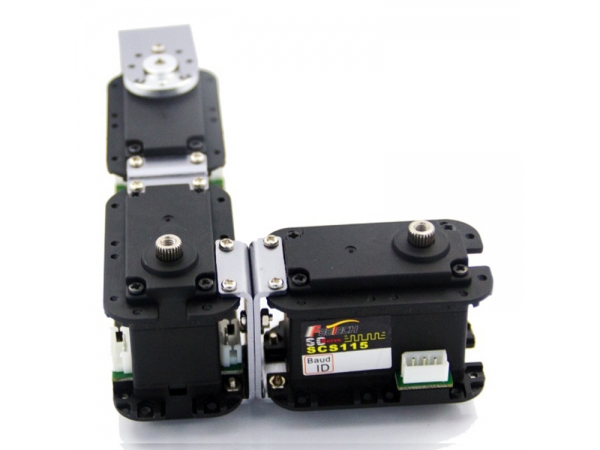

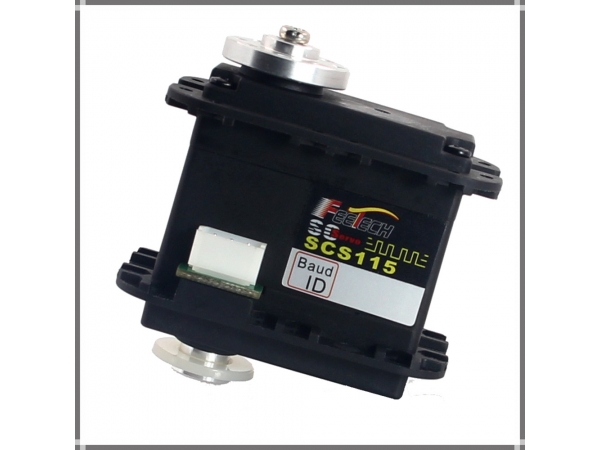

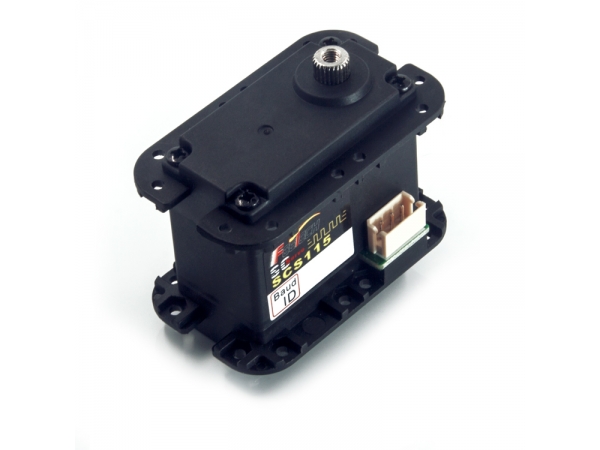

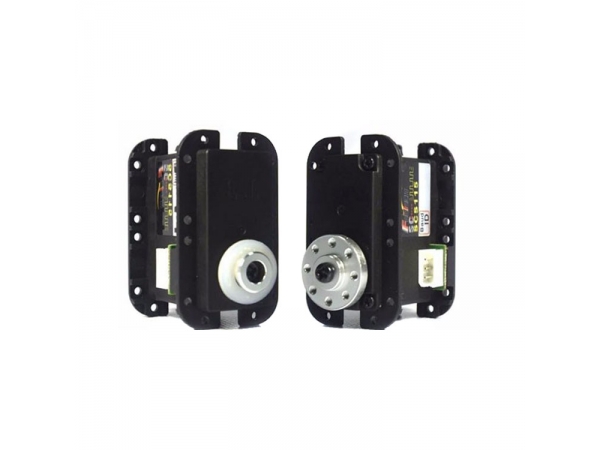

Feetech Smart Robot Servo SCS115
Dimensions:  40.0X20.0X39mm
Weight:  56g(1.98oz)
Gear Type(Ratio):  Metal(275:1)
Bus Interface:  TTL Level Multi Drop
Position Sensor:(Resolution)
Potentiometer:(215°/1024)
Operating Angle:200°(Servo Mode)
Control System:Bus Packet Communication
Protocol Type:Half duplex Asynchronous Serial Communication
ID:254 ID (0~253)
Communication Speed:38400bps ~ 1 Mbps
Feedback:Position, Temperature, Load, Speed, Input Voltage
Motor Type:Carbon
Bearing Type:2BB
Operating Voltage:6V~8.4V
Stall Torque(Kg.cm):15(6V) 16.5(7.4V) 17(8.4V)
Stall Current(A) :1.5A(7.4)
Operating Speed(RPM):55(6V) 65(7.4V) 73(8.4V)
Connector(Wire Length):3P&5264 (15cm)
  • 15kg Torque Smart Robot Servo SCS115 for STEM education Smart Serial Servo FEETECH SCS115
    All Metal Gear S-bus Customizable 15kg Torque Digital RC Servo Humanoid Data feedback For DIY Robot Servo SCS115
    Humanoid Robot Servo Feetech Motor SCS115 Servo 15kg.cm Dynamixel AX-12 for servo
    Dynamixel AX-12A Standard Smart Servo 55g Serial Communication Robot Servo feetech SCS115 Best Advanced Robot Kits for Adults
    Product Description
    Feetech Smart Robot Servo SCS115
    Dimensions:  40.0X20.0X39mm
    Weight:  56g(1.98oz)
    Gear Type(Ratio):  Metal(275:1)
    Bus Interface:  TTL Level Multi Drop
    Position Sensor:(Resolution)
    Potentiometer:(215°/1024)
    Operating Angle:200°(Servo Mode)
    Control System:Bus Packet Communication
    Protocol Type:Half duplex Asynchronous Serial Communication
    ID:254 ID (0~253)
    Communication Speed:38400bps ~ 1 Mbps
    Feedback:Position, Temperature, Load, Speed, Input Voltage
    Motor Type:Carbon
    Bearing Type:2BB
    Operating Voltage:6V~8.4V
    Stall Torque(Kg.cm):15(6V) 16.5(7.4V) 17(8.4V)
    Stall Current(A) :1.5A(7.4)
    Operating Speed(RPM):55(6V) 65(7.4V) 73(8.4V)
    Connector(Wire Length):3P&5264 (15cm)
