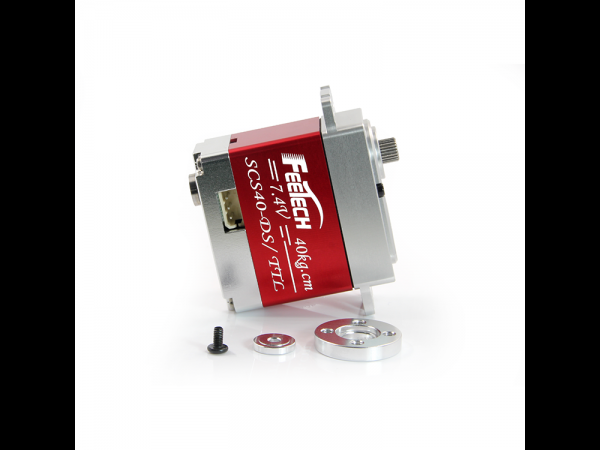

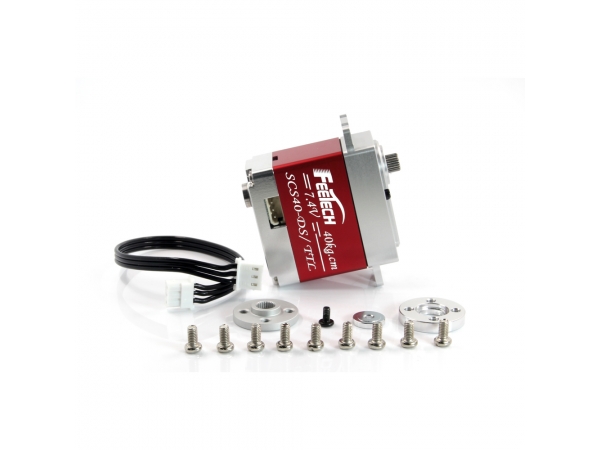

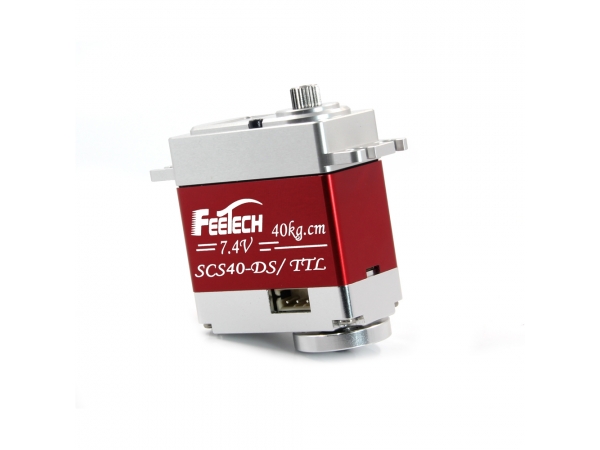

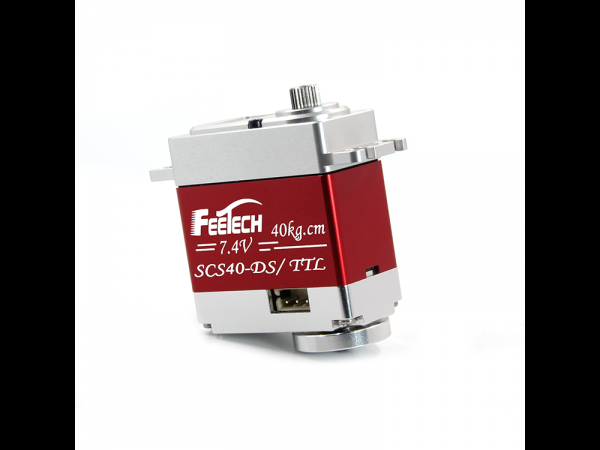

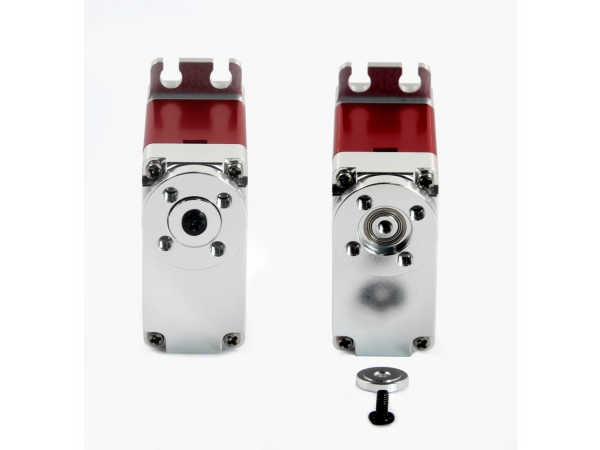

SCS40-DS Double Shaft Metal Case 40kg Torque Robot Arm Servo HV Coreless 8.4V Serial Bus Servo For Humanoid Robot

40kg 300 Degree High Torque Feedback RC Serial Bus Servo, Used For RC Robot Arm Humanoid Robot

SCS40-DS Double Shaft Metal Case 40kg Torque Robot Arm Servo HV Coreless 3D Print Double Axis TTL Actuator

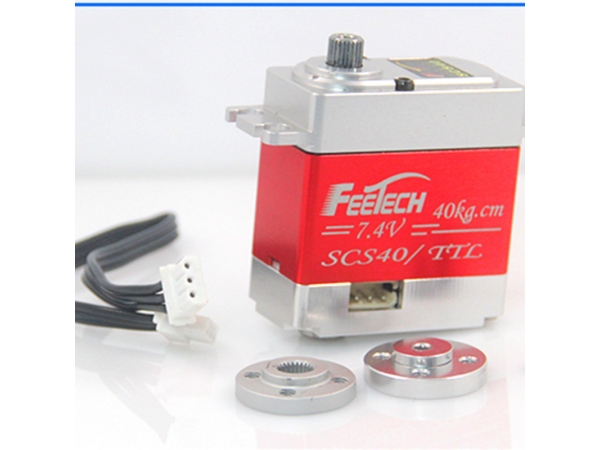

SCS40 Titanium Gear 40kg Torque Servo For Agricultural /Machinery/ IOT /Industry

Name：40KG double-shaft smart servo

size： 40.5*20*36mm

weight： 80g

motor type： coreless motor

Voltage range： 6-8.4V

Speed： 62.5RPM~8.4V

Stall Torque: 42.5kg.cm~8.4V

Rated Torque： 14kg.cm~7.4V

Degree:: 300°(when 0～1023)

Horn gear spline: 25T(4.95mm)

Angle limit: customization angle

Work mode:: Servo mode / motor mode

Protocol Type: Half duplex asynchronous serial communication

Feedback: Position / load / speed / temperature / voltage / current

Product performance description

1. Minimalist wiring and occupied port less 2.more precise control

3. feedback position, temperature, load, speed and voltage data

 4.support TTL/485 protocol / interface / protocol development mode (multi support mode and servo motor mode)

5.double link easy wiring / bus connection group of chrysanthemum theory can be up to 253 ID / high precision metal gear group / baud rate up to 1M. Customizable magnetic coding / high precision (4096 bit)
