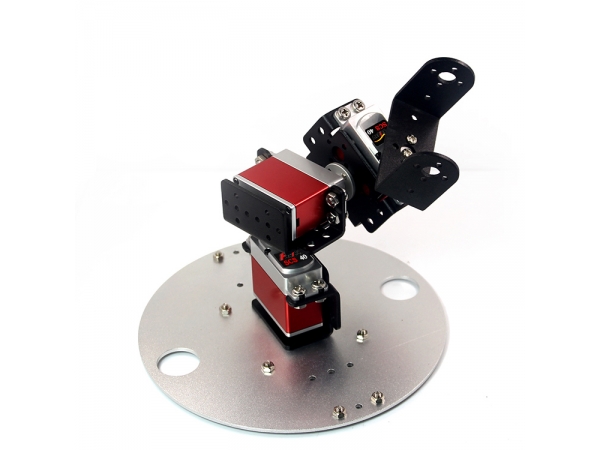

Industrial Equipment robot arm servo SCS40 serial bus 40kg coreless full metal servo

SCS40 Titanium Gear 40kg Torque Servo For Agricultural /Machinery/ IOT /Industry

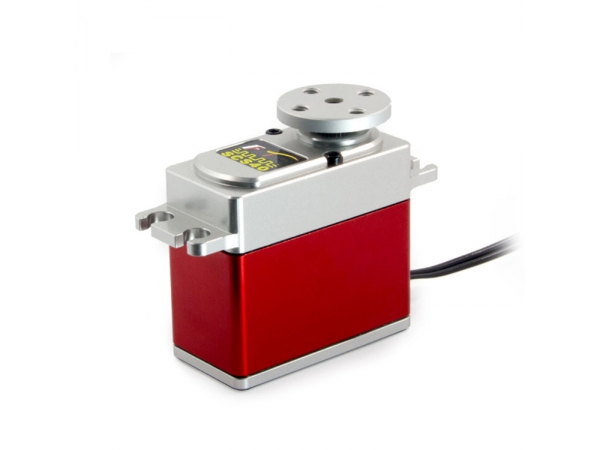

 SCS40 Serial Bus 40kg High Torque Full Metal Smart Robot Servo

TTL Serial bus Servo SCS40 for automatic curtain/intelligent lock

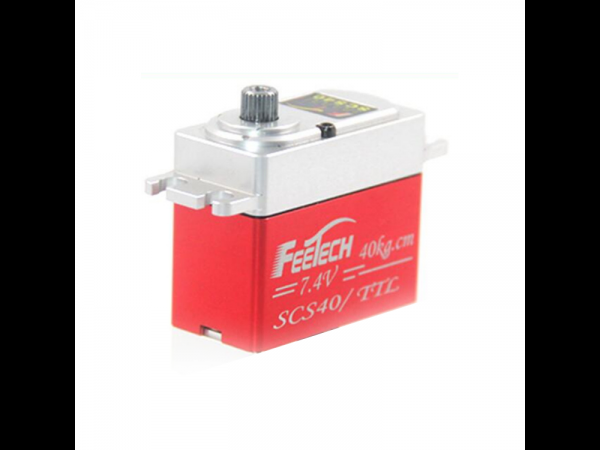

Name：40KG Single -shaft bus Smart servo

size： 40.5*20*36mm

weight： 75g

motor type： coreless motor

Voltage range： 6-8.4V

Speed： 62.5RPM~8.4V

Stall Torque: 42.5kg.cm~8.4V

Rated Torque： 14kg.cm~7.4V

Degree:: 300°(when 0～1023)

Horn gear spline: 25T(4.95mm)

Angle limit: customization angle

Work mode:: Servo mode / motor mode

Protocol Type: Half duplex asynchronous serial communication

Feedback: Position / load / speed / temperature / voltage / current

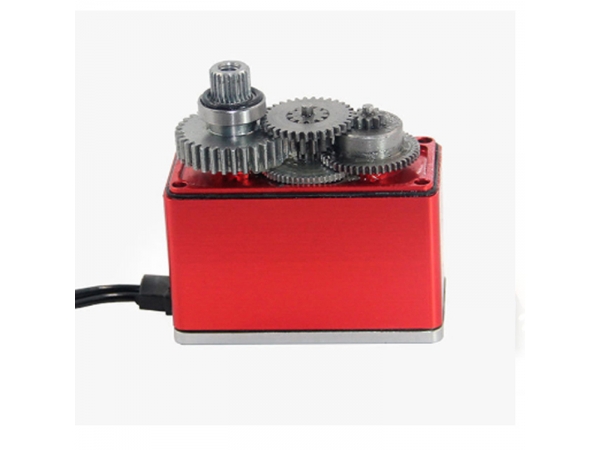

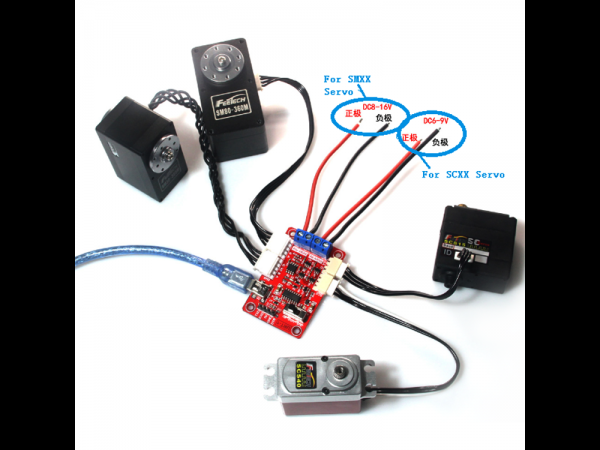

Minimalist wiring / occupied port less / more precise control / feedback position, temperature, load, speed and voltage data / support TTL/485 protocol / interface / protocol development mode (multi support mode and servo motor mode) / double link easy wiring / bus connection group of chrysanthemum theory can be up to 253 ID / high precision metal gear group / baud rate up to 1M. Customizable magnetic coding / high precision (4096 bit)



The advantage of Serial bus servo:

1.Beautiful wiring structure,

2.Easy to control signal,

3.real-time feedback of position,tempreture,speed,voltage,Current data,

4.Less occupied port.

5.Digital transmission signal is

Flexible, convenient, reliable and good compatibility

6.intercommunication;

Now PWM is Simulate Transmission,Pulse width variation stand for control vector,so easily interfered by the outside world.
