Servo

SCS009 hexapod robot servo Arduinos Engineer Project Smart Robot humanoid DIY STEAM Education

SCS009 hexapod robot servo Arduinos Engineer Project Smart Robot humanoid DIY STEAM Education

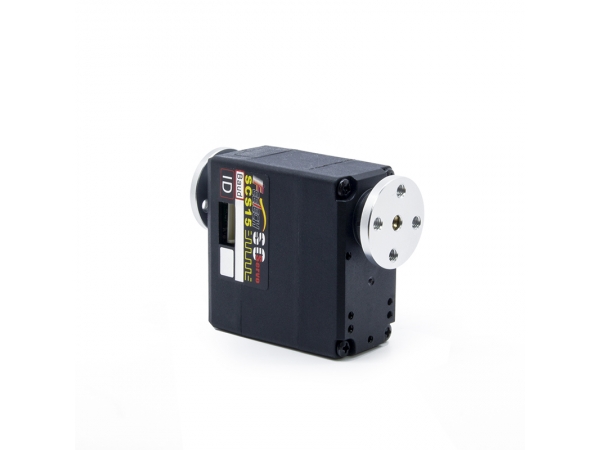

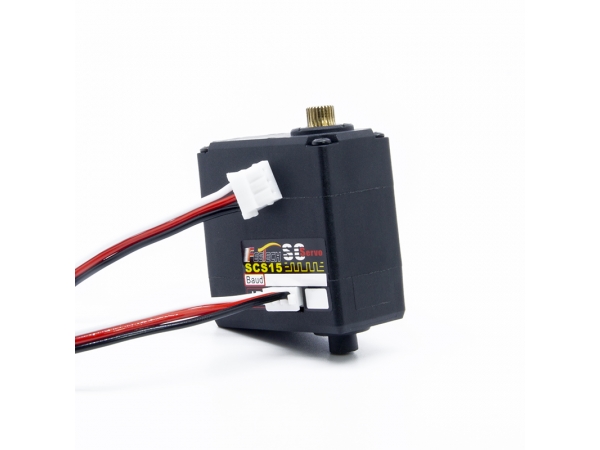

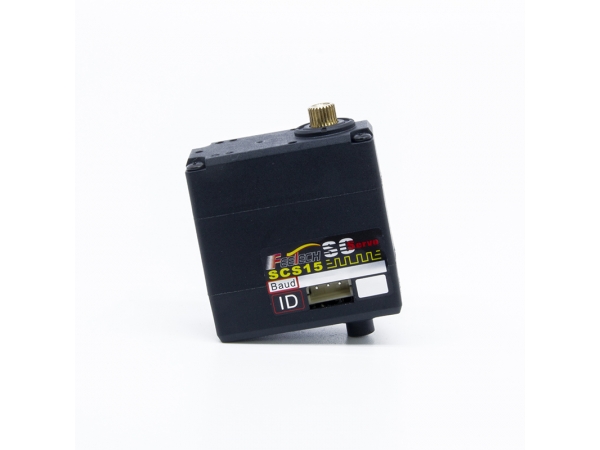

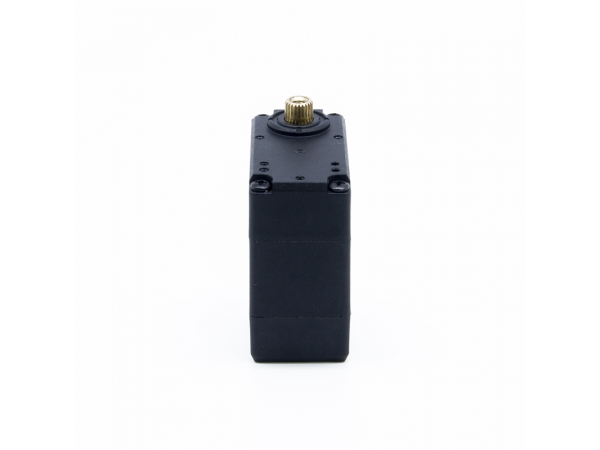

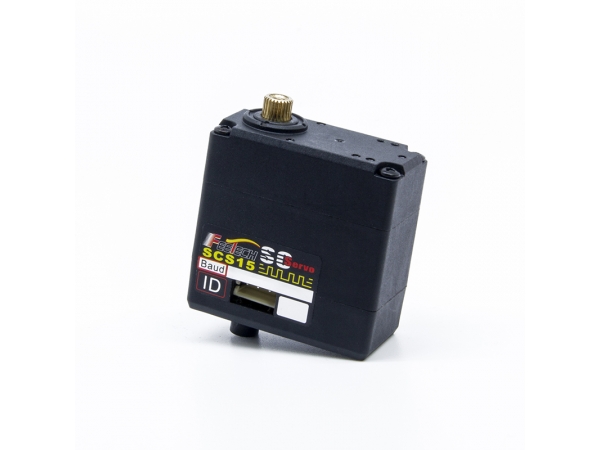

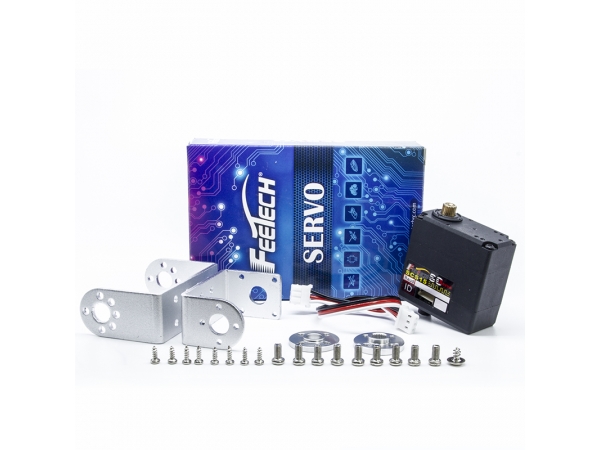

15kg SCservo Daisy Chain Dual Mode Smart Servo For Robot DIY SCS15
T-SCServo 15kg Be Controlled By Arduin Servo SCS15 SCServo 15kg DIY Robot Servo Feetech SCS15
15kg DIY Smart Robot Servo Feetech SCS15 For Humanoid Robot Arm Legs
SCS15 Servo 10cm 3 Pin Cable for SCS smart control RC Servo
Specifications
Dimensions : 40.0 x 20.0 x 40.5 mm
Weight : 56g
Operating Angle : 200 Deg. servo mode (or continuous rotation when set to wheel mode)
Bus Interface : TTL Level Multi Drop
Control Type : Bus Packet Communication
Control Protocol : Half Duplex Asynchronous Serial Communication
Servo ID available : 0 - 253
Communication Speed : 38400 bps - 1M bps
Feedback Type : Position, Temperature, Load, Speed, Voltage
Operating Voltage : 6.0V - 8.4V
Stall Torque (Kg.cm) : 15 (6V) - 17 (8.4V)
Stall Current : 1.5A (7.4V)
Speed  (RPM) : 55 (6V) - 73 (8.4V)
  • SCS009 hexapod robot servo Arduinos Engineer Project Smart Robot humanoid DIY STEAM Education
    15kg SCservo Daisy Chain Dual Mode Smart Servo For Robot DIY SCS15
    T-SCServo 15kg Be Controlled By Arduin Servo SCS15 SCServo 15kg DIY Robot Servo Feetech SCS15
    15kg DIY Smart Robot Servo Feetech SCS15 For Humanoid Robot Arm Legs
    SCS15 Servo 10cm 3 Pin Cable for SCS smart control RC Servo
    Specifications
    Dimensions : 40.0 x 20.0 x 40.5 mm
    Weight : 56g
    Operating Angle : 200 Deg. servo mode (or continuous rotation when set to wheel mode)
    Bus Interface : TTL Level Multi Drop
    Control Type : Bus Packet Communication
    Control Protocol : Half Duplex Asynchronous Serial Communication
    Servo ID available : 0 - 253
    Communication Speed : 38400 bps - 1M bps
    Feedback Type : Position, Temperature, Load, Speed, Voltage
    Operating Voltage : 6.0V - 8.4V
    Stall Torque (Kg.cm) : 15 (6V) - 17 (8.4V)
    Stall Current : 1.5A (7.4V)
    Speed  (RPM) : 55 (6V) - 73 (8.4V)
