Servo

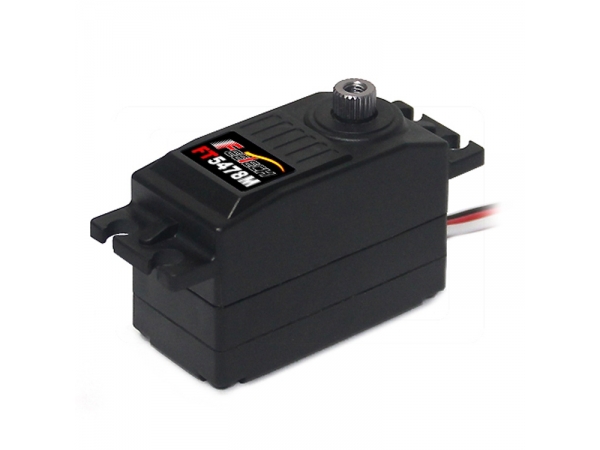

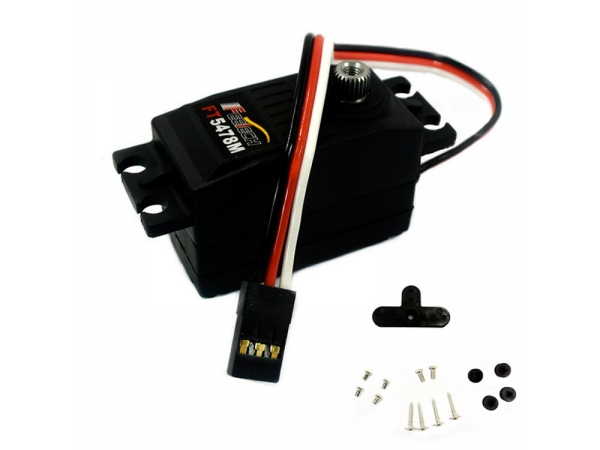

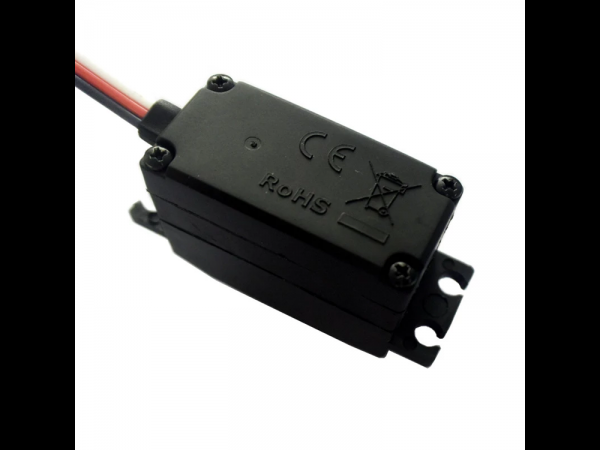

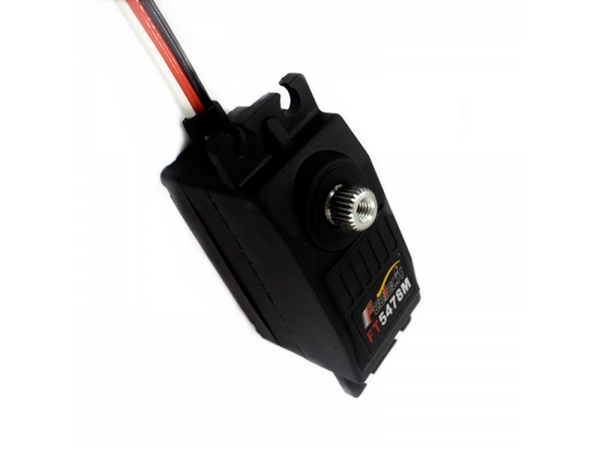

FT5478M Waterproof Digital Low Profile Metal Gear 9kg Baja Car Servo RC Toys For 1/10 Ep/Gp on Road Car X-maxx

FT5478M Waterproof Digital Low Profile Metal Gear 9kg Baja Car Servo RC Toys For 1/10 Ep/Gp on Road Car X-maxx
Rc Car Drift Rc Car Tamiya 1/10 Car Servos Feetech FT5478M Tamiya Model Rc Car Online Brake Servo Feetech FT5478M
FT5478M traxx rc cars 10kg servo digital servo baja servo cars RC Toys
FT5478M 10kg Torque rc drift RC Servo RC Robot Arm Heli Plane FT5478M Low Profile 1 10 rc car Servo Motor For Traxxas/HPI racing/Kyosho/Tamiya
Parameter：
SKU: FT5478M

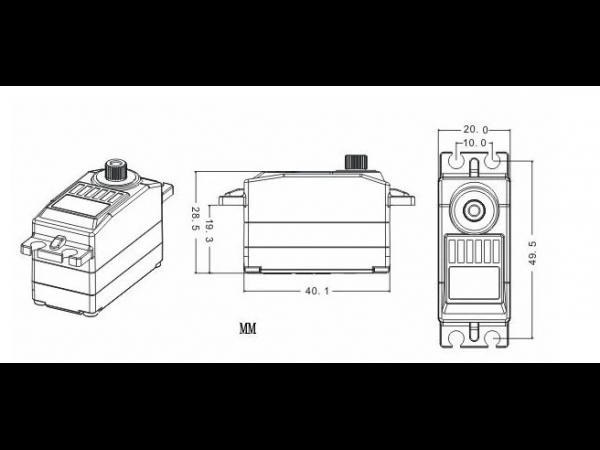

Size: 40.1*20.0*28.5mm
Weight: 36.5g（1.28oz）
Gear type: Metal Gear
Limit angle: 220°
Bearing: 2 Ball bearings
Horn gear spline: 25T
Horn type: Plastic,POM
Case: Engineering plastics
Connector wire: 150MM
Motor: Coreless motor
Splash water resistance：Yes
Operating Voltage Range: 4.8-6V
No load speed: 0.1sec/60°@6V
Running current(at no load) : 150 mA@6V
Peak stall torque: 9kg.cm@6V
Rated torque: 3kg.cm@6V
Stall current: 2200mA@6V
Pulse width range: 900~ 2100usec
Neutral position: 1500 μsec
Running degree: 120° (when 900～2100 µ sec)
  • FT5478M Waterproof Digital Low Profile Metal Gear 9kg Baja Car Servo RC Toys For 1/10 Ep/Gp on Road Car X-maxx
    Rc Car Drift Rc Car Tamiya 1/10 Car Servos Feetech FT5478M Tamiya Model Rc Car Online Brake Servo Feetech FT5478M
    FT5478M traxx rc cars 10kg servo digital servo baja servo cars RC Toys
    FT5478M 10kg Torque rc drift RC Servo RC Robot Arm Heli Plane FT5478M Low Profile 1 10 rc car Servo Motor For Traxxas/HPI racing/Kyosho/Tamiya
    Parameter：
    SKU: FT5478M
    Size: 40.1*20.0*28.5mm
    Weight: 36.5g（1.28oz）
    Gear type: Metal Gear
    Limit angle: 220°
    Bearing: 2 Ball bearings
    Horn gear spline: 25T
    Horn type: Plastic,POM
    Case: Engineering plastics
    Connector wire: 150MM
    Motor: Coreless motor
    Splash water resistance：Yes
    Operating Voltage Range: 4.8-6V
    No load speed: 0.1sec/60°@6V
    Running current(at no load) : 150 mA@6V
    Peak stall torque: 9kg.cm@6V
    Rated torque: 3kg.cm@6V
    Stall current: 2200mA@6V
    Pulse width range: 900~ 2100usec
    Neutral position: 1500 μsec
    Running degree: 120° (when 900～2100 µ sec)
