Servo

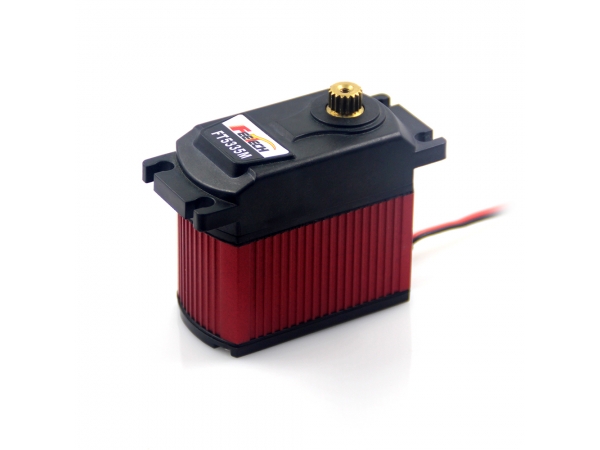

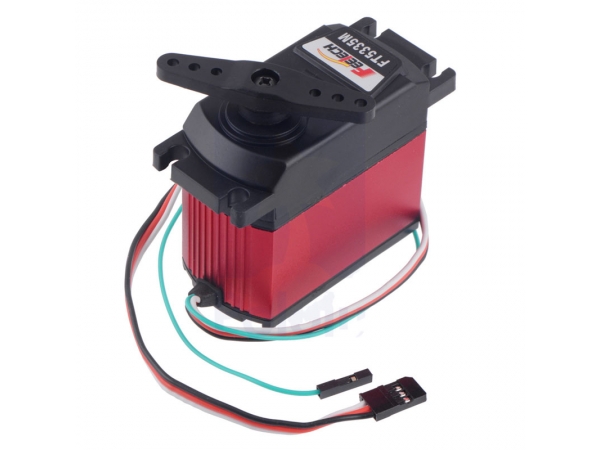

FT5335M High Torque 40kg Metal Gear Digital Large RC Servo Smart lamp Switch Servo

FT5335M High Torque 40kg Metal Gear Digital Large RC Servo Smart lamp Switch Servo
FT5335M Large RC Servo 30kg Metal Gears Industrial servo
FT5335M 35 kg large torque digital metal servo for 1:5 scale car
FT5335M High Torque 40kg RC Servo Motor 7.4V Metal Gear Digital Servo
Parameter :
SKU: FT5335M
Size: 62.8*32.5*55.9mm
Weight:178g ±0.2

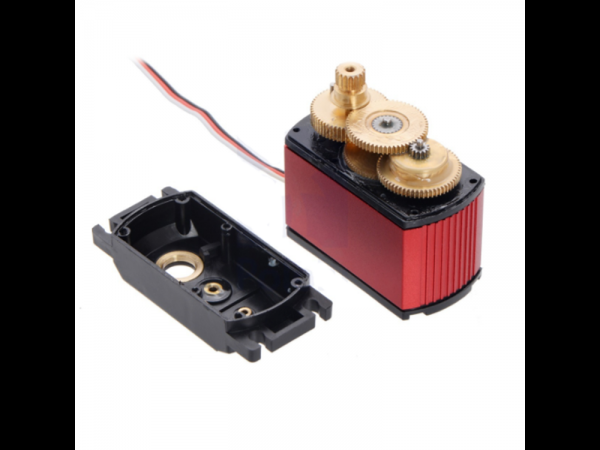

Gear type: Metal Gear
Limit angle: 180degree
Bearing: 2BB
Horn gear spline: 25T(5.8mm)

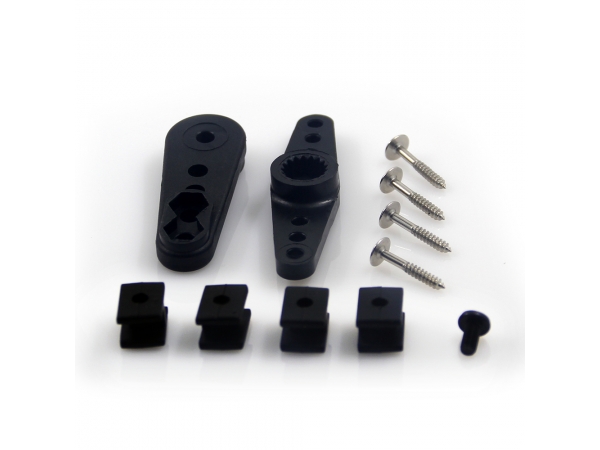

Horn type: Plastic,POM
Case: Engineering plastics+Aluminium

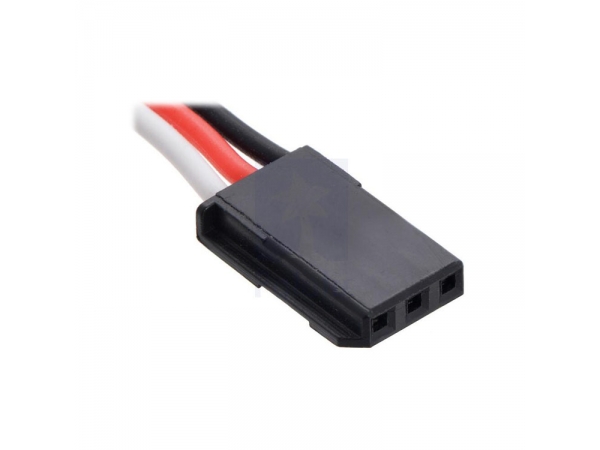

Connector wire: 300mm ±5 mm
Motor: Core motor
Splash water resistance: NO
Operating Voltage Range: 6-8.4V
No load speed: 0.18sec/60°@6V
Peak stall torque: 40.5kg.cm@6V
Rated torque: 13.5kg.cm@6V
Stall current: 2400mA@6V
Pulse width range: 900~ 2100usec
Neutral position: 1500 μsec
Running degree: 120° (when 900～2100 µ sec)
  • FT5335M High Torque 40kg Metal Gear Digital Large RC Servo Smart lamp Switch Servo
    FT5335M Large RC Servo 30kg Metal Gears Industrial servo
    FT5335M 35 kg large torque digital metal servo for 1:5 scale car
    FT5335M High Torque 40kg RC Servo Motor 7.4V Metal Gear Digital Servo
    Parameter :
    SKU: FT5335M
    Size: 62.8*32.5*55.9mm
    Weight:178g ±0.2
    Gear type: Metal Gear
    Limit angle: 180degree
    Bearing: 2BB
    Horn gear spline: 25T(5.8mm)
    Horn type: Plastic,POM
    Case: Engineering plastics+Aluminium
    Connector wire: 300mm ±5 mm
    Motor: Core motor
    Splash water resistance: NO
    Operating Voltage Range: 6-8.4V
    No load speed: 0.18sec/60°@6V
    Peak stall torque: 40.5kg.cm@6V
    Rated torque: 13.5kg.cm@6V
    Stall current: 2400mA@6V
    Pulse width range: 900~ 2100usec
    Neutral position: 1500 μsec
    Running degree: 120° (when 900～2100 µ sec)
