Servo

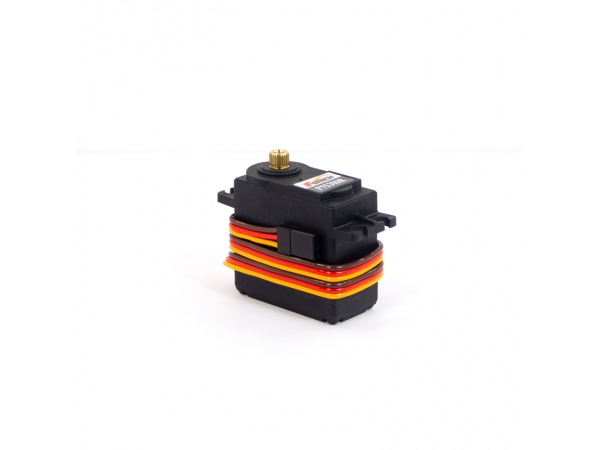

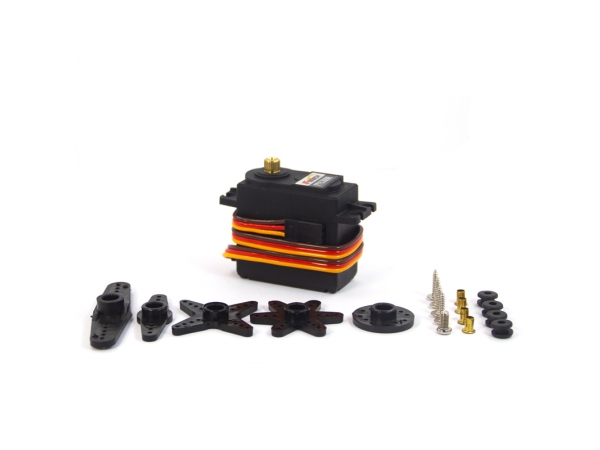

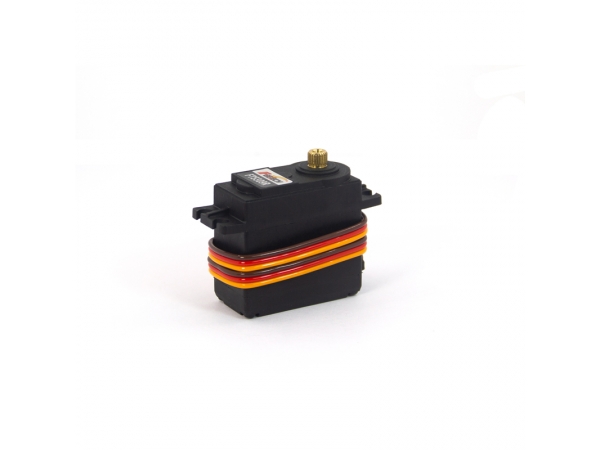

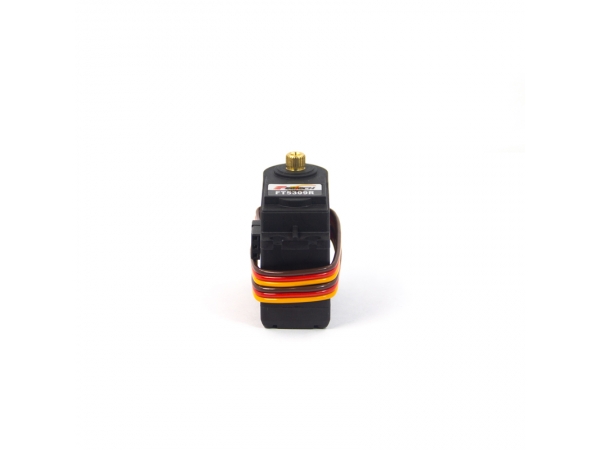

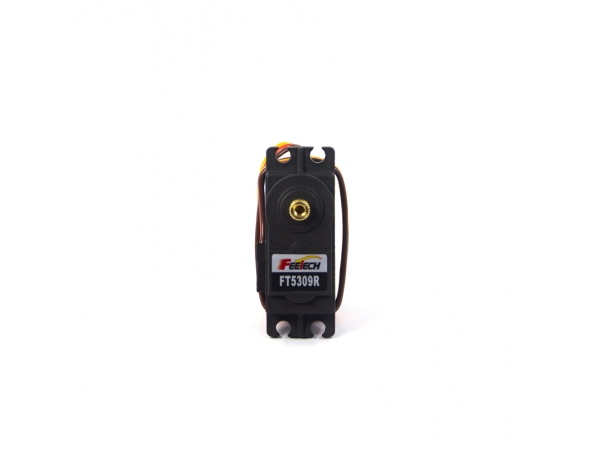

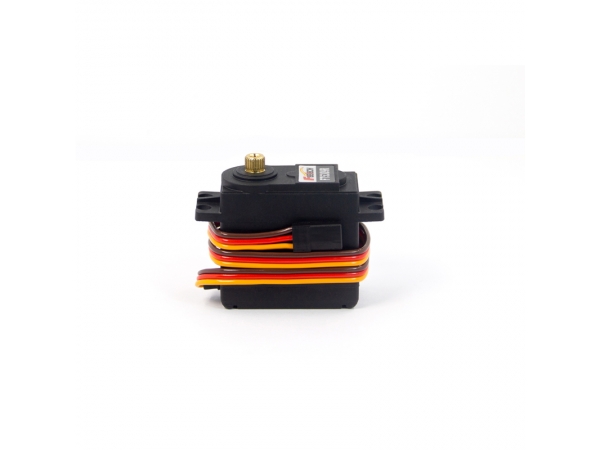

6V 10.5KG cm 160RPM Digital High Speed Continuous Rotation Servo Standard Size FT5309R

6V 10.5KG cm 160RPM Digital High Speed Continuous Rotation Servo Standard Size FT5309R
 FT5309R 6V 9 kg Torque Arduinos control 360 Degree Continuous Rotation Digital Servo
FT5309R Continuous Turn Digital High Voltage 9kg Servo 1:8/1:10 For RC Robot Boat Truck
9KG 360 Degree Continuous Rotation Digital micro servo micro bit car for school children robot Micro Python
Products Description
Product Name: 9kg continuous turn digital servo FT5309R
Model： FT5309R
Size: 40.15*20.15*38.95*54 mm
Weight: 59g
Gear type: Copper Gear(Gear Ratio=135:1)
Limit angle: NO limit
Bearing: NO Ball bearings
Horn gear spline: 25T(OD5.96mm)
Horn type: Plastic,POM
Case: Nylon & Fiberglass
Connector wire: 300mm ±5 mm（ JR）(Brown ,Red and Orange)
Motor: Metal brush motor
Operating Voltage Range: 4.8-6V
Idle current(at stopped): 5mA
No load speed: 110RPM@6V
Running current(at no load) : 210 mA @6V
Peak stall torque: 9.5kg.cm@6V
Rated torque: 3kg.cm@6V
Stall current: 2200mA@6V
Running degree: 360°Continuous rotation
  • 6V 10.5KG cm 160RPM Digital High Speed Continuous Rotation Servo Standard Size FT5309R
     FT5309R 6V 9 kg Torque Arduinos control 360 Degree Continuous Rotation Digital Servo
    FT5309R Continuous Turn Digital High Voltage 9kg Servo 1:8/1:10 For RC Robot Boat Truck
    9KG 360 Degree Continuous Rotation Digital micro servo micro bit car for school children robot Micro Python
    Products Description
    Product Name: 9kg continuous turn digital servo FT5309R
    Model： FT5309R
    Size: 40.15*20.15*38.95*54 mm
    Weight: 59g
    Gear type: Copper Gear(Gear Ratio=135:1)
    Limit angle: NO limit
    Bearing: NO Ball bearings
    Horn gear spline: 25T(OD5.96mm)
    Horn type: Plastic,POM
    Case: Nylon & Fiberglass
    Connector wire: 300mm ±5 mm（ JR）(Brown ,Red and Orange)
    Motor: Metal brush motor
    Operating Voltage Range: 4.8-6V
    Idle current(at stopped): 5mA
    No load speed: 110RPM@6V
    Running current(at no load) : 210 mA @6V
    Peak stall torque: 9.5kg.cm@6V
    Rated torque: 3kg.cm@6V
    Stall current: 2200mA@6V
    Running degree: 360°Continuous rotation
