Servo

Metal Gear Micro 9G 3.5KG Mini Coreless Servo Motor 200 Degree Digital Servo For Micro Bit RC Helicopter RC Education Robot

4V-7.4V Micro Size 1.8 kg.cm Digital 280 Large Angle Rotation Plastic Case Plastic Gear Core Motor 9g servo
Original Servo Micro Servo Mini Size 9g 1.8KG Servo Motor for Rc Helicopter Drone Boat Car MG90 9G Trex 450 RC Robot Helicopter
Micro Servo SG90 Steering Gear 280 Degree Large Angle Control 9 g for RC Car Airplane Helicopter Quadcopter Buggy
Mechanical Specification:

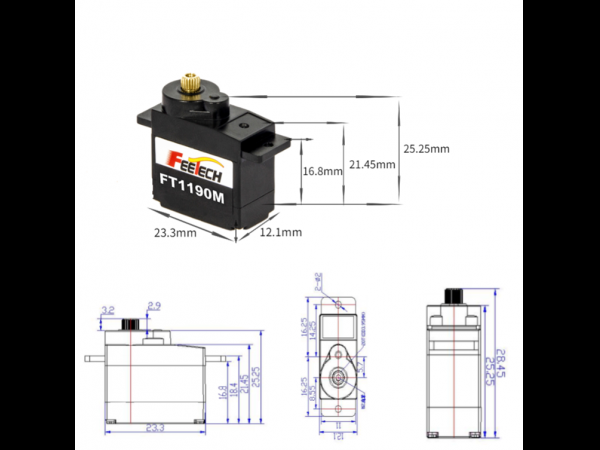

Size: 23.2*12.1*25,25mm
Weight: 13.5g
Case: PC Plastic
Gearbox: Metal gearbox
Gearbox ratio: 1/416
Motor: Coreless motor
Wire: 25cm JR Connector
Horn gear spline: 20T/3.95mm
Running degree: 220° (at 500 → 2500 μsec)
Electrical specification:
Voltage: 4.8-6V
Speed: 0.1 sec/60°/6V
Current: 170mA (no load)
Stall Current: 1100mA (at locked)
Idle current: 6mA (at stop)
Stall torque: 3.5 KG. CM/6V
Nominal torque: 1.16 KG. CM/6V
KT constant: 3.2 kg.cm/A
Pulse wide range: 500 → 2500 μsec
Test Life :100000 cycles Min
Electronic protection: Stall 4sec
  • 4V-7.4V Micro Size 1.8 kg.cm Digital 280 Large Angle Rotation Plastic Case Plastic Gear Core Motor 9g servo
    Original Servo Micro Servo Mini Size 9g 1.8KG Servo Motor for Rc Helicopter Drone Boat Car MG90 9G Trex 450 RC Robot Helicopter
    Micro Servo SG90 Steering Gear 280 Degree Large Angle Control 9 g for RC Car Airplane Helicopter Quadcopter Buggy
    Mechanical Specification:
    Size: 23.2*12.1*25,25mm
    Weight: 13.5g
    Case: PC Plastic
    Gearbox: Metal gearbox
    Gearbox ratio: 1/416
    Motor: Coreless motor
    Wire: 25cm JR Connector
    Horn gear spline: 20T/3.95mm
    Running degree: 220° (at 500 → 2500 μsec)
    Electrical specification:
    Voltage: 4.8-6V
    Speed: 0.1 sec/60°/6V
    Current: 170mA (no load)
    Stall Current: 1100mA (at locked)
    Idle current: 6mA (at stop)
    Stall torque: 3.5 KG. CM/6V
    Nominal torque: 1.16 KG. CM/6V
    KT constant: 3.2 kg.cm/A
    Pulse wide range: 500 → 2500 μsec
    Test Life :100000 cycles Min
    Electronic protection: Stall 4sec
