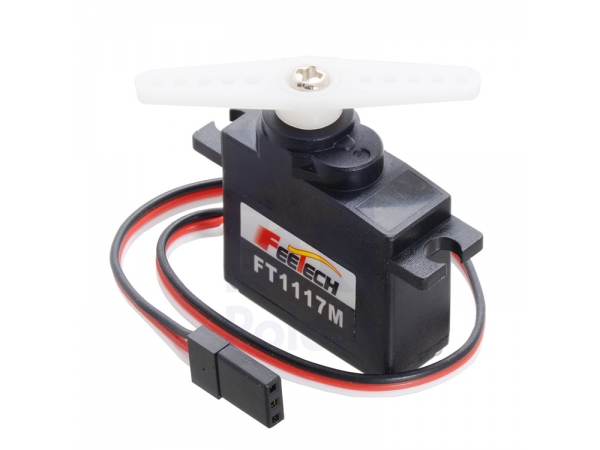

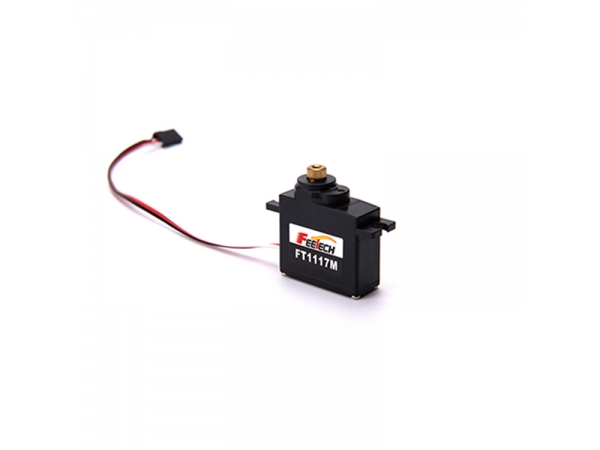

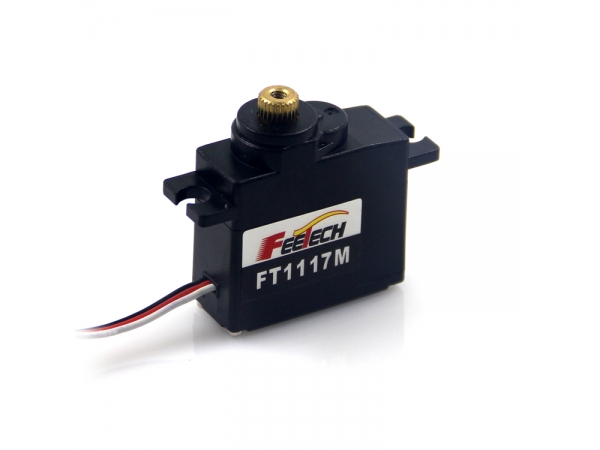

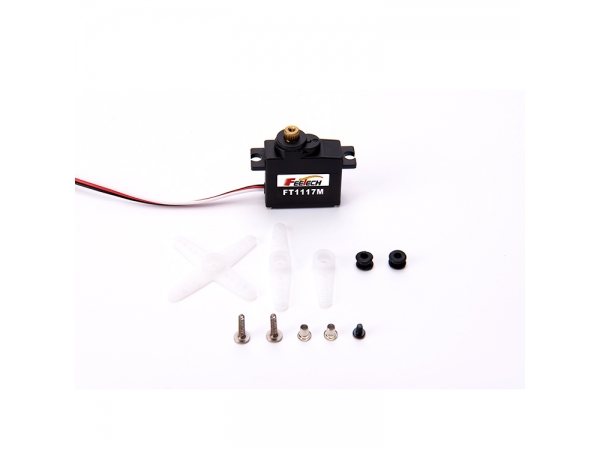

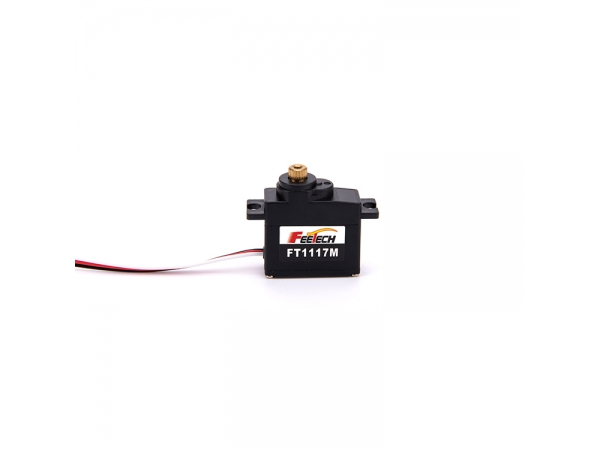

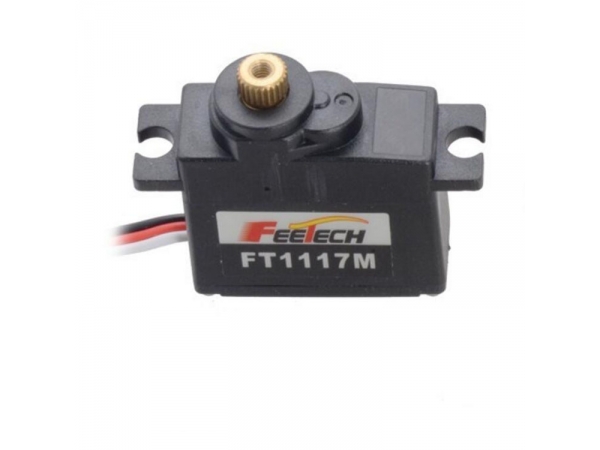

17g 3kg Small Servo Output Spline Same As Standard Servo FT1117M

3.5kg 17g Mini Miniature-sized Servo Output Spline Same As Standard Servo FT1117M

3.5kg Torque Micro Metal Gear Servo FT1117M for STEM Robot Car

Digital High Speed High Torque Servo Mini Servo FT1117M

Mechanical Specification

Size: A:30mm B:12mm C:31.7mm

Weight: 20g ±0.2

Gear type: Metal Gear

Limit angle: 200degree

Bearing: NO Ball bearings

Horn gear spline: 25T(5.8mm)

Horn type :Plastic,POM

Case: ABS

Connector wire: 180mm ±5 mm

Motor: Core motor

Splash water resistance: NO

Electrical Specification (Function of the Performance)

1 Idle current(at stopped): 5mA(4.8V) 6mA (6V)

2 No load speed: 0.13sec/60degree(4.8V) 0.11sec/60degree(6V)

3 Runnig current(at no load): 130 mA(4.8V) 150 mA (6V)

4 Peak stall torque: 3kg.cm(4.8V) 3.5kg.cm (6V)

5 Stall current: 700 mA(4.8V) 800mA (6V)

3.5kg 17g Mini Miniature-sized Servo Output Spline Same As Standard Servo FT1117M

3.5kg Torque Micro Metal Gear Servo FT1117M for STEM Robot Car

Digital High Speed High Torque Servo Mini Servo FT1117M

Mechanical Specification

Size: A:30mm B:12mm C:31.7mm

Weight: 20g ±0.2

Gear type: Metal Gear

Limit angle: 200degree

Bearing: NO Ball bearings

Horn gear spline: 25T(5.8mm)

Horn type :Plastic,POM

Case: ABS

Connector wire: 180mm ±5 mm

Motor: Core motor

Splash water resistance: NO

Electrical Specification (Function of the Performance)

1 Idle current(at stopped): 5mA(4.8V) 6mA (6V)

2 No load speed: 0.13sec/60degree(4.8V) 0.11sec/60degree(6V)

3 Runnig current(at no load): 130 mA(4.8V) 150 mA (6V)

4 Peak stall torque: 3kg.cm(4.8V) 3.5kg.cm (6V)

5 Stall current: 700 mA(4.8V) 800mA (6V)
