Servo

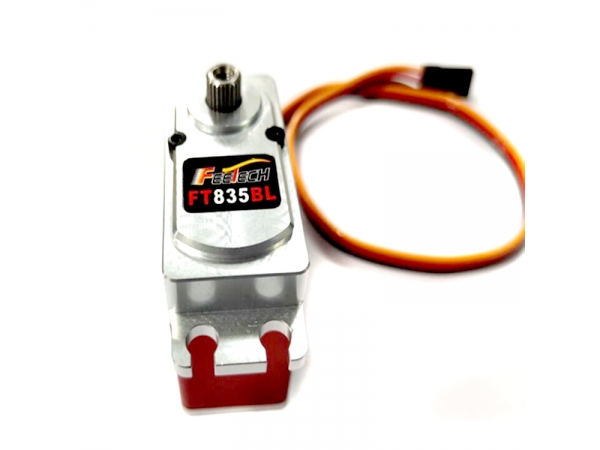

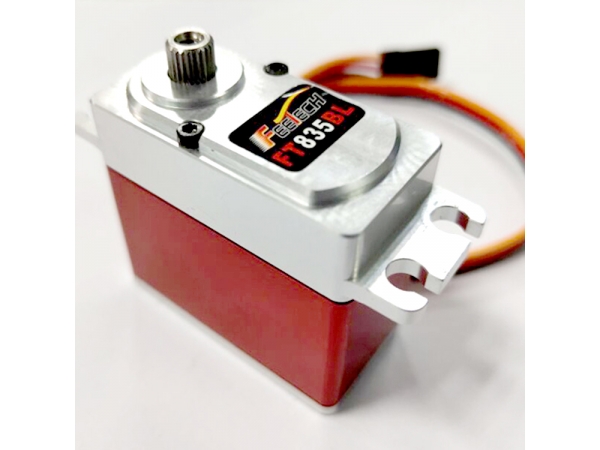

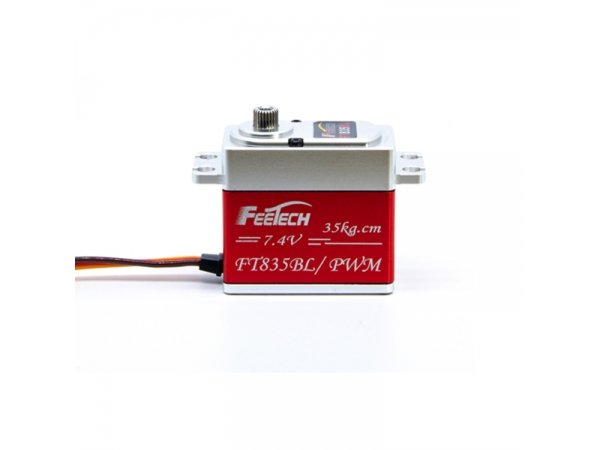

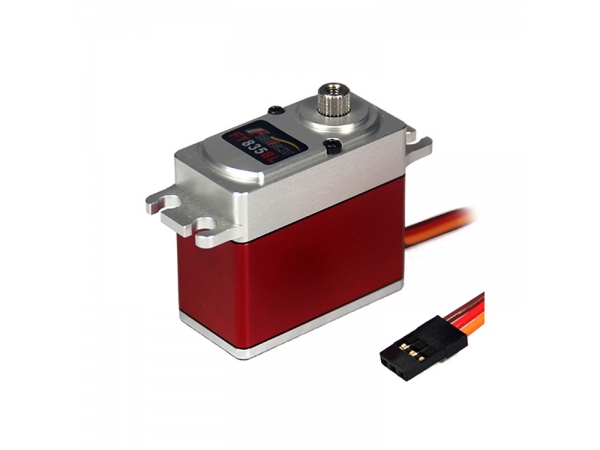

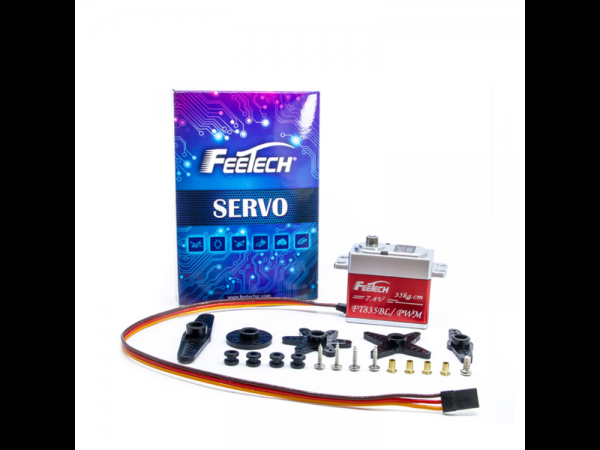

FT835BL 30KG torque Digital aluminum case rc servo for RC robot arm

Rohs Standard RC servo Feetech FT835BL 35KG 180 degree High Precision Metal Gear High Voltage Digital Brushless for Rc Robot car
Mechanical Specification

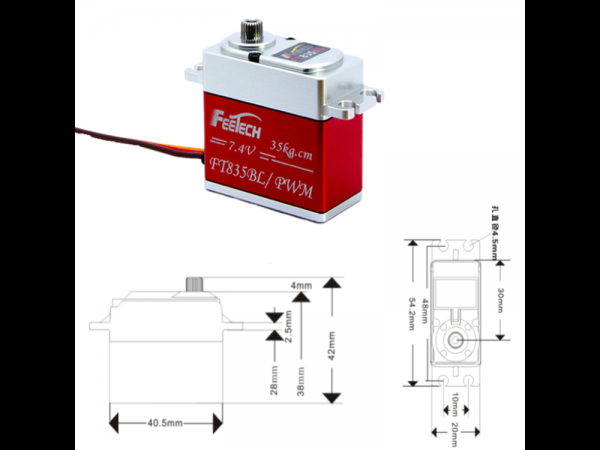

Size; A:40.5mm B:20.5mm C:36mm
Weight: 72g ±0.2(2.54oz)
Gear type: Durable Steel Gear
Limit angle: 210°±5°
Bearing: 2 Ball bearings
Horn gear spline: 25T
Horn type: Plastic,POM
Case: Engineering plastics & Aluminium
Connector wire:  300mm ±5 mm
Motor: Brushless motor
Splash water resistance: Yes
Control Specification
Command signal: Pulse width modification
Amplifier type: Digital Controller
Pulse width range: 900~2100µsec
Neutral position: 1500 µsec
Running degree: 120°(when 900~2100 µ sec)
Dead band width: 2 µsec
Rotating direction: Counterclockwise   (when 1000~2000 µsec
  • Rohs Standard RC servo Feetech FT835BL 35KG 180 degree High Precision Metal Gear High Voltage Digital Brushless for Rc Robot car
    Mechanical Specification
    Size; A:40.5mm B:20.5mm C:36mm
    Weight: 72g ±0.2(2.54oz)
    Gear type: Durable Steel Gear
    Limit angle: 210°±5°
    Bearing: 2 Ball bearings
    Horn gear spline: 25T
    Horn type: Plastic,POM
    Case: Engineering plastics & Aluminium
    Connector wire:  300mm ±5 mm
    Motor: Brushless motor
    Splash water resistance: Yes
    Control Specification
    Command signal: Pulse width modification
    Amplifier type: Digital Controller
    Pulse width range: 900~2100µsec
    Neutral position: 1500 µsec
    Running degree: 120°(when 900~2100 µ sec)
    Dead band width: 2 µsec
    Rotating direction: Counterclockwise   (when 1000~2000 µsec
