Servo

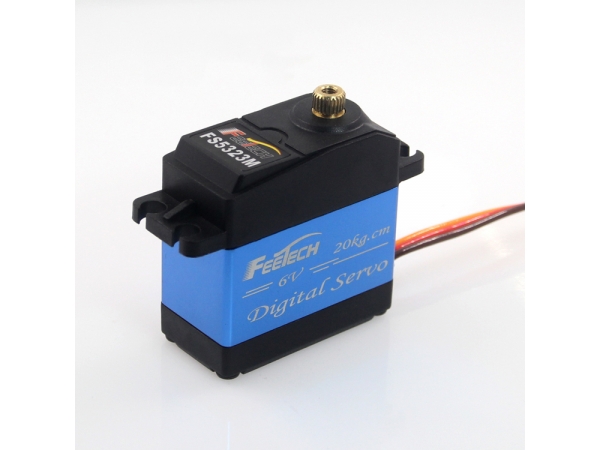

New 20KG High Torque Aluminum Case Metal Gears Digital RC Servo FS5323M

NEW 20kg High Torque Aluminum Middle Case Metal Gears Digital Servo FS5323M
20kg High torque FS5323M Digital Metal case Rc servo 20kg/56g/0.16 Sec for boat,airplane,tank
FS5323M Metal Gear High Torque Digital Waterproof Servo RC Hobby Crawler Truck Robotic Education
Mechanical Specification
1 Size A:40mm B:20mm C:40.4mm
2 Weight 67g

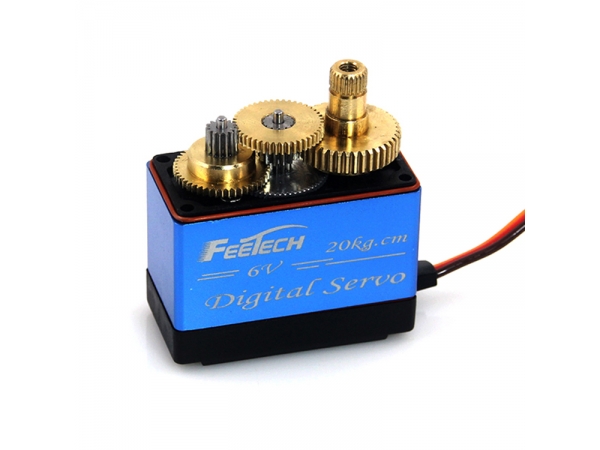

3 Gear type Metal Gear
4 Limit angle No Limit
5 Bearing 2 Ball bearings

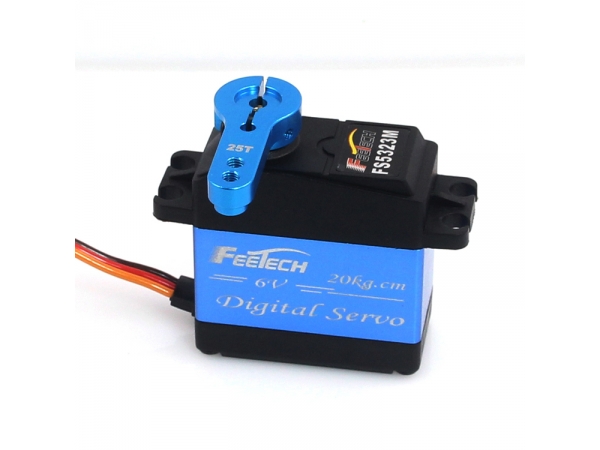

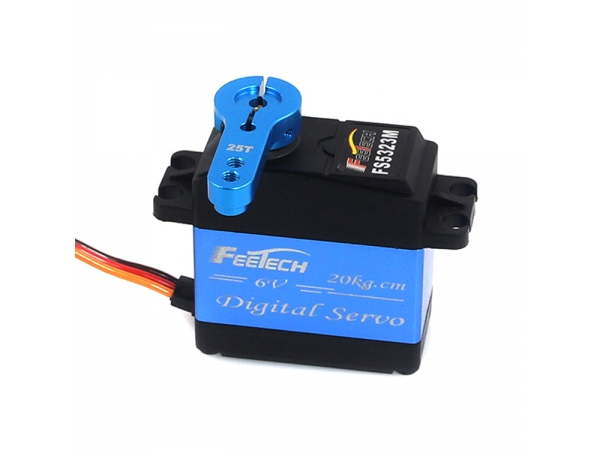

6 Horn gear spline 25T
7 Horn type Plastic,POM
8 Case Engineering plastics & Aluminium
9 Connector wire 300mm ±5 mm
10 Motor Metal brush motor
11 Splash water resistance NO
Features
-Standard digital metal gears servo,2BB
-Metal brush motor,Aluminium middle hull
-Wire length: 30cm
Specifications
Power 4.8V 6V
Speed 0.22sec/60° 0.16sec/60°
Torque 19kg.cm/ 263.8oz.in 21.5kg.cm/298.5 oz.in
Weight 56g (1.46oz)
Size 40*20.*40.4mm
  • NEW 20kg High Torque Aluminum Middle Case Metal Gears Digital Servo FS5323M
    20kg High torque FS5323M Digital Metal case Rc servo 20kg/56g/0.16 Sec for boat,airplane,tank
    FS5323M Metal Gear High Torque Digital Waterproof Servo RC Hobby Crawler Truck Robotic Education
    Mechanical Specification
    1 Size A:40mm B:20mm C:40.4mm
    2 Weight 67g
    3 Gear type Metal Gear
    4 Limit angle No Limit
    5 Bearing 2 Ball bearings
    6 Horn gear spline 25T
    7 Horn type Plastic,POM
    8 Case Engineering plastics & Aluminium
    9 Connector wire 300mm ±5 mm
    10 Motor Metal brush motor
    11 Splash water resistance NO
    Features
    -Standard digital metal gears servo,2BB
    -Metal brush motor,Aluminium middle hull
    -Wire length: 30cm
    Specifications
    Power 4.8V 6V
    Speed 0.22sec/60° 0.16sec/60°
    Torque 19kg.cm/ 263.8oz.in 21.5kg.cm/298.5 oz.in
    Weight 56g (1.46oz)
    Size 40*20.*40.4mm
