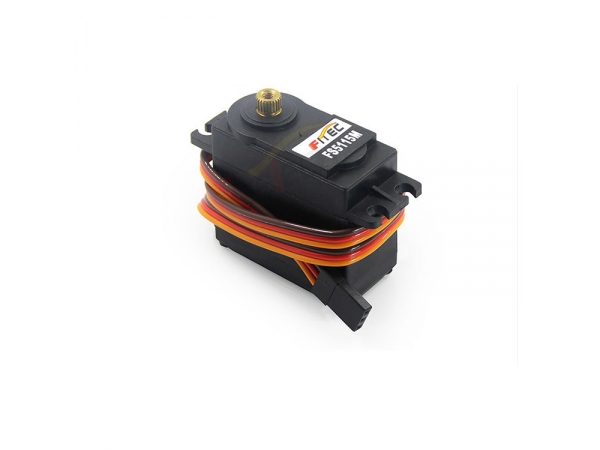

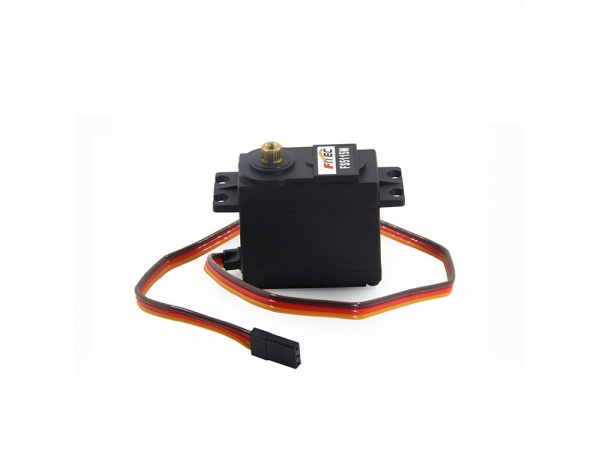

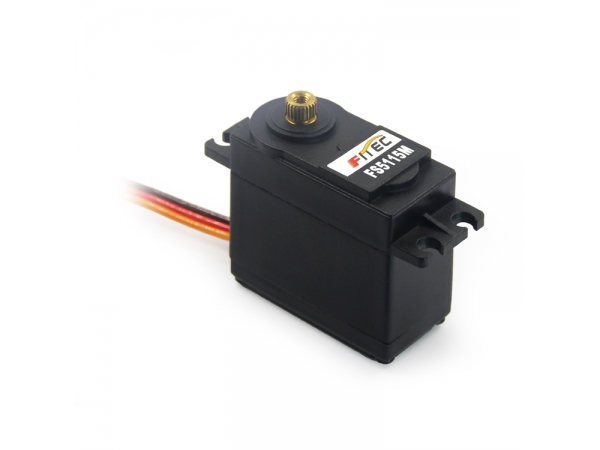

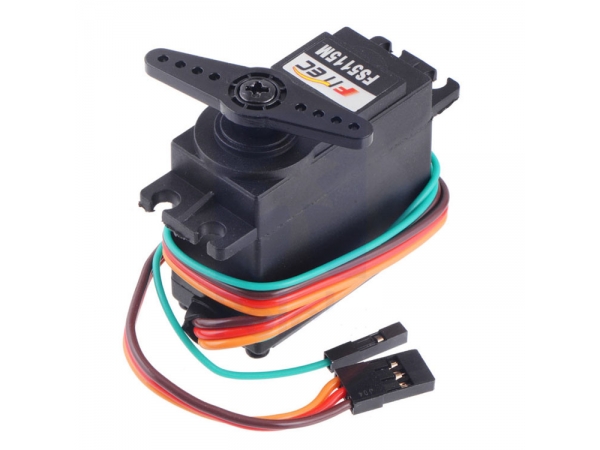

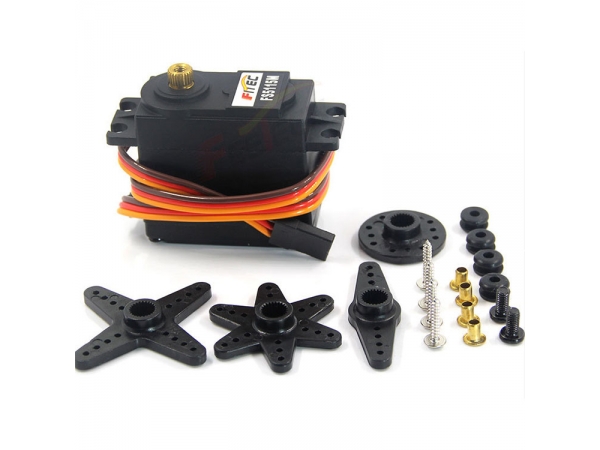

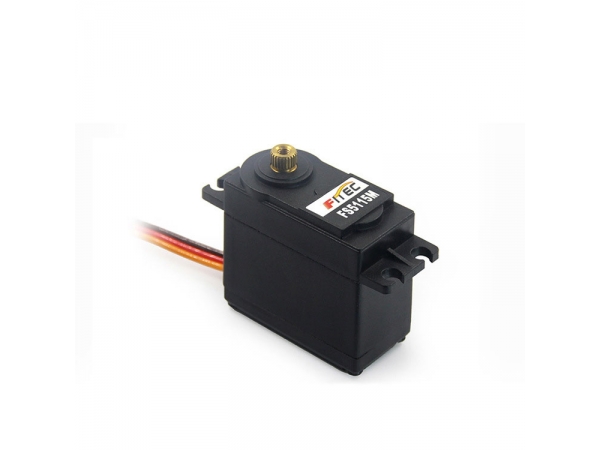

Low Price RC Standard 15kg Metal Gear Analog Servo FS5115M

15kg Metal Gear Servo Motor FS5115M for Smart lock/Smart toilet

15kg Metal Gear Servo Motor FS5115M for Smart appliances/Smart curtain

SKU:FS5115M

Dimensions:40.0 × 20.0 × 40.5 mm

Weight:59 g

Operating Speed :0.18sec/60degree (4.8V)0.16sec/60degree (6V)

Stall Torque :14kg.cm/194.8oz.in(4.8V)15kg.cm/208.7oz.in(6V)

Operating Voltage :4.8V~7.4V

Control System :Digital

Direction :CCW

Operating Angle :180degree

Required Pulse :500~2500us

Bearing Type :2BB

Gear Type :Metal

Motor Type :Carbon

Connector Wire Length :30 cm

FS5115M is low price high quality robot servo.

This servo is used in robots or where standard servos are used.

This servo can produce high-current draw from your batteries. If using NiMH or LiPo batteries, make sure they are capable of delivering approximately 2A for each servo.

This servo also have different applications for DIY robot.
