Feetech 7.4V 35kg.cm Digital Servo(Steel Gears,Bule Aluminum middle Case,Coreless motor)FI7635M
Fi7635M NEW 35KG Digital Metal Gear rc boat digital servo
Fi7635M 35KG Coreless Digital Servo Motor TRX4 RC Crawler Truck Steering servo
Features:
Best RC servo upgrades, ideal for 1:10/1:8/1:5 robot or r/c crawlers
Operating speed:0.07sec/60°; Stall torque: 35kg-cm (at 7.4V)
Core motor-driven provides high speed, incredible efficiency, and low power consumption
IP66 waterproof performance for worry-free operation; extremely strong unique stainless steel & Aluminum gears ensure long life and durability
Super light-weight, small size but strong.Dimensions: 40x20x38.5mm, Weight: 60g
Electrical Specification:
Operating voltage range: 5-7.4V
Operating speed ( 5.0V ): 0.1 3sec/60 degree
Operating speed ( 6.0V ): 0.12 sec/60 degree
Operating speed ( 7.4V ): 0.11 sec/60 degree
Stall torque ( 5.0V ): 29kg/cm
Stall torque ( 6.0V ): 32kg/cm
Stall torque ( 7.4V ): 35kg/cm
Control Specification:
Control System: PWM(Pulse width modification)
Pulse width range: 500~2500 μsec
Neutral position: 1500μsec
Running degree: 180 degrees (when 500~2500 μsec)
Dead band width: 3 μsec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500~2500 μsec)
Mechanical Specification:
Gear ratio: 373
Bearing: Double bearing
Connector wire: 17.7inches(450mm)
Motor: 3-pole(s)
Waterproof performance: IP66

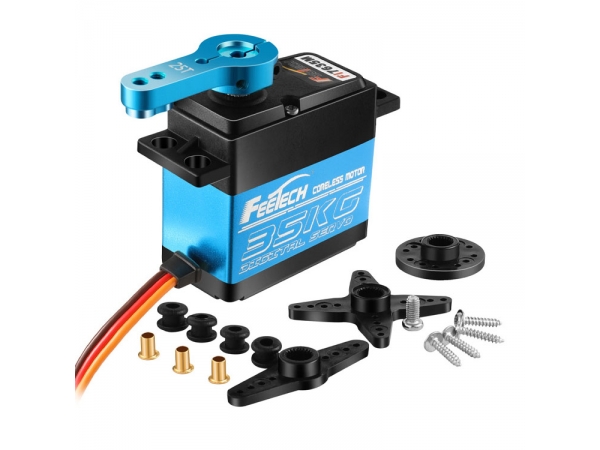

Package:
1 x FI7635M Coreless Servo

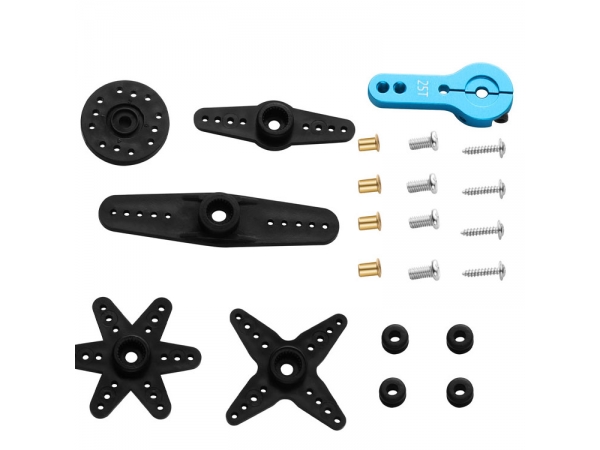

1 x 25T Adjustable metal servo arm
One set of accessories
