Servo

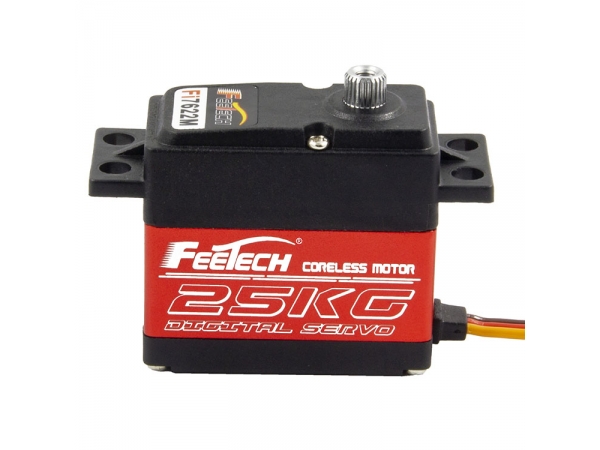

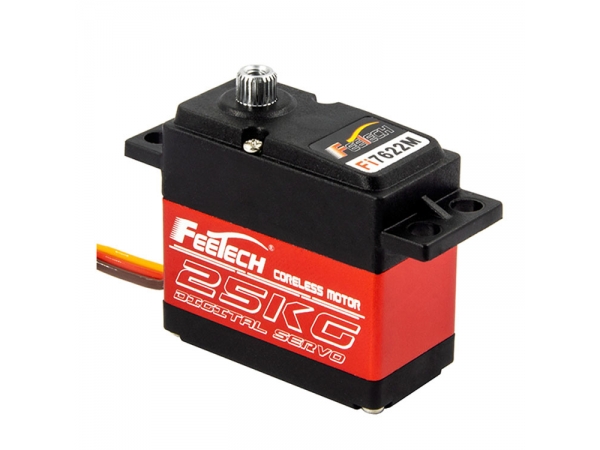

FI7622M 1 X Waterproof Servo 25KG High Speed Metal gear Programmable Digital Servo baja Servo For 1/8 1/10 Scale RC Cars

FI7622M 25KG High Troque Digital Metal Gear Servo Waterproof for RC Models
Fi7622M 1:8 rc car Servo 20kg HV Digital Programmable Servo
High Torque 22 kg HV Programmable Digital Servo Fi7622M
Parameter
1、Mechanical Specification：

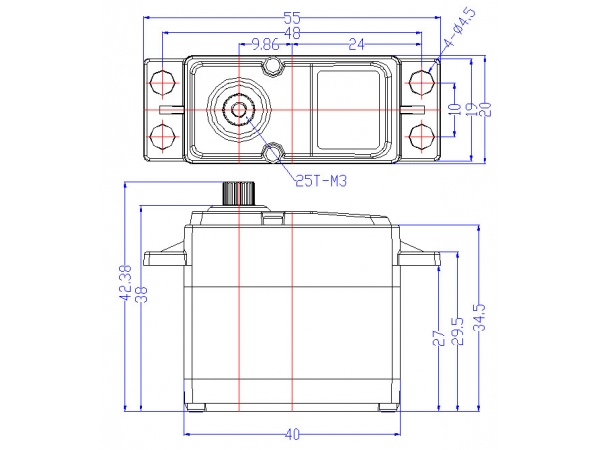

Size：55X20X38
Limit Angle：No limit
Case material：PA+Aluminum

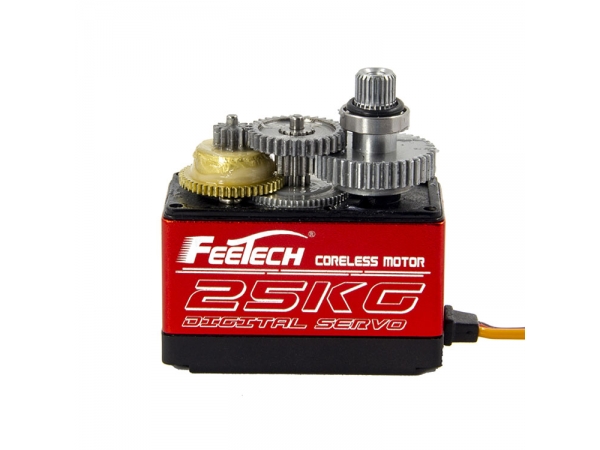

Gear material：Metal Gear
Bearing type：Ball bearings
Angle Sansor：Carbon-Film Potentiometer
Angle：220°
Life：1000000Cycles Min
Connector and Cable：Type：JR
Material：PVC
Length：30CM
"Pin Definition：1 Signal
2 Vcc
3 GND"
The Weight：60.6± 1g

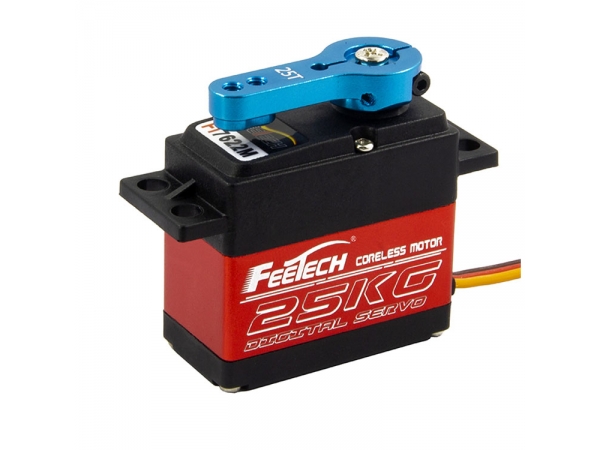

Horn Type：25T/5.9mm
Gear Ratio：1/275
Back Lash：≦0.5°
The rocker phantom：0°
The rocker screw：M3X6
Motor：CoreLess Motor
2、Control Specification：
Command Signal：Pulse width modification
Control System Type：Digital comparator
Operating Travel：180°
(at 500→2500μsec)
Left&Right Travelling Angle deviation：≤ 5°
Centering Deviation：≦1°
Neutral Position：1500 μsec
Dead Band Width：≤4 μsec
Rotating Direction：Counterclockwise(在1500→2000 μsec)
Pulse Width Range：500→2500 μsec
Electronic Protection：Stall 3sec
  • FI7622M 25KG High Troque Digital Metal Gear Servo Waterproof for RC Models
    Fi7622M 1:8 rc car Servo 20kg HV Digital Programmable Servo
    High Torque 22 kg HV Programmable Digital Servo Fi7622M
    Parameter
    1、Mechanical Specification：
    Size：55X20X38
    Limit Angle：No limit
    Case material：PA+Aluminum
    Gear material：Metal Gear
    Bearing type：Ball bearings
    Angle Sansor：Carbon-Film Potentiometer
    Angle：220°
    Life：1000000Cycles Min
    Connector and Cable：Type：JR
    Material：PVC
    Length：30CM
    "Pin Definition：1 Signal
    2 Vcc
    3 GND"
    The Weight：60.6± 1g
    Horn Type：25T/5.9mm
    Gear Ratio：1/275
    Back Lash：≦0.5°
    The rocker phantom：0°
    The rocker screw：M3X6
    Motor：CoreLess Motor
    2、Control Specification：
    Command Signal：Pulse width modification
    Control System Type：Digital comparator
    Operating Travel：180°
    (at 500→2500μsec)
    Left&Right Travelling Angle deviation：≤ 5°
    Centering Deviation：≦1°
    Neutral Position：1500 μsec
    Dead Band Width：≤4 μsec
    Rotating Direction：Counterclockwise(在1500→2000 μsec)
    Pulse Width Range：500→2500 μsec
    Electronic Protection：Stall 3sec
