product description:

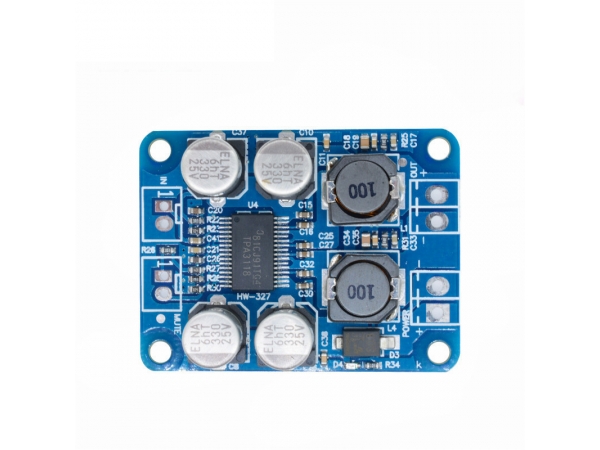

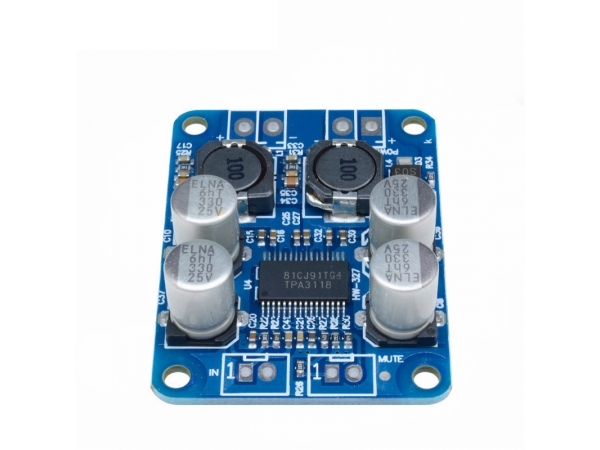

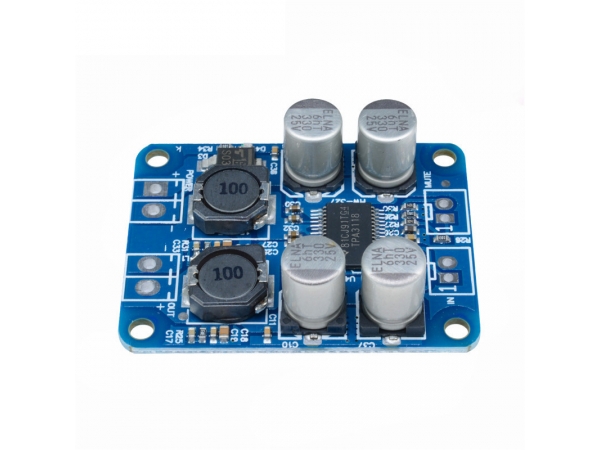

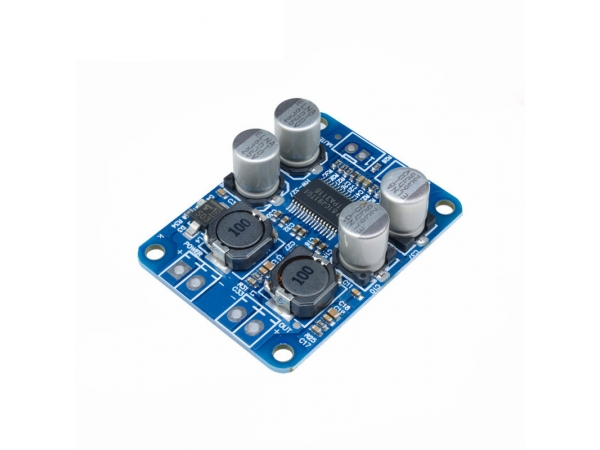

This model uses TI’s TPA3118 as the main chip. The power supply range is as wide as 10-24V. In the case of 24V power supply,
the load of 2 ohm speakers can reach a maximum output of 60W. The circuit adopts PBTL mode,
so it can achieve low resistance, high power, and large internal resistance speakers. Can be connected in parallel to achieve high power output.
Product name: digital audio amplifier board
Enlargement type: Class D
Work efficiency: 93%
Chip type: TPA3118
product description:
This model uses TI’s TPA3118 as the main chip. The power supply range is as wide as 10-24V. In the case of 24V power supply,
the load of 2 ohm speakers can reach a maximum output of 60W. The circuit adopts PBTL mode,
so it can achieve low resistance, high power, and large internal resistance speakers. Can be connected in parallel to achieve high power output.
Product name: digital audio amplifier board
Enlargement type: Class D
Work efficiency: 93%
Chip type: TPA3118

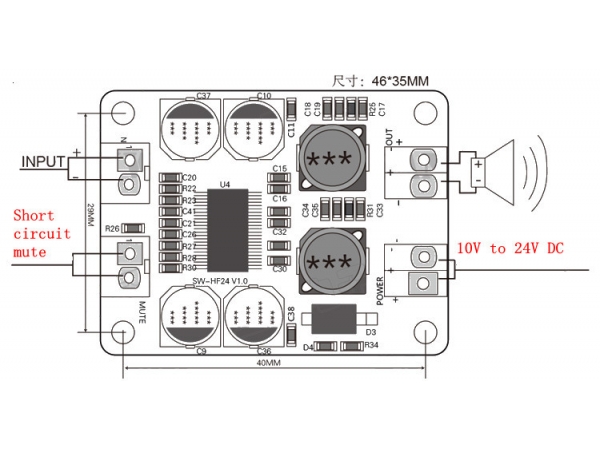

Power supply voltage: DC10-24V
Input current: 3A recommended
Output power: 60w*1
Frequency response range: 35Hz-88KHz
Number of channels: mono
Impedance matching: 2-6 ohms
Appearance size: 55*40*15mm
Weight: 30g
 |
