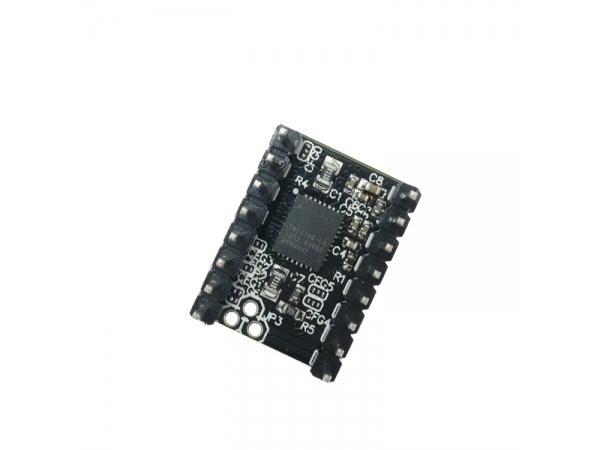

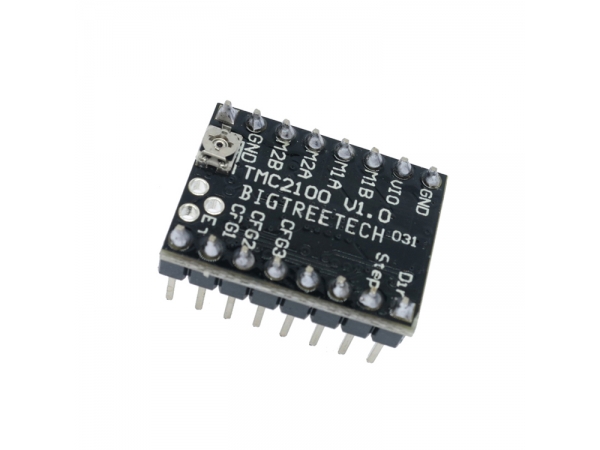

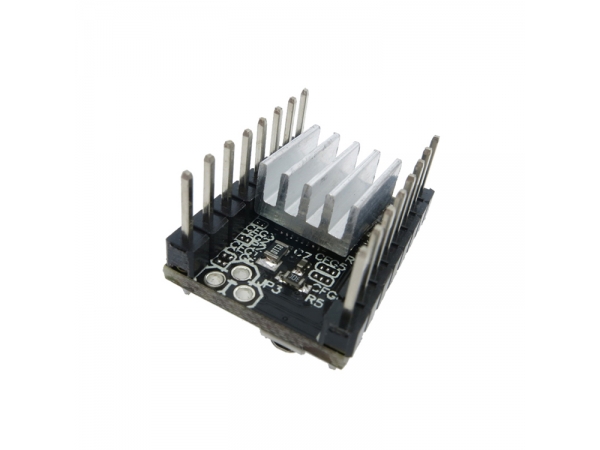

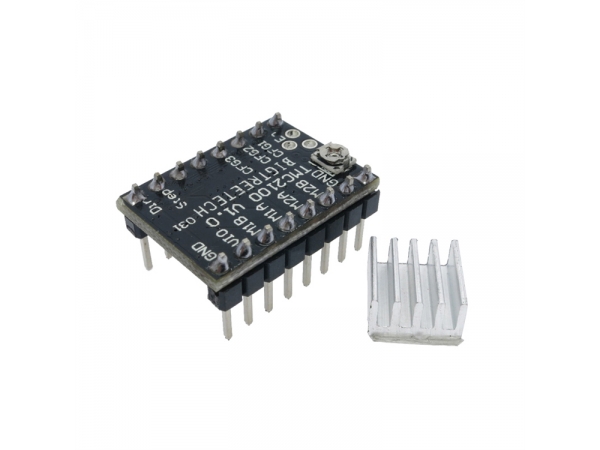

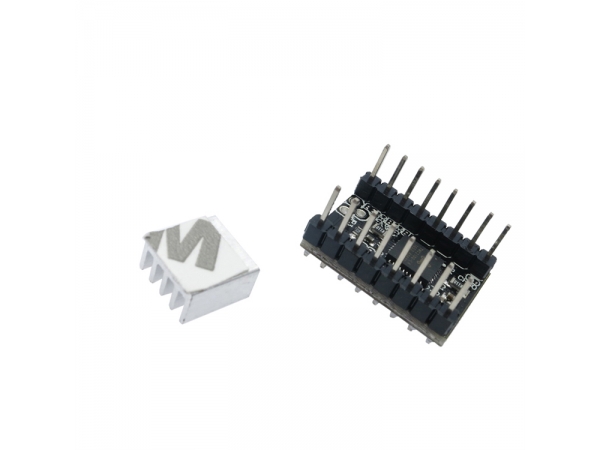

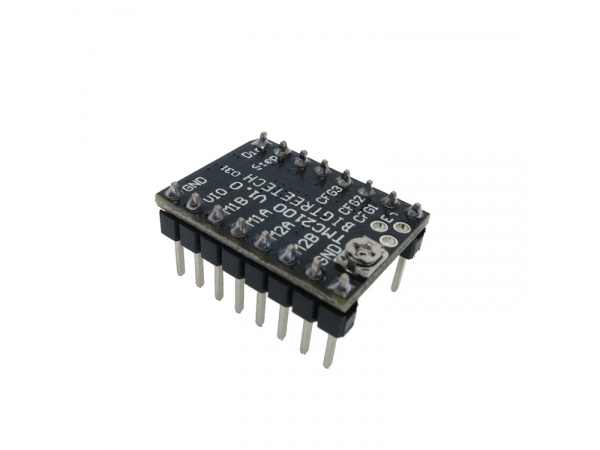

TMC2100 Feature:
1, the drive current algorithm: i = Vref * 1.9 / 2.5, the default Vref about 0.65v, so the default current 0.5A, the maximum current 1A!
2, Vref measures Gnd and potentiometer middle end voltage.
3, when measuring voltage must not connect the motor, or easy to burn drive.
4, measuring voltage should be connected to power, do not just connect the USB power supply.
TMC2208:<
TMC2100 Feature:
1, the drive current algorithm: i = Vref * 1.9 / 2.5, the default Vref about 0.65v, so the default current 0.5A, the maximum current 1A!
2, Vref measures Gnd and potentiometer middle end voltage.
3, when measuring voltage must not connect the motor, or easy to burn drive.
4, measuring voltage should be connected to power, do not just connect the USB power supply.
TMC2208:
Configuration：Dir Step
Microsteps: Up to 1/256
MicroPlyer: 1/2,1/4, 1/8, 1/16, 1/32
Voltage Range: 4.75V-36V
Driver Current : 1.4A
Peak Current : 2A
 |
