Chip Model: tec1-12710
Overall dimensions: 40*40*3.4mm component Logarithm 127

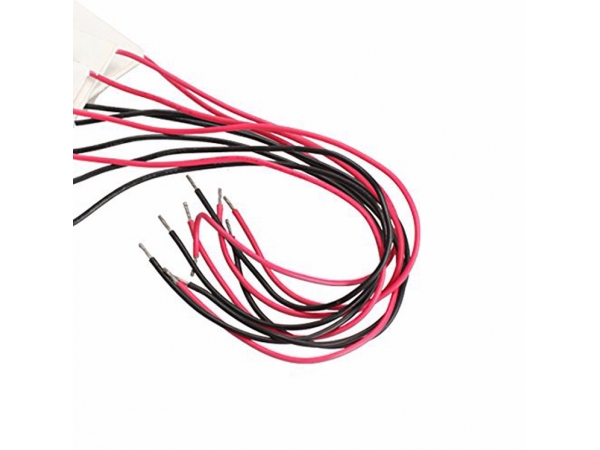

Wire specification: lead long 300±5mm RV standard conductor single head 5mm tin plating
Internal resistance: 1.2~1.5ω (ambient temperature 23±1℃, 1kHZ AC test)
Maximum temperature difference: Tmax (qc=0) 60 ℃ above.
Working cur

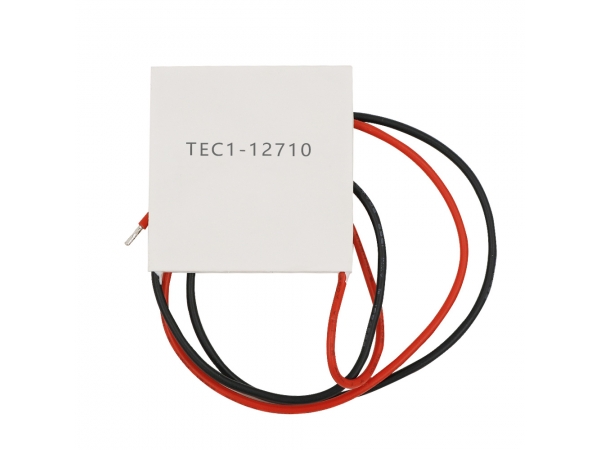

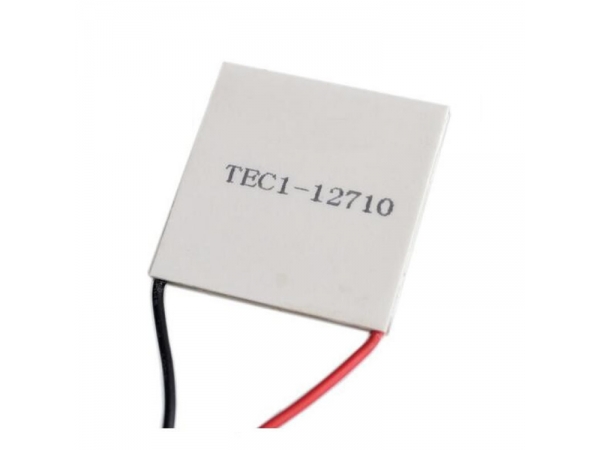

Chip Model: tec1-12710

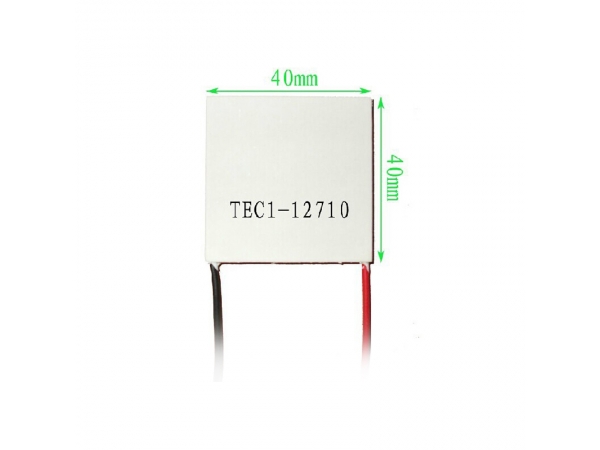

Overall dimensions: 40*40*3.4mm component Logarithm 127
Wire specification: lead long 300±5mm RV standard conductor single head 5mm tin plating
Internal resistance: 1.2~1.5ω (ambient temperature 23±1℃, 1kHZ AC test)
Maximum temperature difference: Tmax (qc=0) 60 ℃ above.
Working current: imax=10a (15Vmax voltage start)
Rated Voltage: $literal (Vmax: 5V)
Cooling power: Qcmax 92W
Assembling pressure: 85n/cm2
Working environment: Temperature range -55℃~83℃ (high ambient temperature will directly affect refrigeration efficiency)
Packaging process: Ambient standard 704 Silicone rubber seal
Packaging standards: Foam box packaging, storage conditions ambient temperature -10℃~40℃
Storage conditions:-40~60℃
 |
