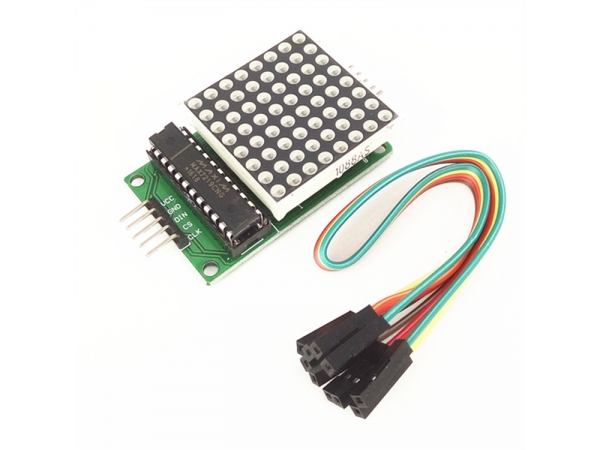

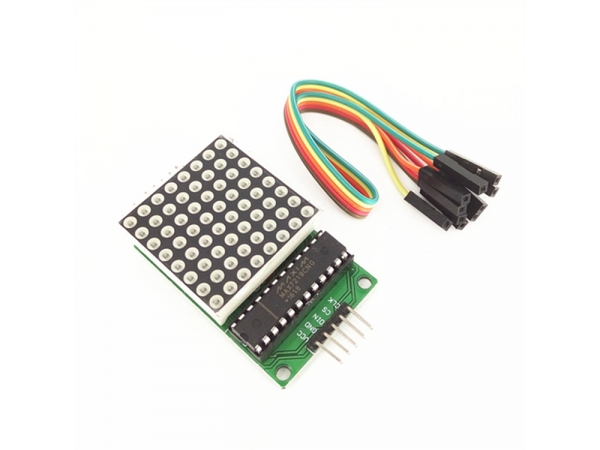

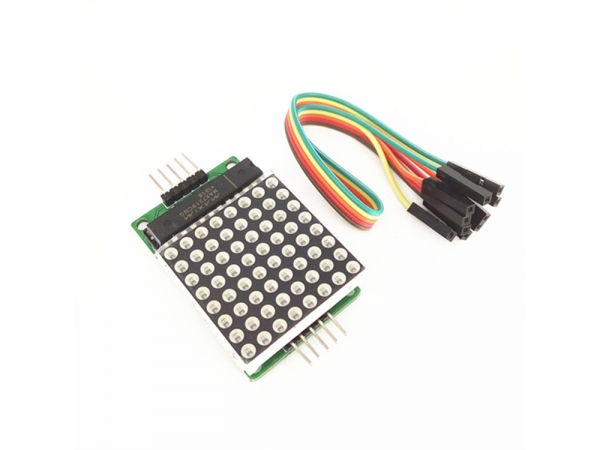

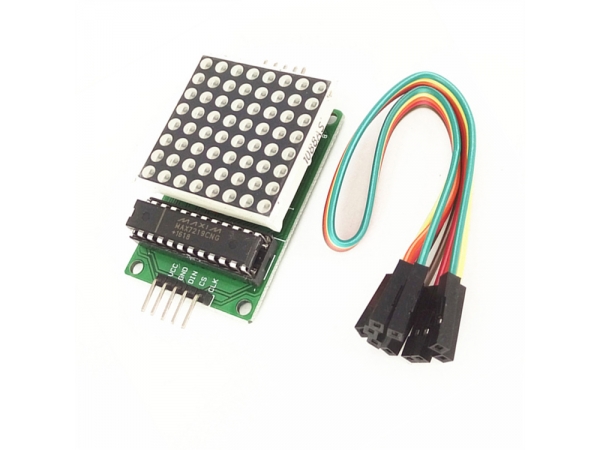

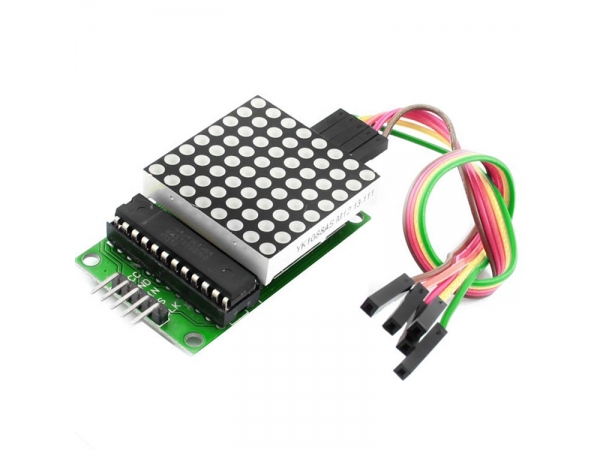

Feature:

A single module can drive an 8 * 8 common cathode lattice

Module Operating voltage: 5V.

Module size: 5 cm long X 3.2 cm wide X 1.5 cm high

With four screws hole, aperture 3mm, by using our M3 Tongzhu fixed

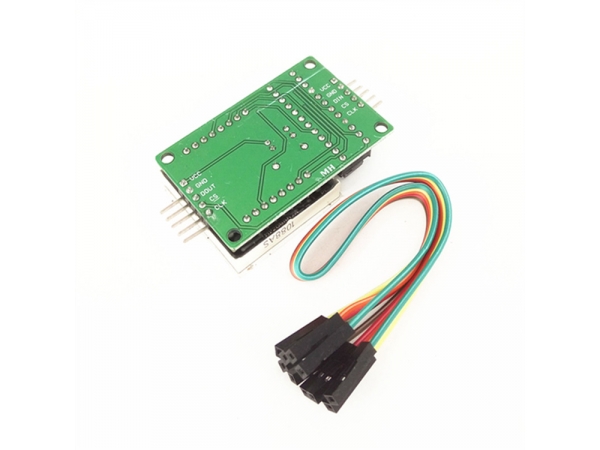

Module with input and output interfaces, supports multiple modules cascade

Led colour:Red

Wiring instructions:

1.The module left as an input port to the output port on the right.

2.The control of a single module, simply input port to the CPU

3.Multiple modules cascade input termination CPU, 2 output termination module, a module of the input of the input terminal, the output terminal of the first two modules of the first three modules, and so on ...

51 MCU, for example:

VCC → 5V

GND → GND

DIN → P22

CS → P21

CLK → P20
