Description

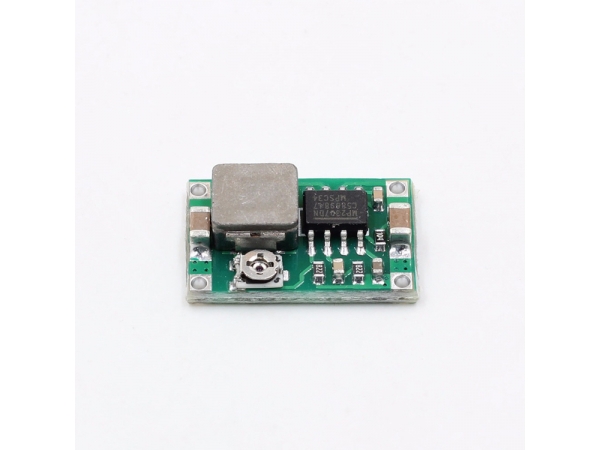

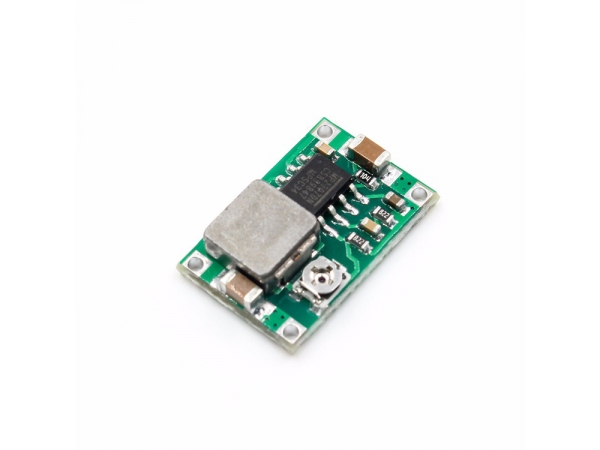

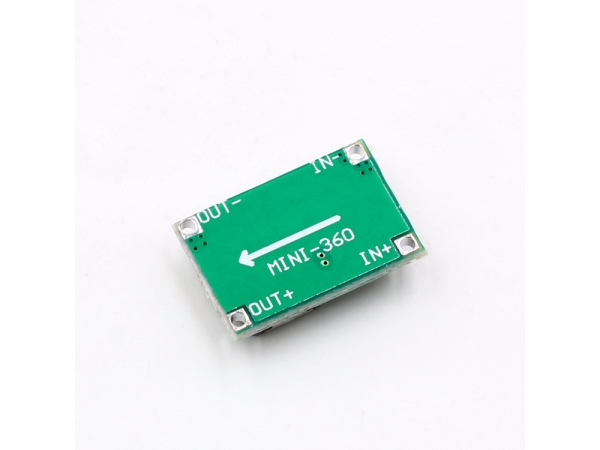

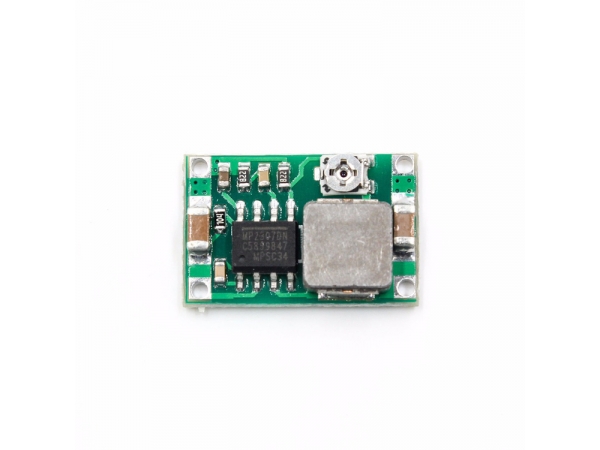

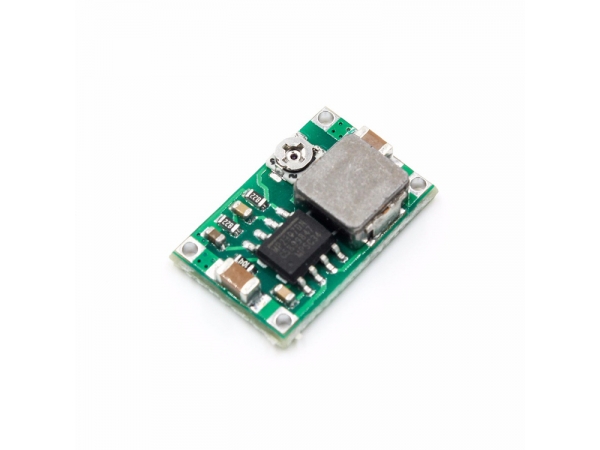

Model Name: Mini-360 (ultra small size DC-DC synchronous rectifier buck module

Module Properties: non-isolated buck

Rectification: synchronous rectification

Input voltage: 4.75V-23V

Output voltage: 1.0V-17V

Output Current: lowering the value of 3A, long 1.8A

Conversion efficiency: 96% (maximum)

Switching Frequency: 340KHz

Output ripple: 30mV (no-load)

Load regulation: ±0.5%

Voltage regulation: ±2.5%

Working temperature: -40 Centigrade to +85 Centigrade

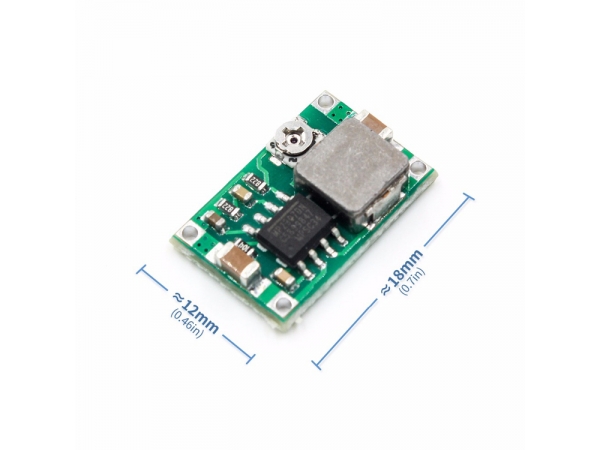

External dimensions: 17 * 11 * 3.8 (L * W * H) (mm)

Features: Use integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient.

Package Include：

1 pcs Mini-360 DC-DC HM Buck Converter Step Down Power Supply Module
