Discription:

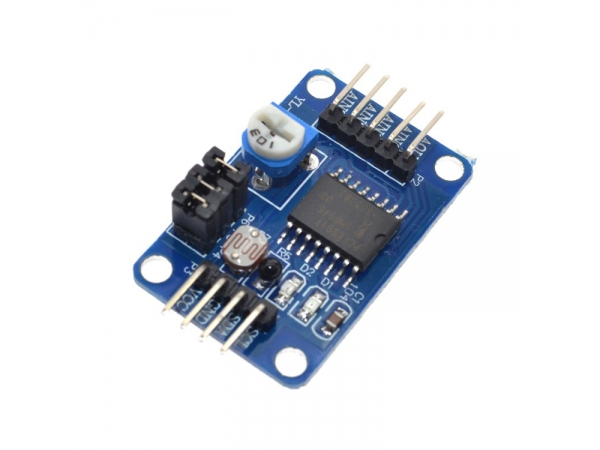

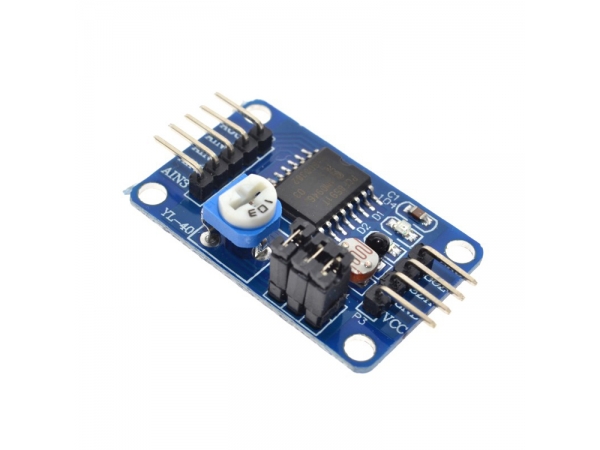

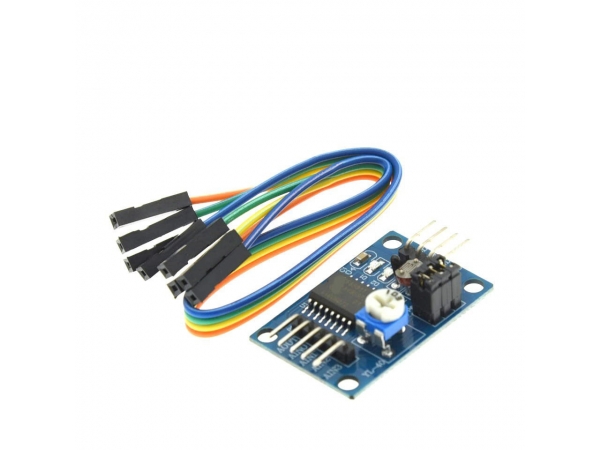

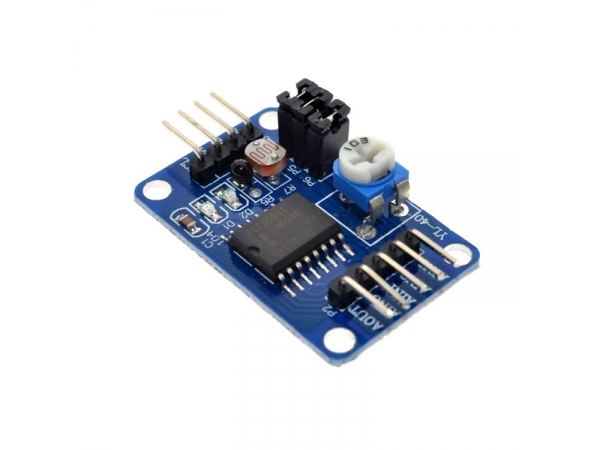

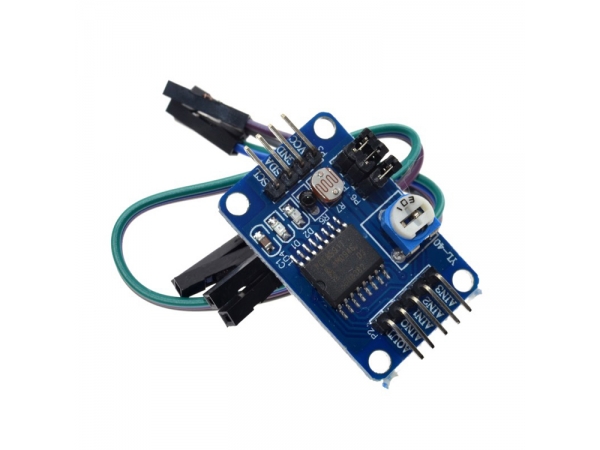

1. A module chip using PCF8951

2. module supports external voltage input capture (input voltage range 0-5v)

3. Three modules integrated photoresistor acquisition environment through the AD intensity accurate numerical

4. modules integrated thermistor, can capture the precise value of the ambient temperature through the AD

5. The five-module integrated 1 channel 0-5V voltage input acquisition (blue potentiometer to adjust the input voltage)

6. modules with power indicator light (on the module after power indicator lights)

7. modules with the DA output indicator light board DA output indicator module DA output interface voltage reaches a certain value, the voltage the greater the light brightness is more obvious;

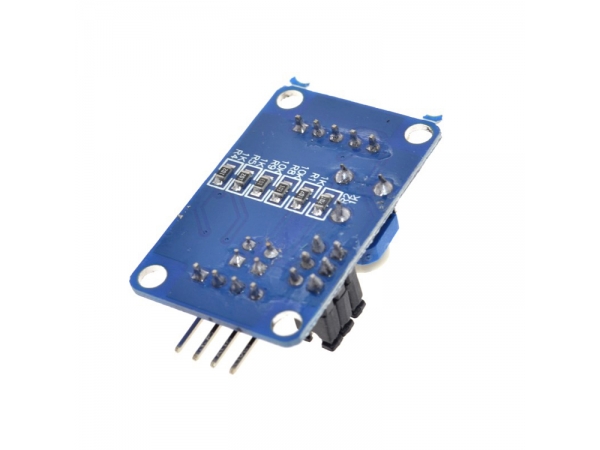

8. module PCB size: 3.6cm * 2.3cm

9. standard double-sided, plate thickness 1.6mm, the layout is nice, surrounded by the through-hole, aperture: 3mm, convenient fixed

Interface:

The module‘s left and right, respectively, the external expansion of 2-way pin interface, respectively, as follows:

Output interface of the left the AOUT chip DA

The AINO chip analog input interface.

AIN1 chip analog input interface

AIN2 chip analog input interface

AIN3 chip analog input interface

The right side of the SCL IIC clock interface to access the microcontroller IO port

The SDA IIC digital interface connected microcontroller IO port

GND module to an external

VCC power supply interface external 3.3v-5v

Module red jumper instructions for use

Module three red short circuit cap, respectively, the role are as follows:

P4 connected to the P4 jumper, select thermistor access circuit

P5 connected to P5 jumper to select the photoresistor access circuit

P6 connected to the P6 jumper, to select 0-5V adjustable voltage access circuit
