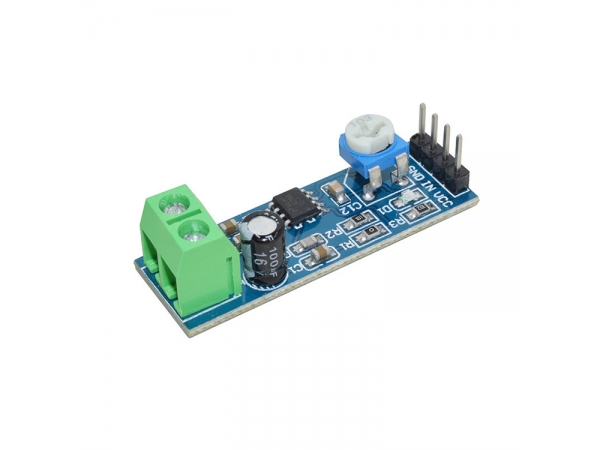

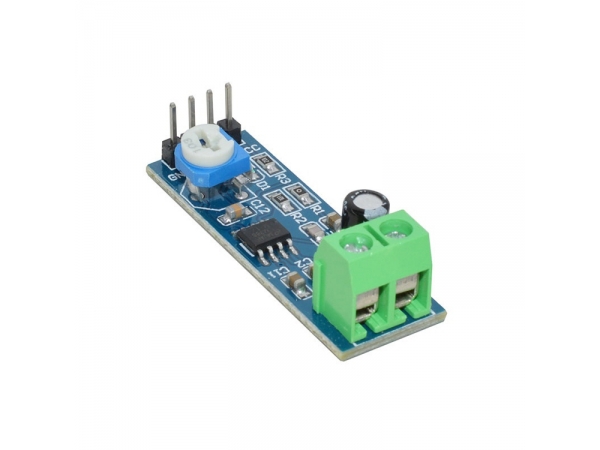

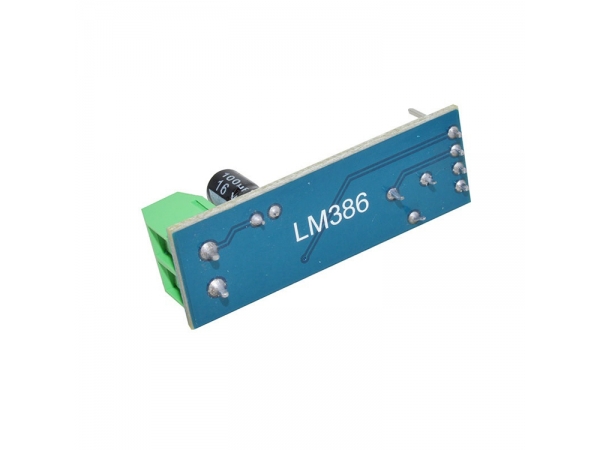

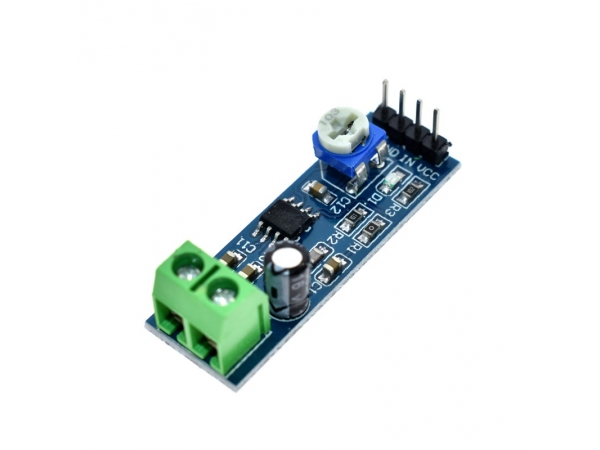

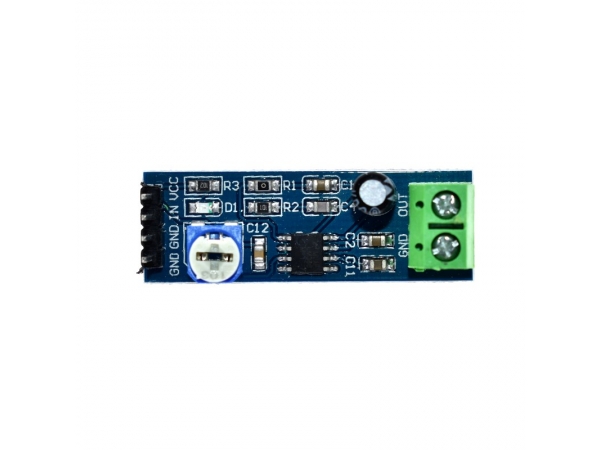

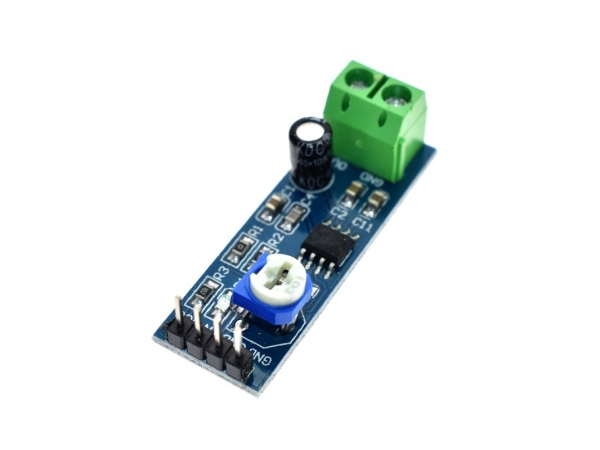

1, onboard the LM386 chip
2, 200 times gain circuit design
3, onboard speaker terminal block
4, onboard 10K adjustable resistance, you can adjust the volume on the amplifier
5, onboard power ledMajor pin has
1, onboard the LM386 chip
2, 200 times gain circuit design
3, onboard speaker terminal block
4, onboard 10K adjustable resistance, you can adjust the volume on the amplifier
5, onboard power ledMajor pin has
6, chip leads, direct audio input signal
7, the working voltage: 5~12V
8, 41 Board size (mm) x13 (mm)
 |
