Description:

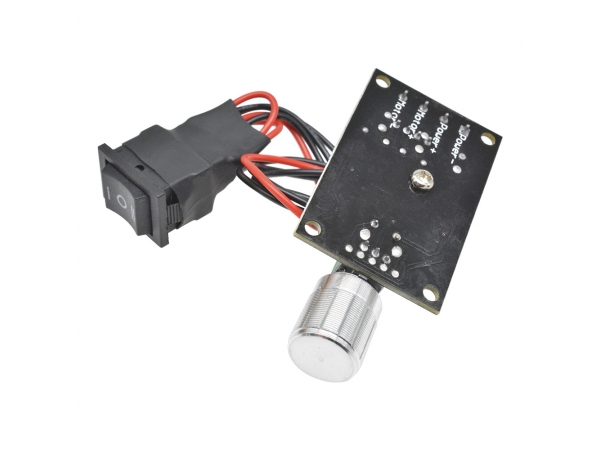

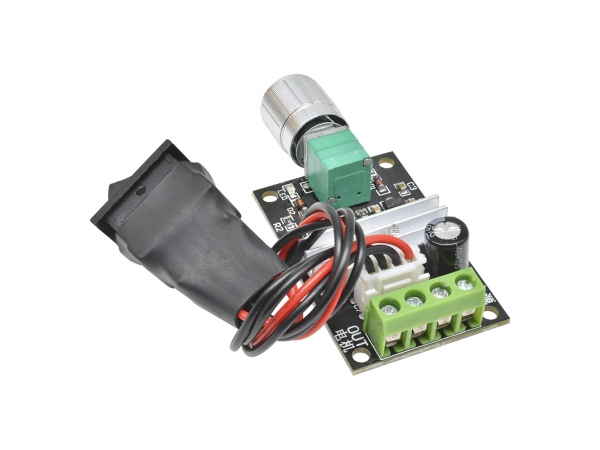

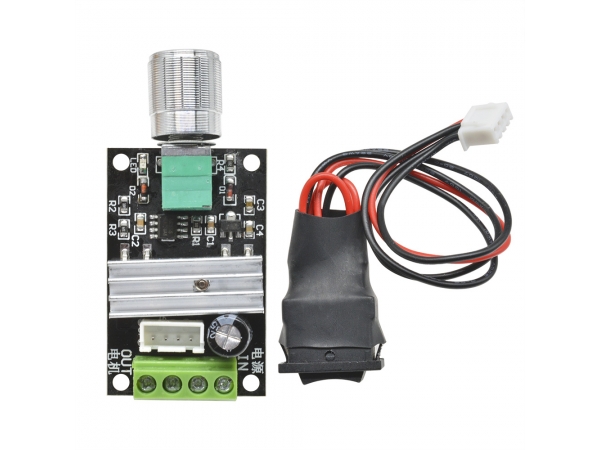

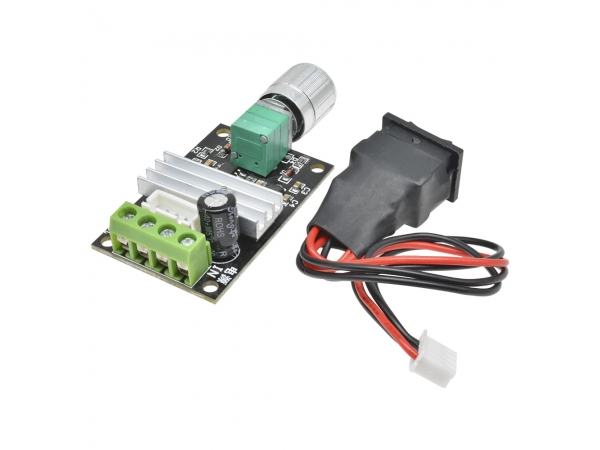

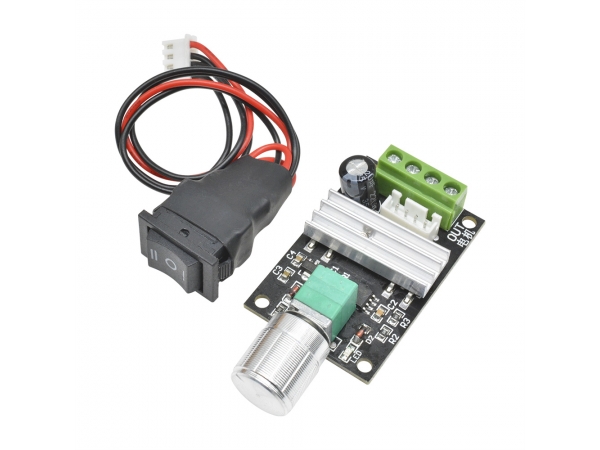

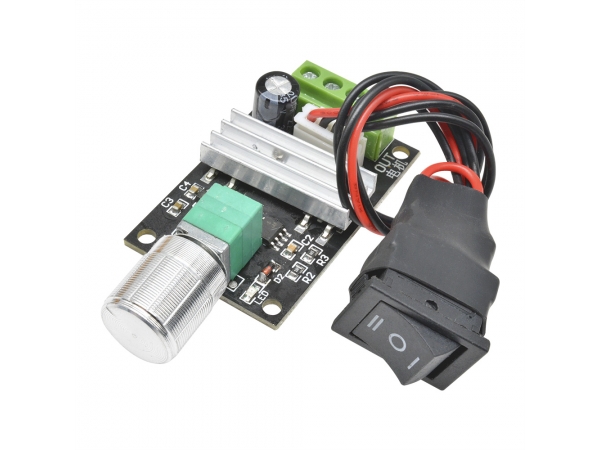

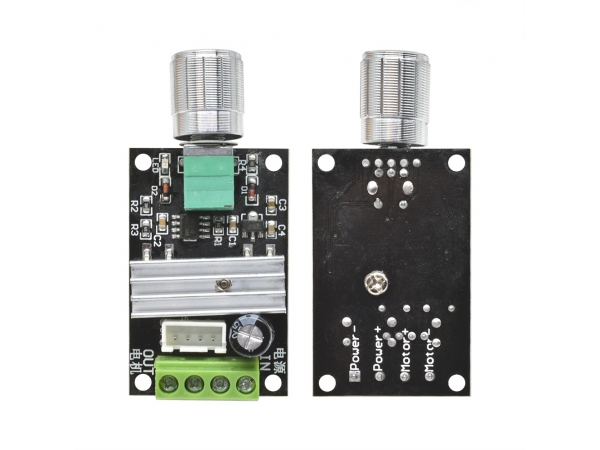

The 1203BB DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).
It provides a continuous current of 3A to your DC motor or other DC load.
Besides, the circuit also includes a 3A fuse, with reverse connection of power supply and control the forward or reverse direction and the stop of DC motor by switch.
Features:
- Color: As the pictures show.
- Material: Metal.
- Size: 5 * 3.2 * 1.5cm.
- The input power range is DC6-28V.
- Control the forward or reverse direction and the stop of DC motor by switch.
Description:
The 1203BB DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).
It provides a continuous current of 3A to your DC motor or other DC load.
Besides, the circuit also includes a 3A fuse, with reverse connection of power supply and control the forward or reverse direction and the stop of DC motor by switch.
Features:
- Color: As the pictures show.
- Material: Metal.
- Size: 5 * 3.2 * 1.5cm.
- The input power range is DC6-28V.
- Control the forward or reverse direction and the stop of DC motor by switch.
- Potentiometer with switch function.
- The switch cable length 15cm.
 |
