Description:

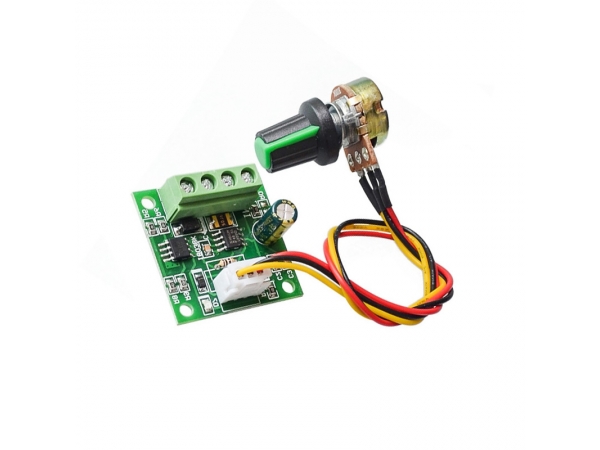

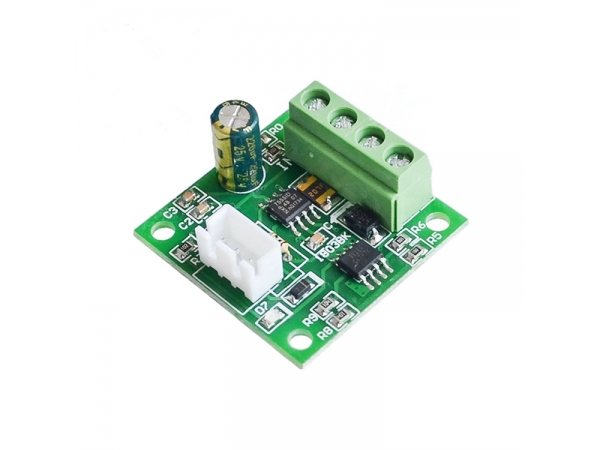

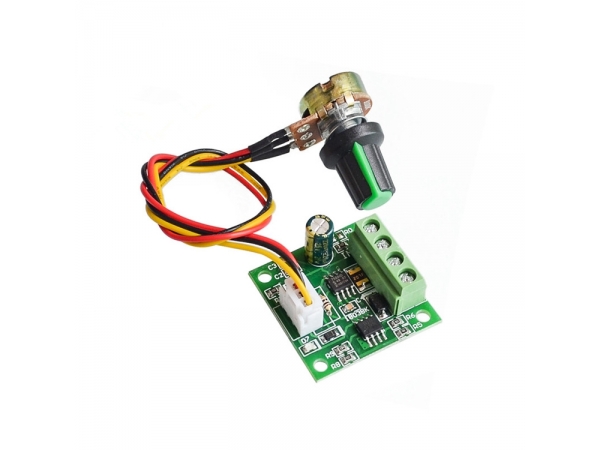

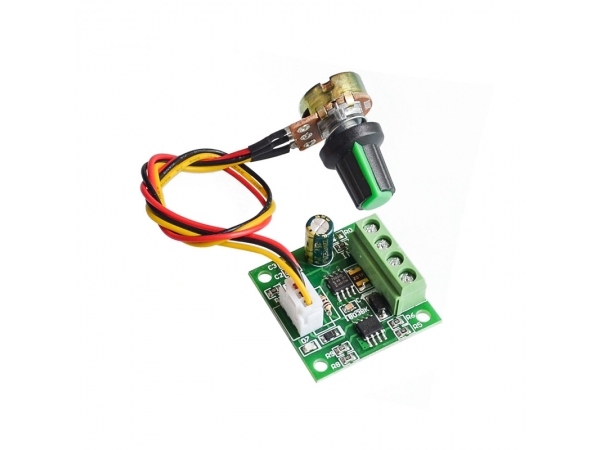

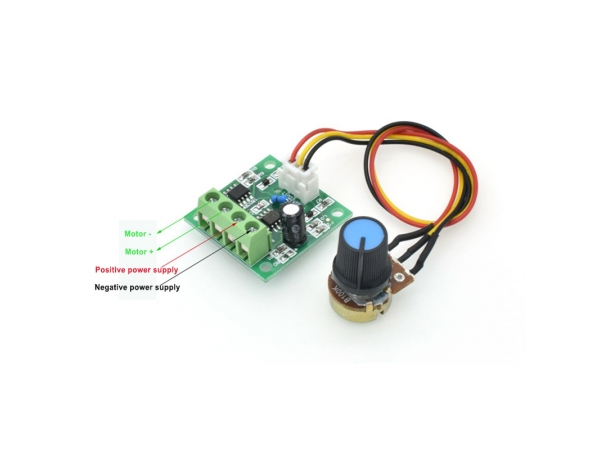

Product Name: Dot Circle 2A08
Input voltage: DC 1.8-12V (specific voltage should be equal to the motor rated voltage)
Output voltage: Linear under load (no load voltage and input equal)
Output current: 2A
Overload protection: fuse
Speed type: Tuning
Support motor: DC brush motor
Forward rotation reverse: not supported
Speed range: 2-100%
Speed control mode: linear with switch potentiometer 270 degrees
Knob opening: 7MM

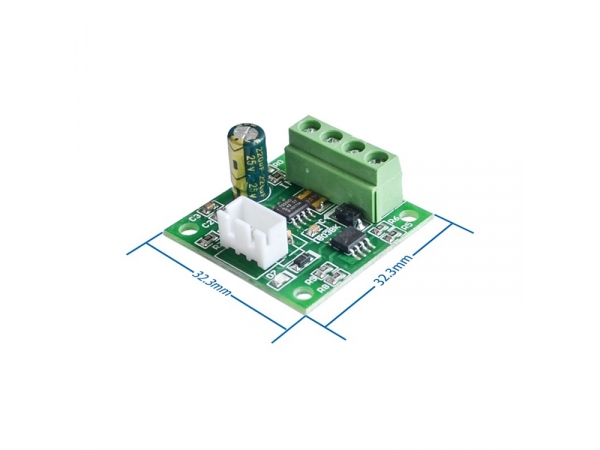

Size of the collection: 32mm*32m*15mm
Product net weight: 18g
