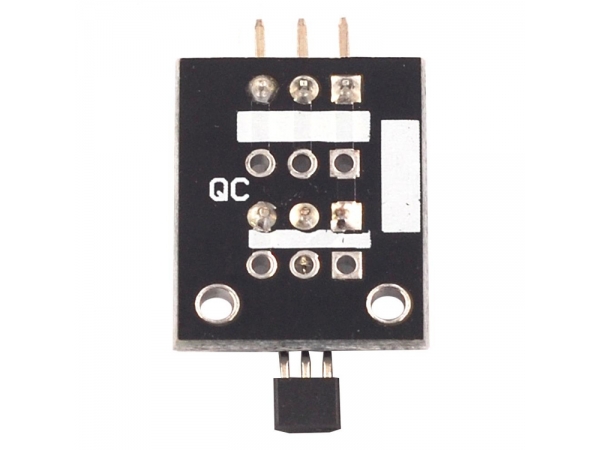

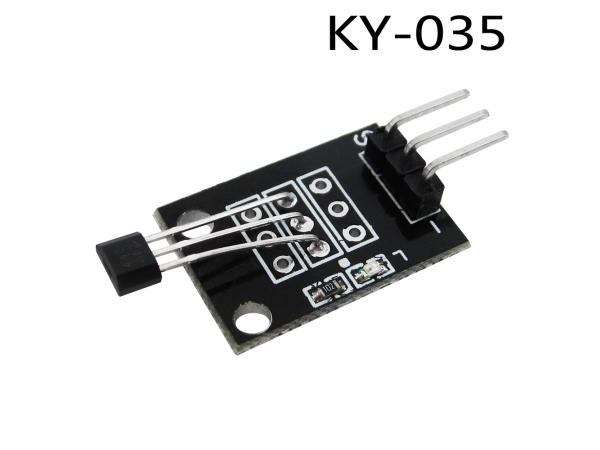

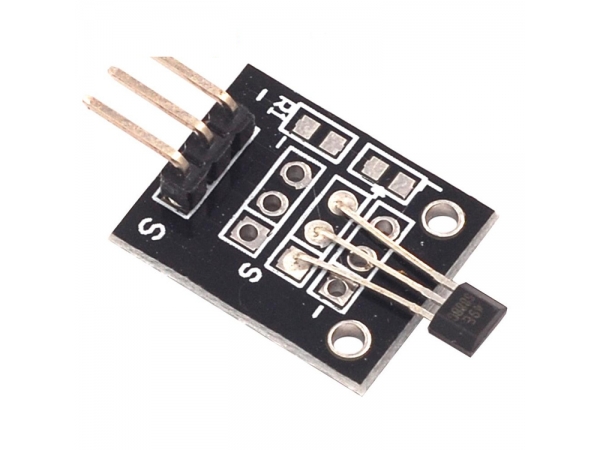

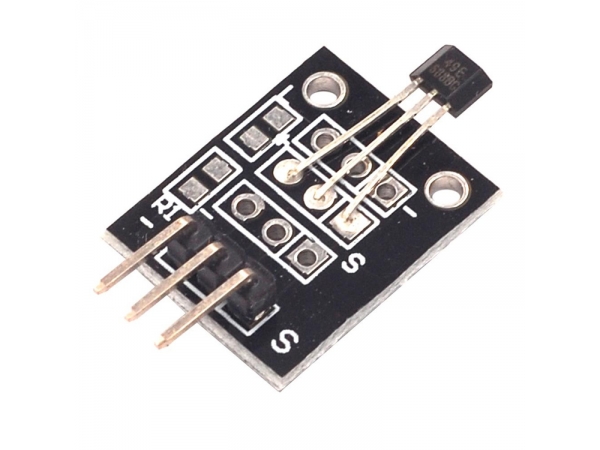

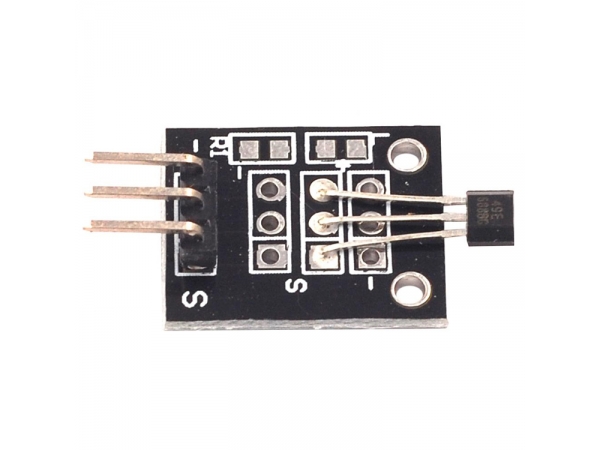

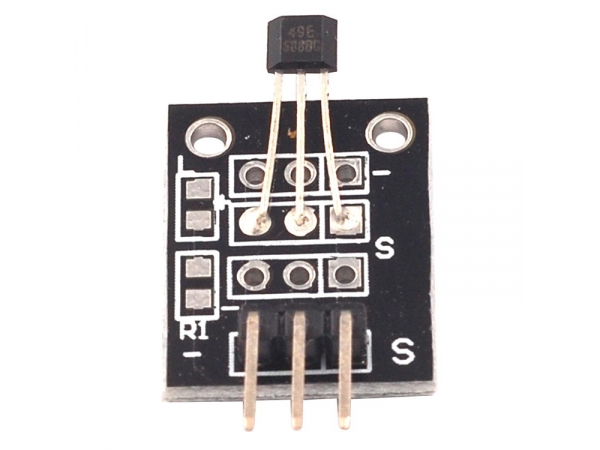

Analog magnetic sensor module and a digital interface, built-in 13 LED build a simple circuit to produce a magnetic flash
· Makers.13 comes with digital interfaces of the LED, the analog magnetic sensor connected to the power board analog 5 Interfaces,
when analog magnetic sensor to a signal, LED lights,otherwise the lights out.
· With reference program:
· int sensorPin = A5; // select the input pin
· int ledPin = 13; // select the pin for the LED
Analog magnetic sensor module and a digital interface, built-in 13 LED build a simple circuit to produce a magnetic flash
· Makers.13 comes with digital interfaces of the LED, the analog magnetic sensor connected to the power board analog 5 Interfaces,
when analog magnetic sensor to a signal, LED lights,otherwise the lights out.
· With reference program:
· int sensorPin = A5; // select the input pin
· int ledPin = 13; // select the pin for the LED
· int sensorValue = 0; // variable to store the value coming from the sensor
· void setup ()
· pinMode (ledPin, OUTPUT);
· Serial.begin (9600);
· void loop ()
· sensorValue = analogRead (sensorPin);
· digitalWrite (ledPin, HIGH);
· delay (sensorValue);
· digitalWrite (ledPin, LOW);
delay (sensorValue);
