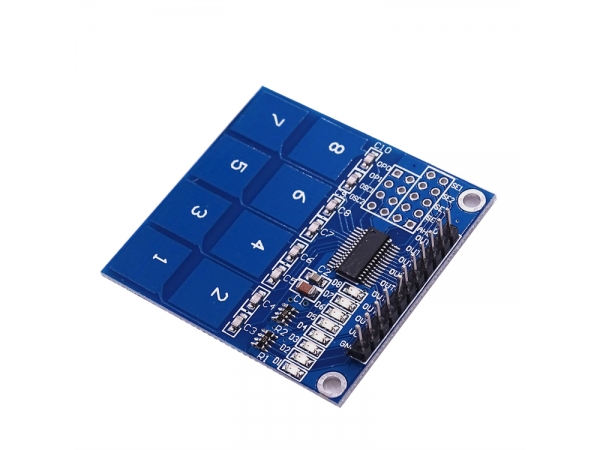

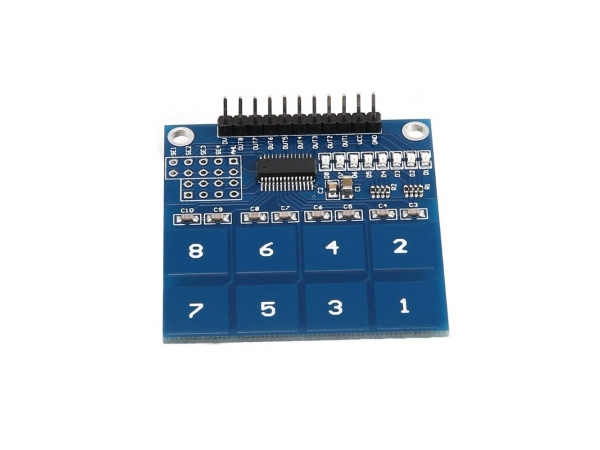

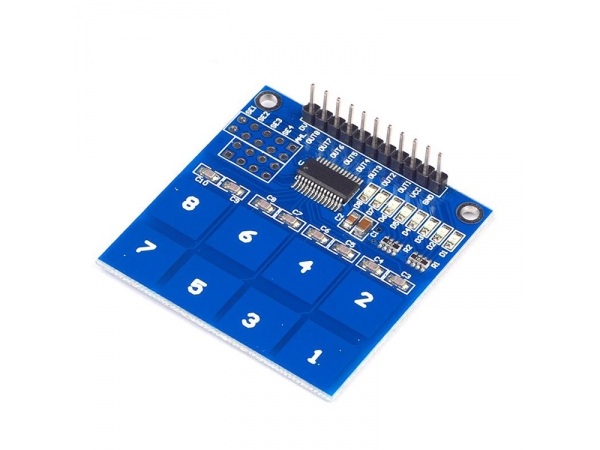

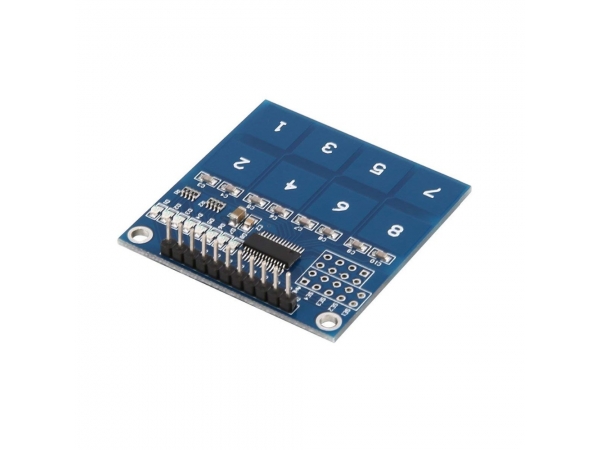

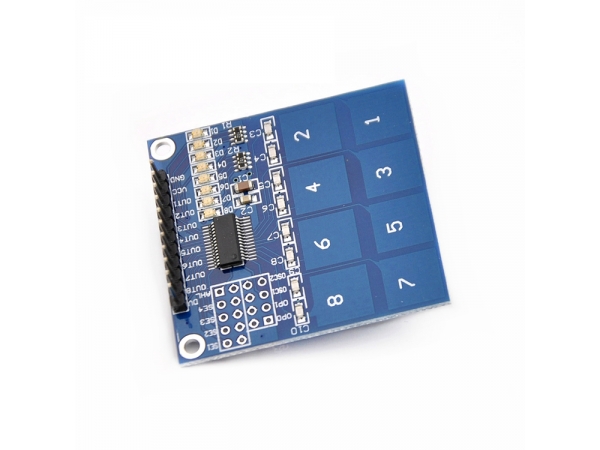

TTP226 8 Channel Digital Capacitive Switch Touch Sensor Module
1, 8 key board TTP226 capacitive touch sensor IC
2, onboard 8-level status indicator
3, working voltage: 2.4V-5.5V
4, the module can be set to output mode, the key output mode, the longest time and fast output / low power options

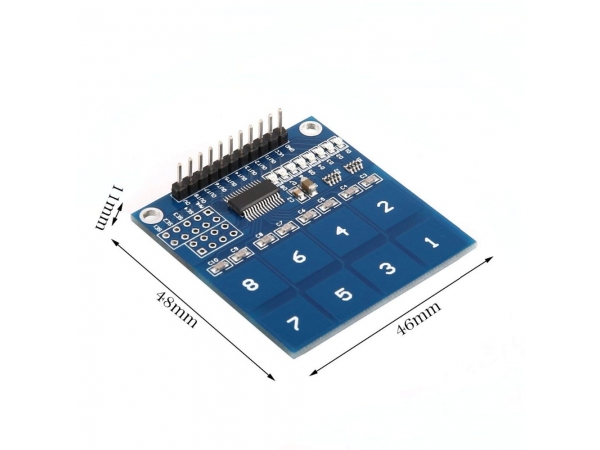

5, PCB board size: 47.5 (mm) x46 (mm)
