Item Description:

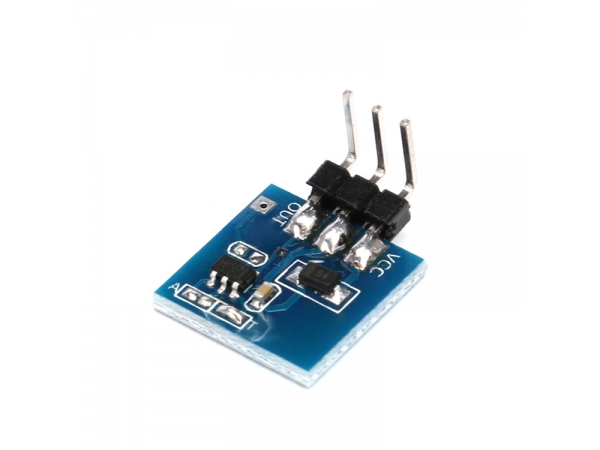

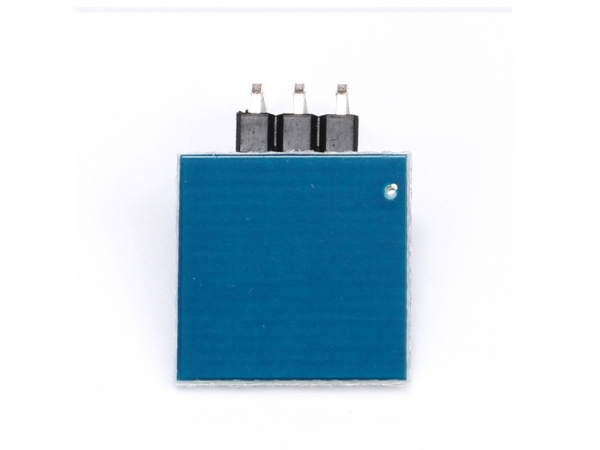

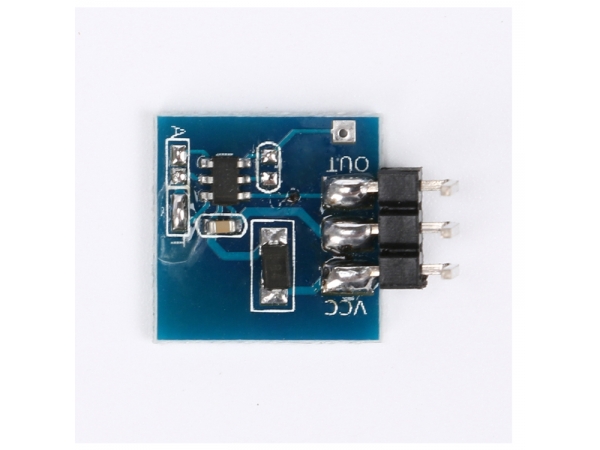

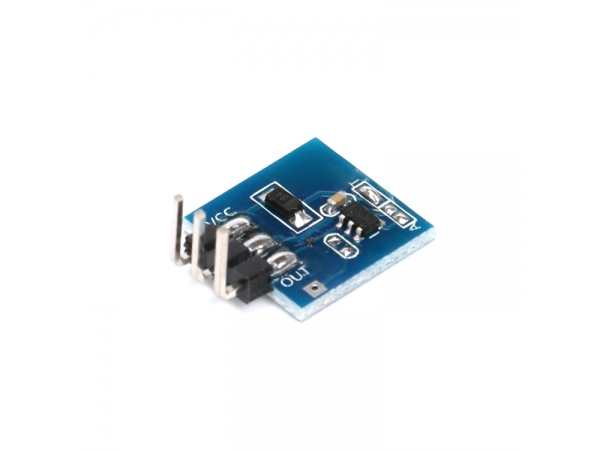

This module is based on a touch detection IC (TTP223B) of Capacitive type touch jog switch module.
This module default output low, the low-power mode to mode; when a finger touching the corresponding position,
the module will output high and returns low again touch. Mode is switched to fast mode;
when for 12 seconds without touching, the mode and switch to low-power mode.
The module can be installed such as plastic, glass surface non-metallic materials,
in addition to the thin piece of paper (non-metallic) covering the surface of the module,
as long as the touch of the correct position, you can make hidden in the wall, desk and other places button.
Features:
1. Touch surface size: 1.4 * 1.4cm
2. Modes: jog, self-locking
3. Voltage: 2.5-5.5V
4. Penetration distance: 6mm
