Sensor Module

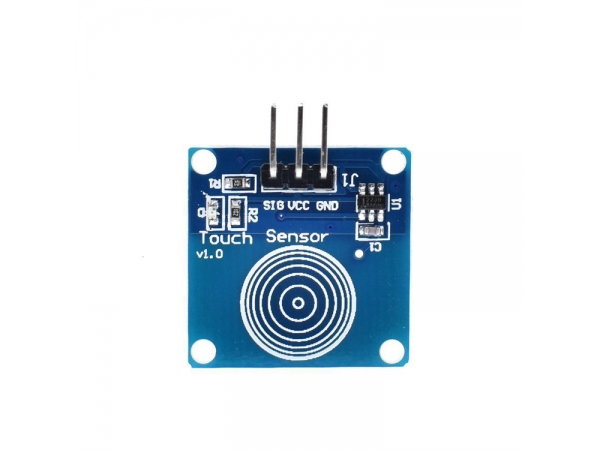

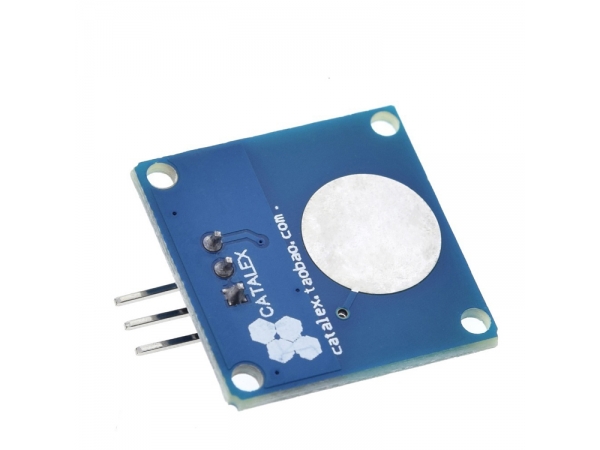

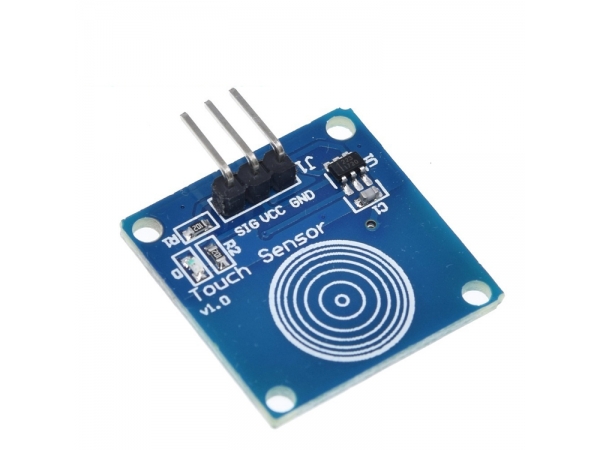

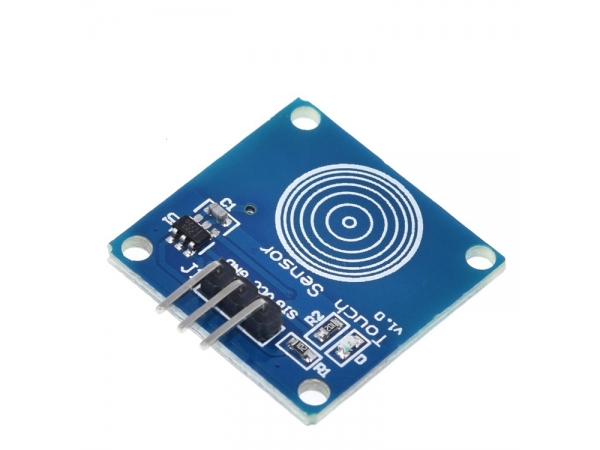

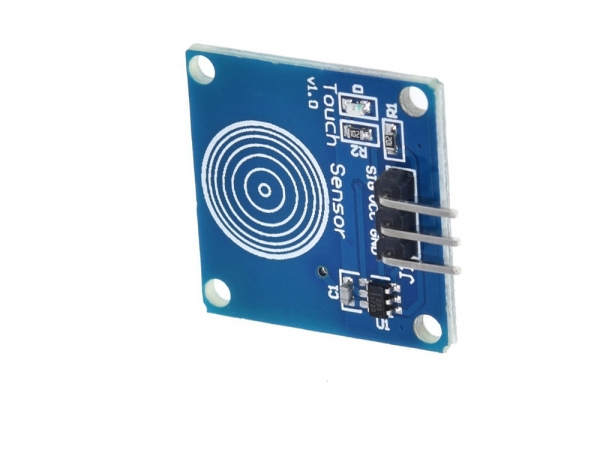

TTP223 Touch Key Switch Module TTP223B Touching Button Self-Locking/No-Locking Capacitive Switches Single Channel Reconstruction

The module is based on a touch-sensing IC  (TTP223B) capacitive touch switch module. In the normal state,
the module output  low, low power consumption; When a finger touches the corresponding position,
the module output high, if not touched for 12 seconds, switch to low-power mode.

Jog type : the initial state is low , high  touch , do not touch is low ( similar touch of a button feature )

Module can be installed in such as surface  plastic, glass of non-metallic materials

In addition to the thin paper ( non-metallic )  covering the surface of the module , as long as the correct location of the  touch ,
you can make hidden in the walls, desktops and other parts of buttons


Features:

Low power consumption

  • The module is based on a touch-sensing IC  (TTP223B) capacitive touch switch module. In the normal state,
    the module output  low, low power consumption; When a finger touches the corresponding position,
    the module output high, if not touched for 12 seconds, switch to low-power mode.

    Jog type : the initial state is low , high  touch , do not touch is low ( similar touch of a button feature )

    Module can be installed in such as surface  plastic, glass of non-metallic materials

    In addition to the thin paper ( non-metallic )  covering the surface of the module , as long as the correct location of the  touch ,
    you can make hidden in the walls, desktops and other parts of buttons


    Features:

    Low power consumption

    Power supply for 2 ~ 5.5V DC

    Can replace the traditional touch of a button

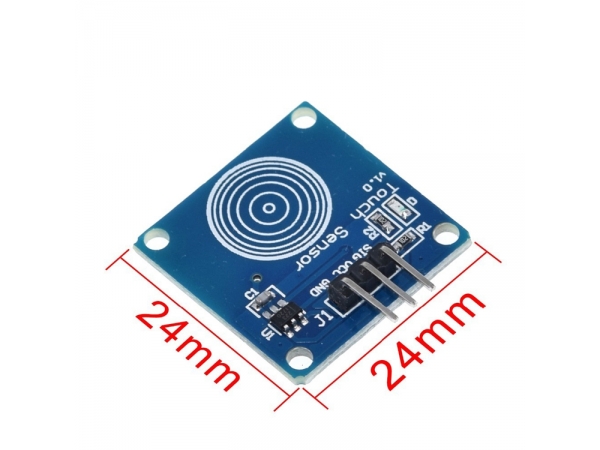

    Four M2 screws positioning holes for easy  installation
