Product parameter:
· Model: AS07-M1101S
· Chip: CC1101
· Maximum power: 10mW
· Air speed: 1.2K-500K
Product parameter:
· Model: AS07-M1101S
· Chip: CC1101
· Maximum power: 10mW
· Air speed: 1.2K-500K
· Package type: patch / plug-in 1*8*1.27 SIP
· Emission current: 29mA

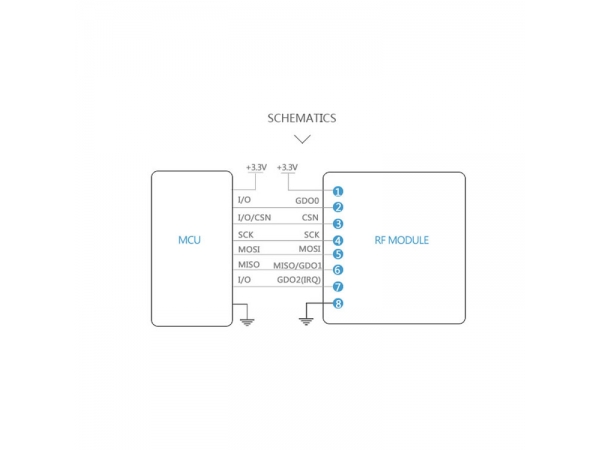

· Communication interface: SPI
· Central frequency band: 433M
· Voltage: 1.8-3.6V
· Antenna: spring /IPEX/ external

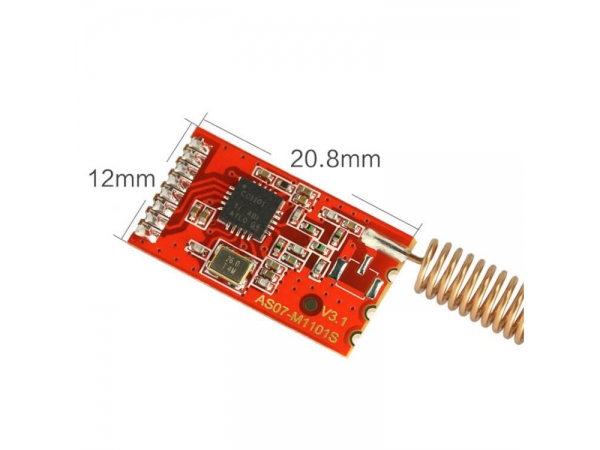

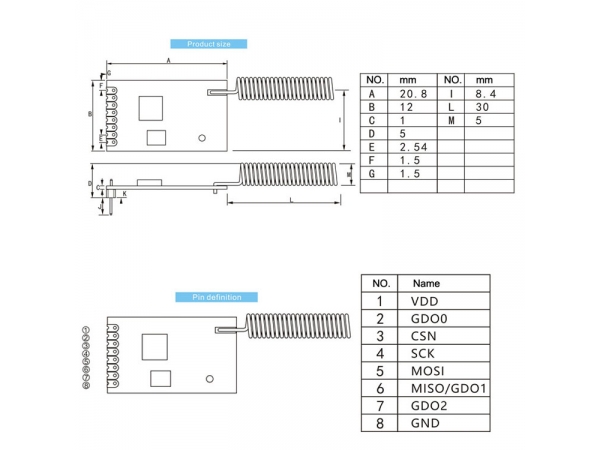

· Size: 12*20.8mm
· Reference distance: 1000M
