Application Environment:

Remote control switch, receiving module, motorcycle, car anti-theft product, home anti-theft product, electric door, rolling door, window, remote control socket, remote control LED, remote control audio, remote control electric door, remote control garage door, remote control retractable door, remote control shutter, pan Door control system such as door, remote control door opener, door closing machine, remote control curtain, alarm host, alarm, remote control motorcycle, remote control electric car, remote control MP3, etc.

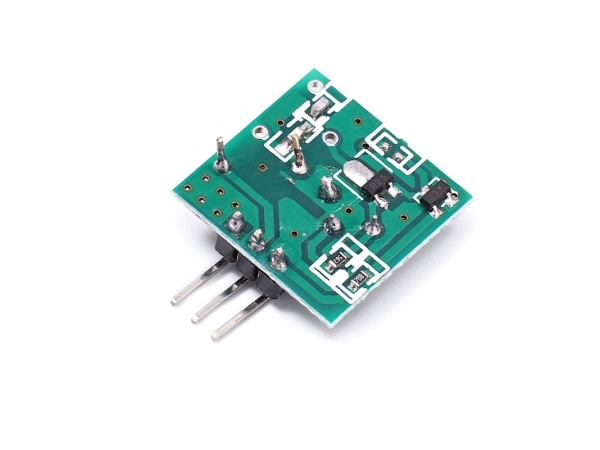

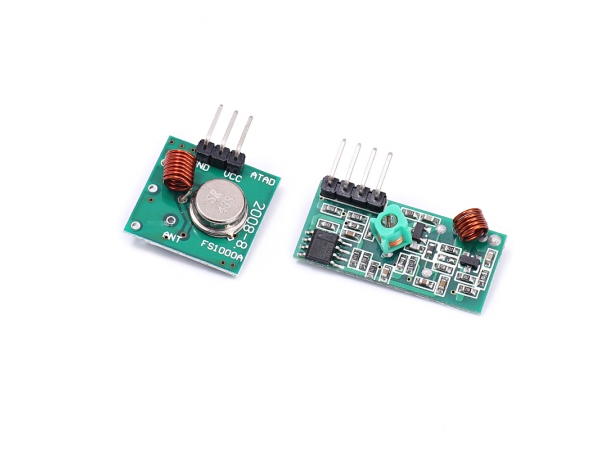

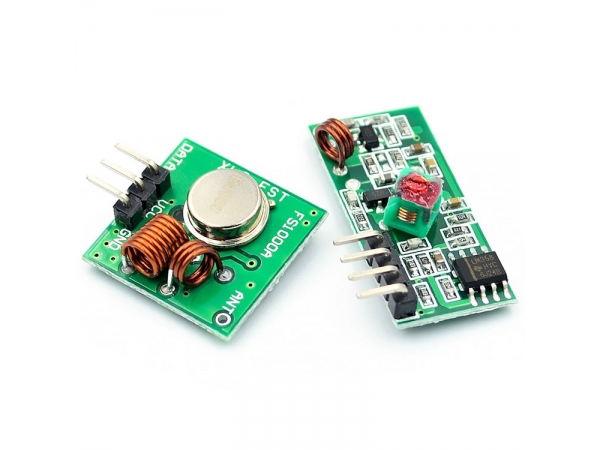

Transmitter technical parameters

Product model: MX-FS-03V

Emission distance: 20 - 200 meters (different voltage, different effects)

Operating voltage: 3.5-12V

Dimensions: 19*19mm

Working mode: AM

transmission rate: 4KB/S

transmission power: 10mW

Transmission frequency: 433M

External antenna: 25cm ordinary multi-core or single-core cable

Pin arrangement from left to right: ( DATA ; VCC ; GND )

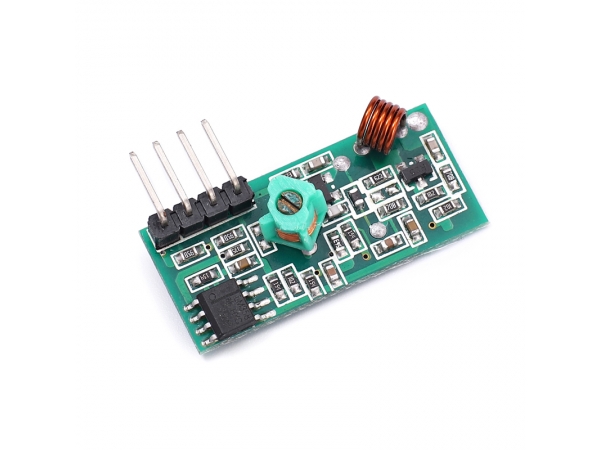

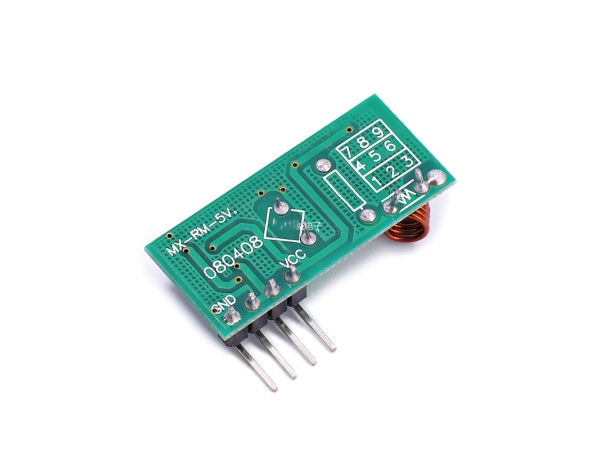

Receive module technical parameters

Actual working distance: 50-100 meters

Working voltage : DC5V

quiescent current:4MA

Receiving frequency: 433.92MHZ

Receive sensitivity: - 105DB

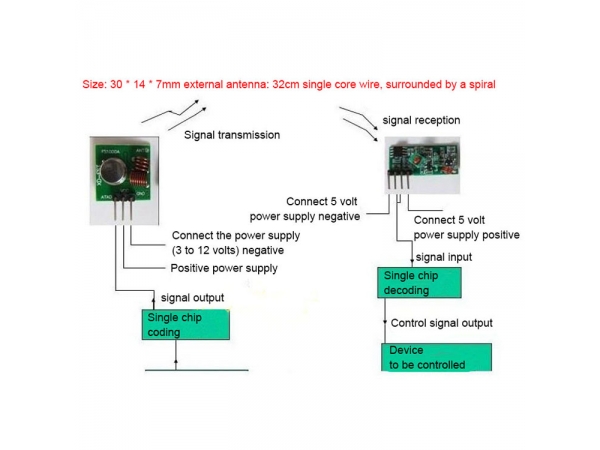

Size: 30*14*7mm

external antenna : 32CM single core wire ,spiraled
