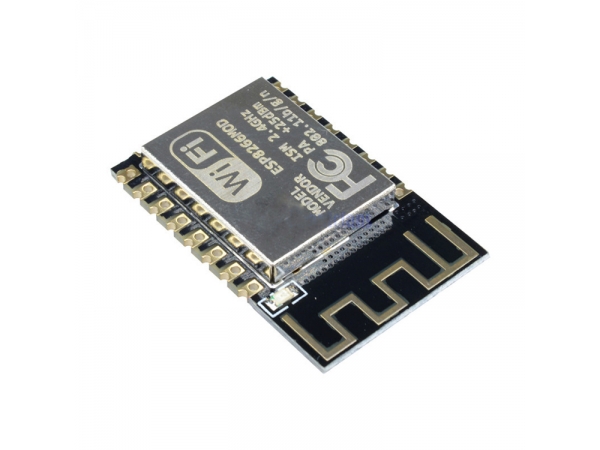

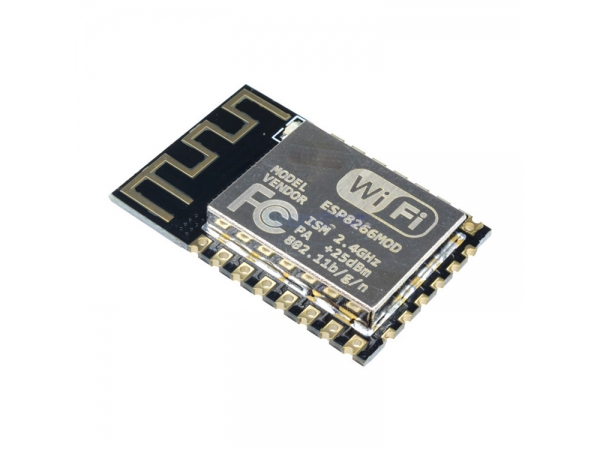

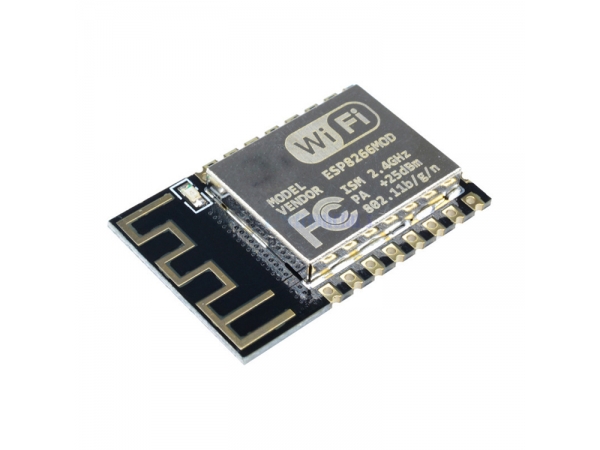

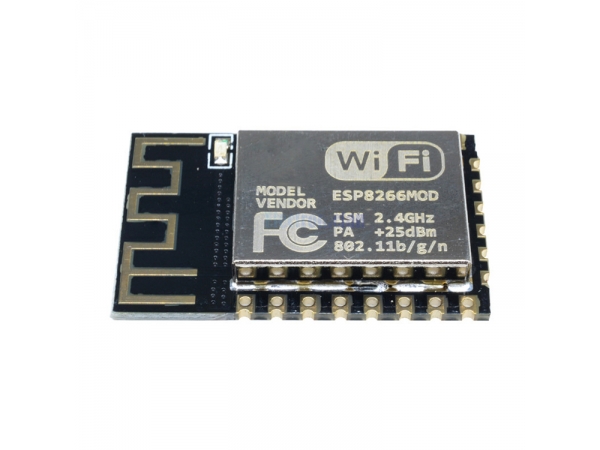

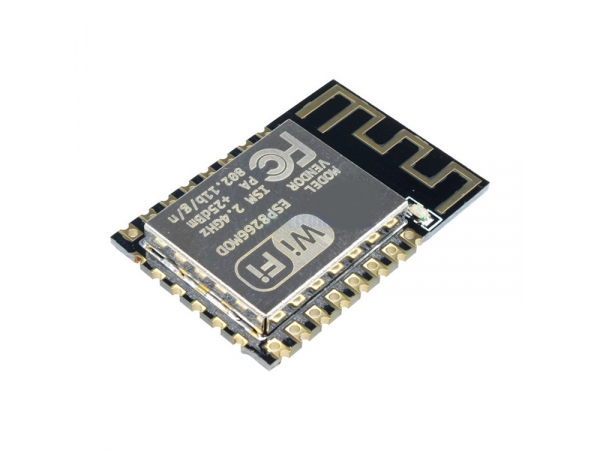

· Type:ESP-12F
· Standards Certification: FCC / CE / TELEC
· Wireless standards: 802.11 b / g / n
· Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M)
· Data interface: UART / HSPI / I2C / I2S / Ir Remote Contorl GPIO / PWM
· Type:ESP-12F
· Standards Certification: FCC / CE / TELEC
· Wireless standards: 802.11 b / g / n
· Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M)
· Data interface: UART / HSPI / I2C / I2S / Ir Remote Contorl GPIO / PWM
· Operating voltage: 3.0 ~ 3.6V (recommendation 3.3V)
· Working Current: Average: 80mA
· Operating temperature: -40 ° ~ 125 °
· Storage temperature: Nomal temperature
· Schematic
