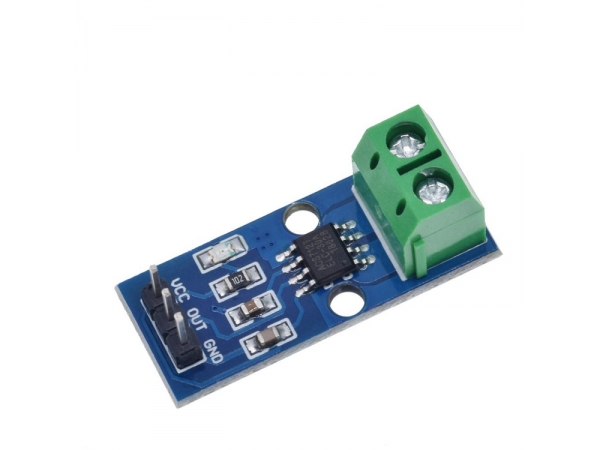

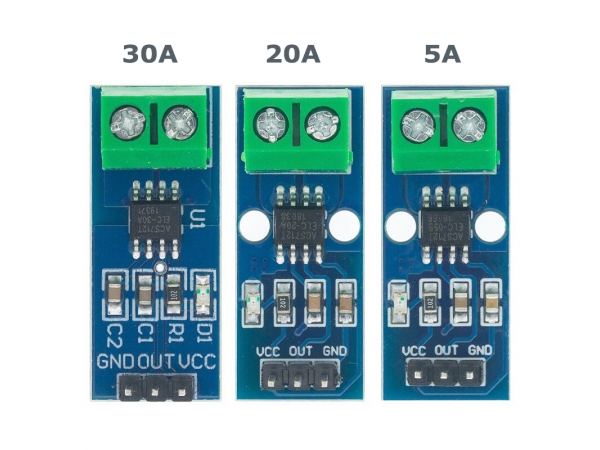

1.The current sensor chips: ACS712ELC-30A;
2.Pin 5V power supply, on-board power indicator;
3.The module can measure the positive and negative 30 amps, corresponding to the analog output 66mV / A;
4.No test current through the output voltage is VCC / 2;
