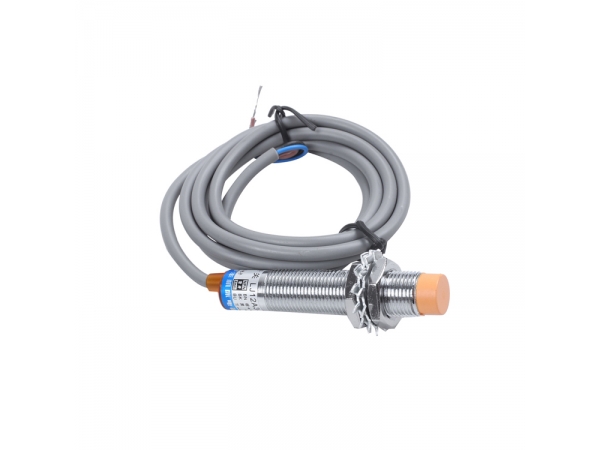

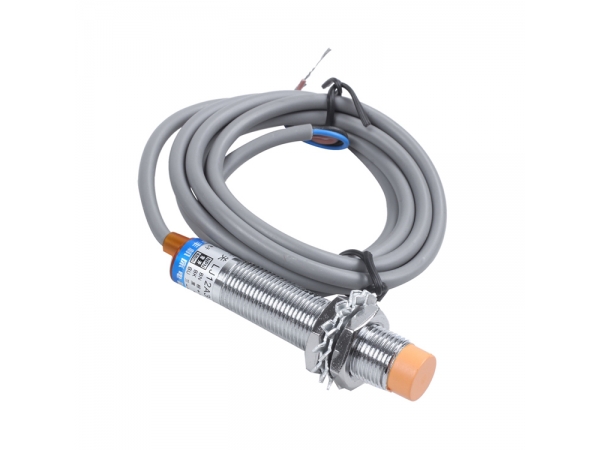

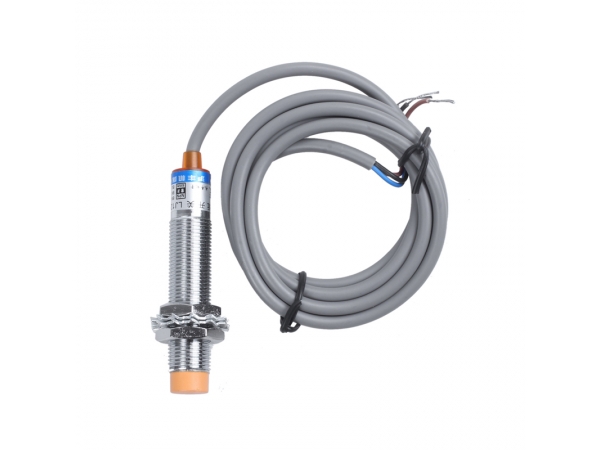

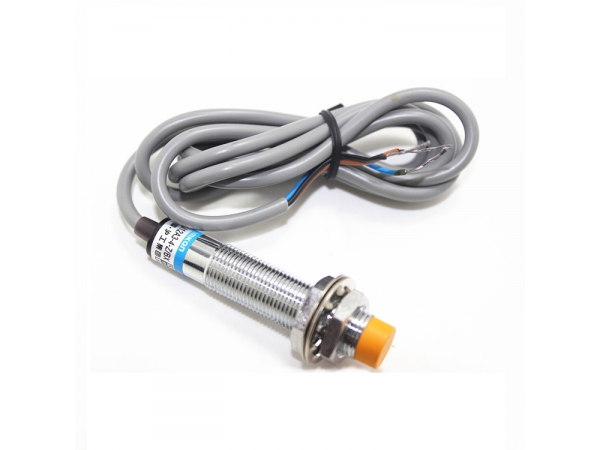

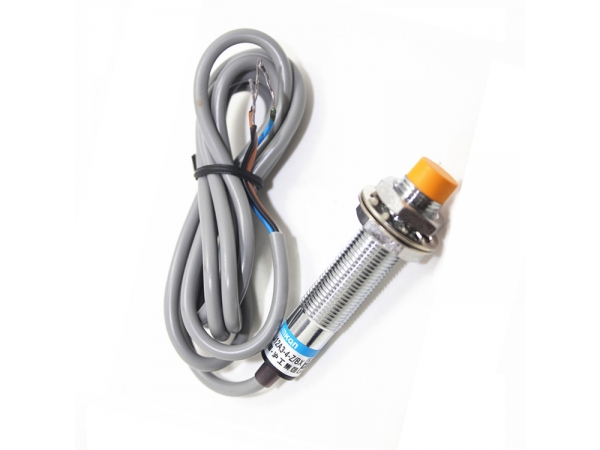

Product Name : Inductive Proximity Switch;
Model : LJ12A3-4-Z-BX;
Wire Type : 3 Wire Type (Black, Brown, Blue);
Switch Appearance Type : Cylinder Type
Theory : Inductive Sensor;
Output Type : NPN NO(Normal Open);
Thread Diameter : 12mm;
Head Diameter : 11.8mm/0.46"
Product Name : Inductive Proximity Switch;
Model : LJ12A3-4-Z-BX;
Wire Type : 3 Wire Type (Black, Brown, Blue);
Switch Appearance Type : Cylinder Type
Theory : Inductive Sensor;
Output Type : NPN NO(Normal Open);
Thread Diameter : 12mm;
Head Diameter : 11.8mm/0.46"
Detecting Distance : 4mm;
Supply Voltage : DC 6-36V;
Current Output : 300mA;
Response Frequency : 150Hz
Detect Object : Iron;
Operating Temperature : -25°C to +55°C (Non-freezing Condition);
Cable Length : 110cm/43.3"
External Material : Plastic, Alloy;
Net Weight : 44g;
Color : Silver Tone, Yellow, Gray;
Package Content : 1 x Inductive Proximity Switch
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.The measurement allowed error is +/-1-3 cm.
