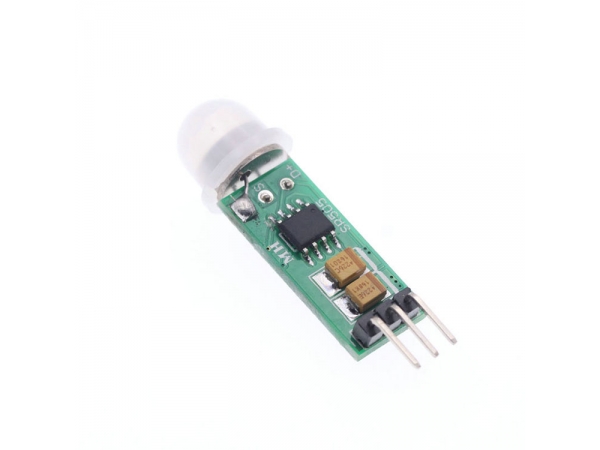

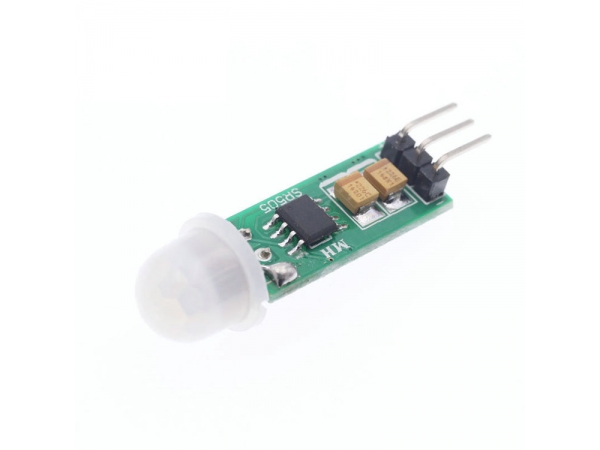

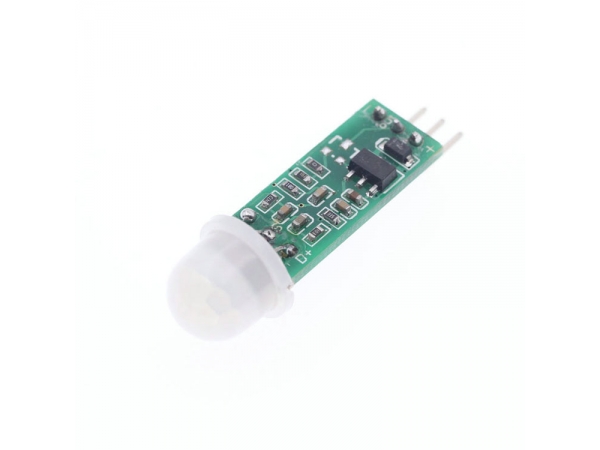

HC-SR505 Mini Infrared PIR Motion Sensor Precise Infrared Detector Module H
HC-SR505 small body sensing module is based on infrared technology, automatic control products,
high sensitivity, high reliability, ultra-small, ultra-low-voltage operation mode.
Widely used in various auto-sensing of electrical equipment, especially battery-powered automatic control products.
Technical parameters:
Operating Voltage Range: DC4.5-20V
Static current: <60uA
Output level: High 3.3V / Low 0V
HC-SR505 Mini Infrared PIR Motion Sensor Precise Infrared Detector Module H
HC-SR505 small body sensing module is based on infrared technology, automatic control products,
high sensitivity, high reliability, ultra-small, ultra-low-voltage operation mode.
Widely used in various auto-sensing of electrical equipment, especially battery-powered automatic control products.
Technical parameters:
Operating Voltage Range: DC4.5-20V
Static current: <60uA
Output level: High 3.3V / Low 0V
Trigger: repeatable trigger (default)
Delay time: Default 8S + -30% (can be customized range of a few tenths - tens of minutes)
PCB Dimensions: 10 * 23mm
Induction angle: <100 degree cone angle
Induction distance: 3 meters
Working temperature: -20 - +80 degrees

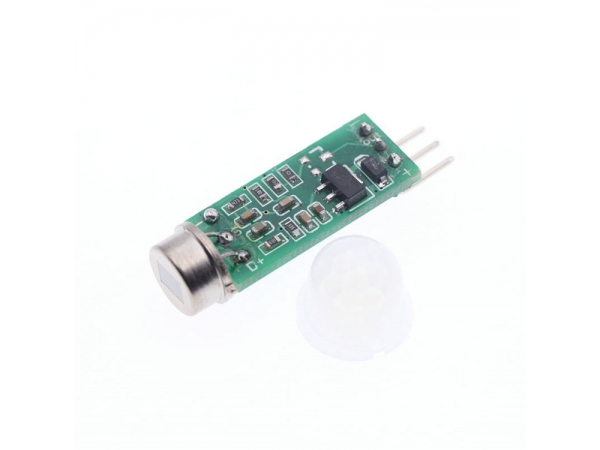

Sensor Lens Dimensions: Diameter: 10mm (default)
