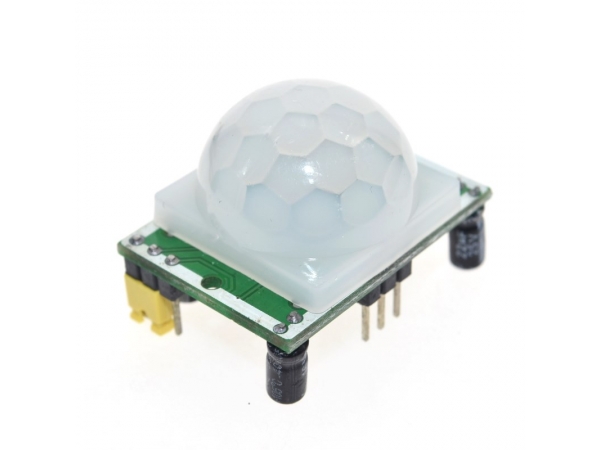

product Type: HC--SR501 Body Sensor Module
Operating voltage range: DC 4.5-20V
Quiescent Current: <50uA
Level output: High 3.3 V /Low 0V

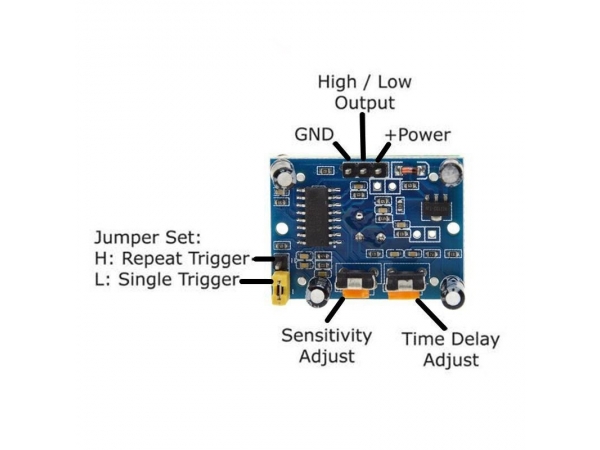

Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger)
Delay time: 5-200S(adjustable) the range is (0.xx second to tens of second)
product Type: HC--SR501 Body Sensor Module
Operating voltage range: DC 4.5-20V
Quiescent Current: <50uA
Level output: High 3.3 V /Low 0V
Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger)
Delay time: 5-200S(adjustable) the range is (0.xx second to tens of second)
Block time: 2.5S(default)Can be made a range(0.xx to tens of seconds

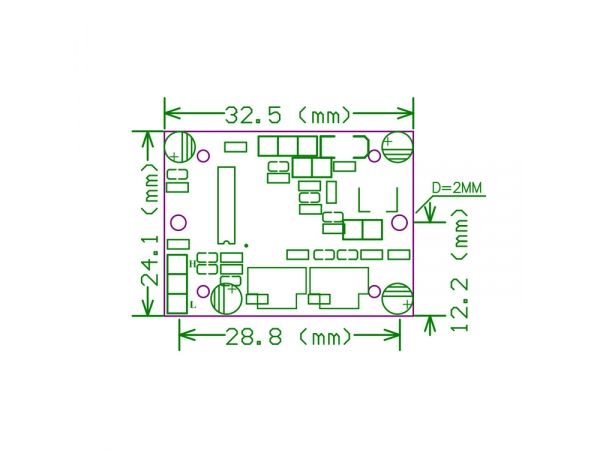

Board Dimensions: 32mm*24mm
Angle Sensor: <100 ° cone angle
Operation Temp: -15-+70 degrees
Lens size sensor: Diameter:23mm(Default)
 |
