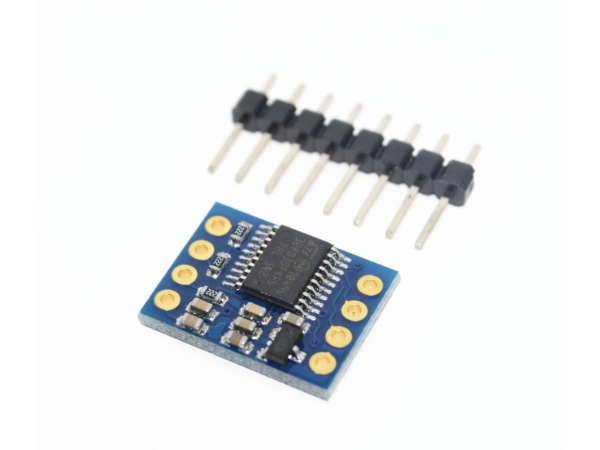

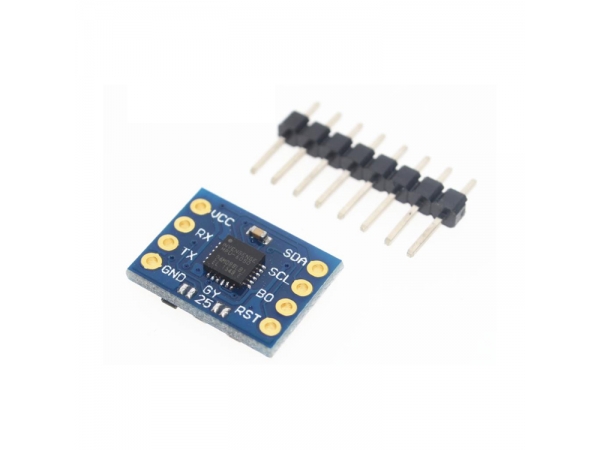

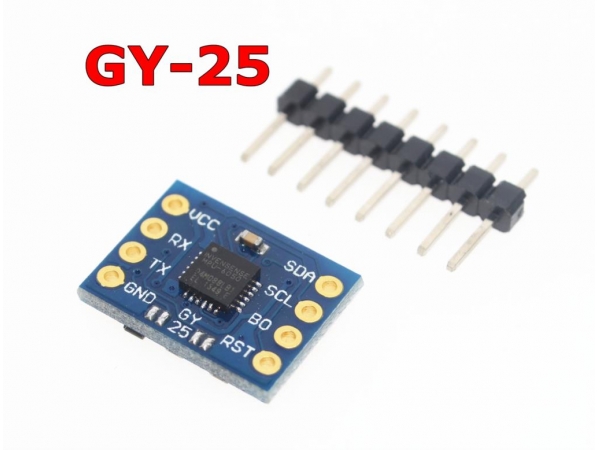

GY-25 Tilt Angle Module Serial Output Angle Data Directly MPU-6050 Module
GY-25 MPU-6050 MPU6050 Tilt Angle Module Serial Output Angle Data Directly Module GY 25 GY25
GY-25 GY-25Z tilt angle module Serial output angle data MPU-6050 module
GY-25 Tilt Angle Module Serial Output Angle Data Directly
Main Features
1. Model: GY-25
2. Chip: MPU-6050
3. Power voltage: 3 - 5V
4. Communication mode: Serial communication ( baud 9600,115200 ), IIC communication

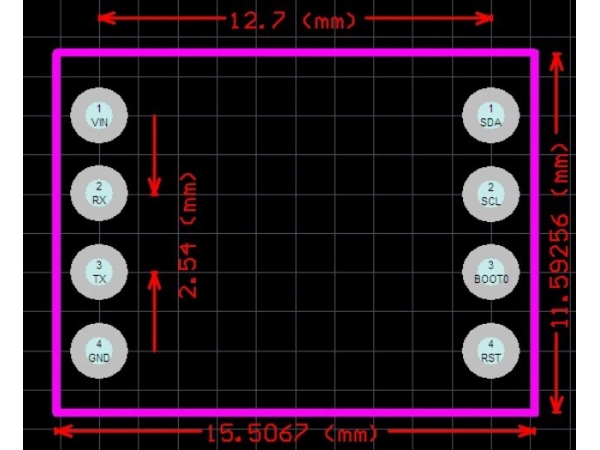

5. Model Size: 15.5mm*11.5mm
6. Pitch: 2.54mm
7. Direct Data: YAW ROLL PITCH
8. Heading angle (YAW ): ± 180°
9. Roll angle (ROLL): ± 180 °
10. Pitch angle (PITCH): ± 180°
11. Angular Resolution: 0.01°
