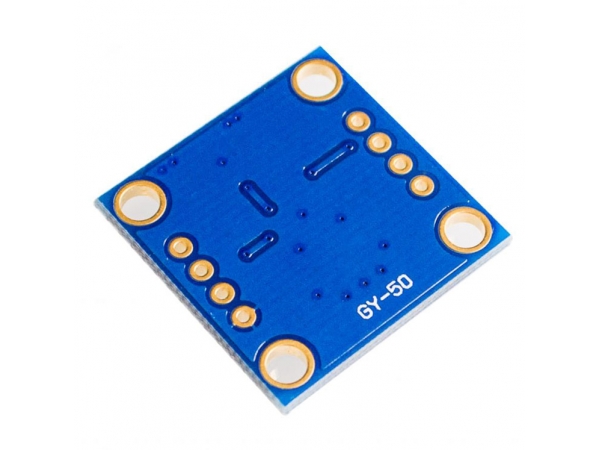

GY-50 L3G4200D Triple Axis Gyro Angular Velocity Sensor Module MWC in stock high quality
L3G4200D Triple Axis Gyro Angular Velocity Sensor Board Module
GY-50 L3G4200D Axis Digital Gyroscope Sensor Module Angular Velocity Module FZ0626
GY-50 L3G4200D 3 Axis Digital Gyroscope Sensor Module Angular Velocity Module

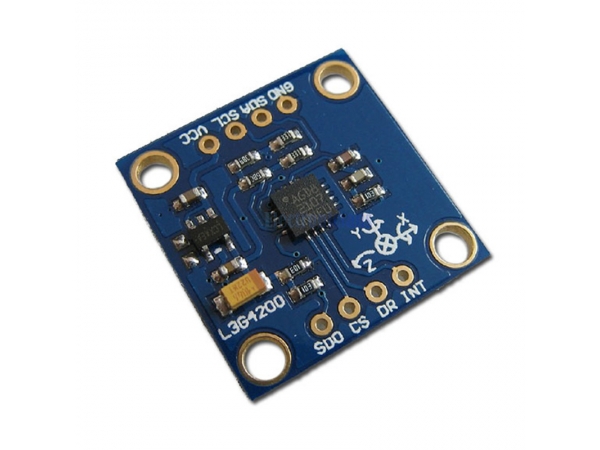

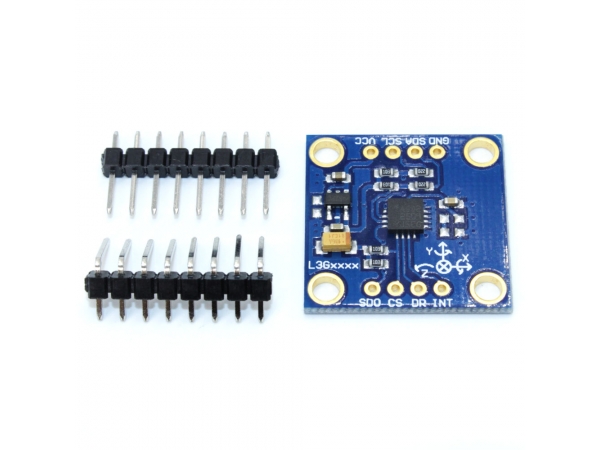

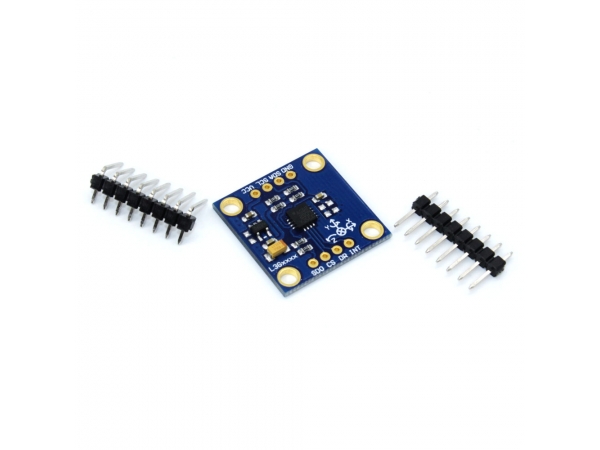

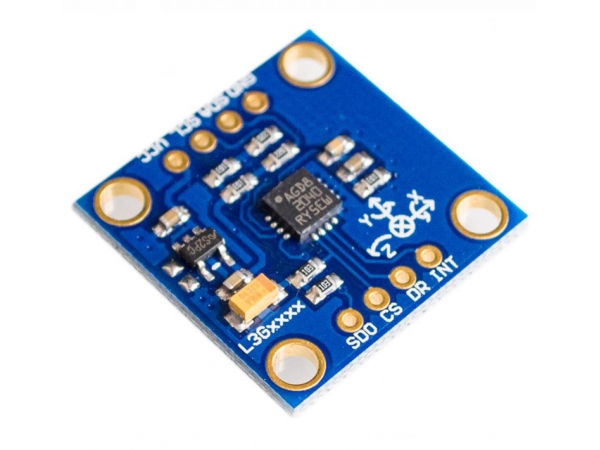

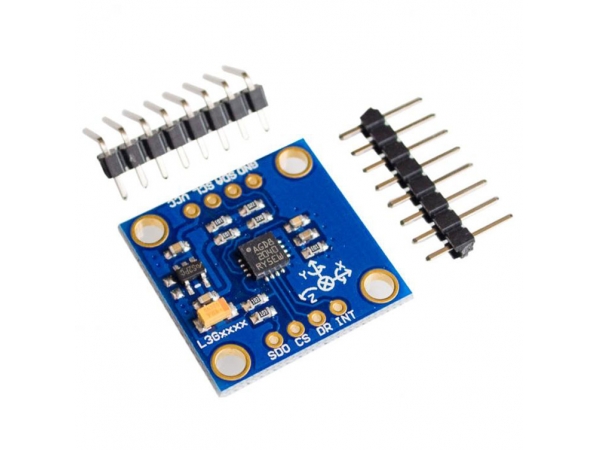

This is a breakout board for the L3G4200D low-power three-axis angular rate sensor.
The L3G4200D has a full scale of ±250/±500/±2000 dps and is capable of measuring rates with a user-selectable bandwidth.
These work great in gaming and virtual reality input devices, GPS navigation systems and robotics.
L3G4200D Features:
Three selectable full scales (250/500/2000 dps)
I2C/SPI digital output interface
16 bit-rate value data output
8-bit temperature data output
Two digital output lines (interrupt and data ready)
Integrated low- and high-pass filters with user selectable bandwidth
Ultra-stable over temperature and time
Wide supply voltage: 2.4-3.6V
Low voltage-compatible IOs (1.8V)
Embedded power-down and sleep mode
Embedded temperature sensor
Embedded FIFO
High shock survivability
Extended operating temperature range (-40 ° to +85 °)
Dimension:16mm*17mm
