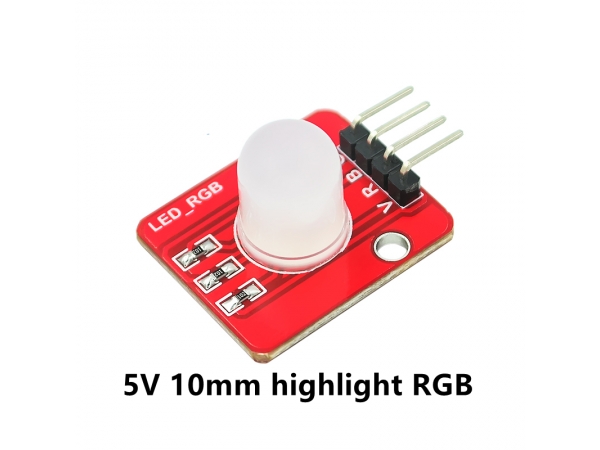

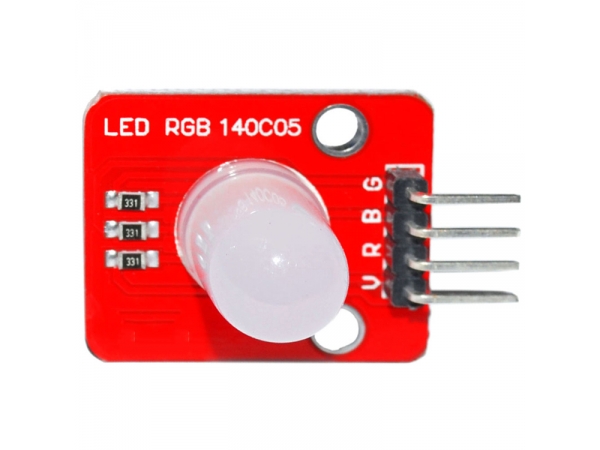

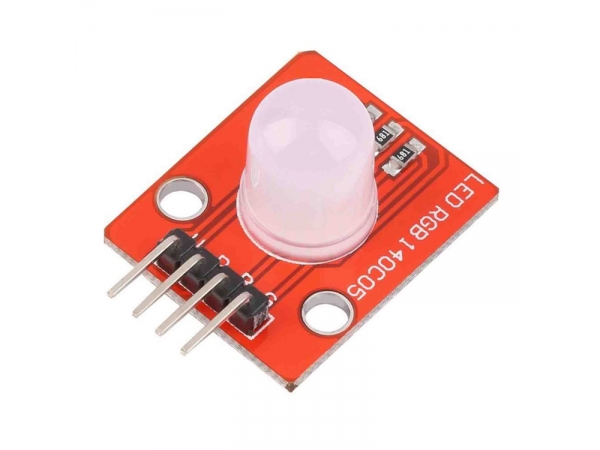

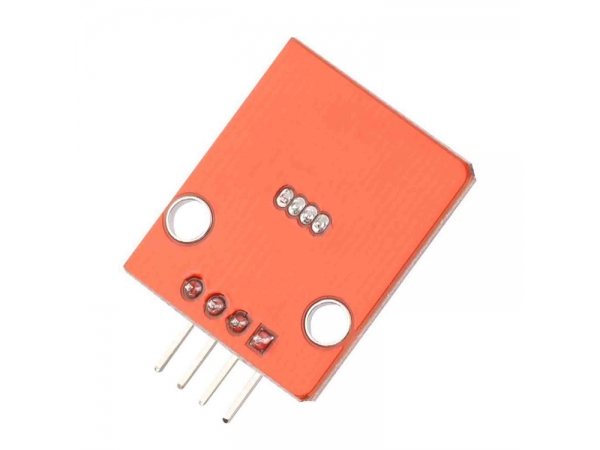

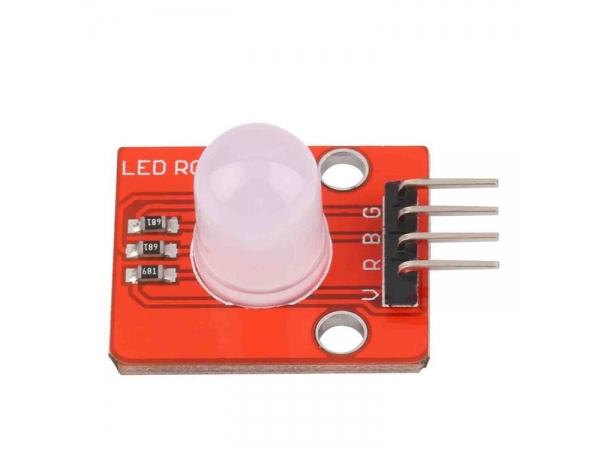

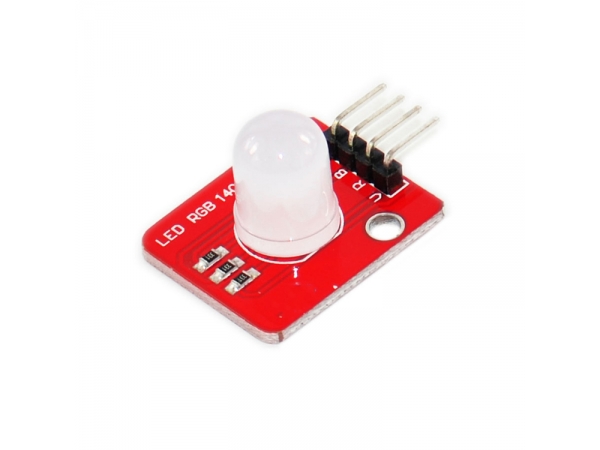

10MM RGB LED Module Light Emitting Diode STM32 5V M92

RGB full-color LED module electronic building block 5V three-color compatible 10mm

high-brightness RGB full-color LED module

10MM RGB LED Module STM32 5V M92

10MM RGB LED Module Light Emitting Diode STM32 5V M92 Diy Electronic PCB Board

1. Product parameters:

Size: 25*21mm

Weight: 4g

Color: full color red, green and blue three primary colors

Brightness: highlight

Voltage: 5V

Input: digital level

Interface: Arduino 4P interface

Platform: development board, single-chip microcomputer

10MM RGB LED Module Light Emitting Diode STM32 5V M92

RGB full-color LED module electronic building block 5V three-color compatible 10mm

high-brightness RGB full-color LED module

10MM RGB LED Module STM32 5V M92

10MM RGB LED Module Light Emitting Diode STM32 5V M92 Diy Electronic PCB Board

1. Product parameters:

Size: 25*21mm

Weight: 4g

Color: full color red, green and blue three primary colors

Brightness: highlight

Voltage: 5V

Input: digital level

Interface: Arduino 4P interface

Platform: development board, single-chip microcomputer

2. Product features:

The principle of three primary colors displays multiple colors

Realize full-color display through PWM port control

PWM interface can be directly driven

Test code:

int redpin = 11; //select the pin for the red LED

int bluepin =10; // select the pin for the blue LED

int greenpin =9;// select the pin for the green LED

int val;

void setup() {

pinMode(redpin, OUTPUT);

pinMode(bluepin, OUTPUT);

pinMode(greenpin, OUTPUT);

Serial.begin(9600);

}

void loop()

{

for(val=255; val>0; val--)

{

analogWrite(11, val);

analogWrite(10, 255-val);

analogWrite(9, 128-val);

delay(1);

}

for(val=0; val<255; val++)

{

analogWrite(11, val);

analogWrite(10, 255-val);

analogWrite(9, 128-val);

delay(1);

}

Serial.println(val, DEC);

}
