stepper motor drive board (five line, four phase) drive panel (ULN2003) test board
Driver board Five-wire four-phase/stepping motor driver board/drive board (ULN2003)/test board

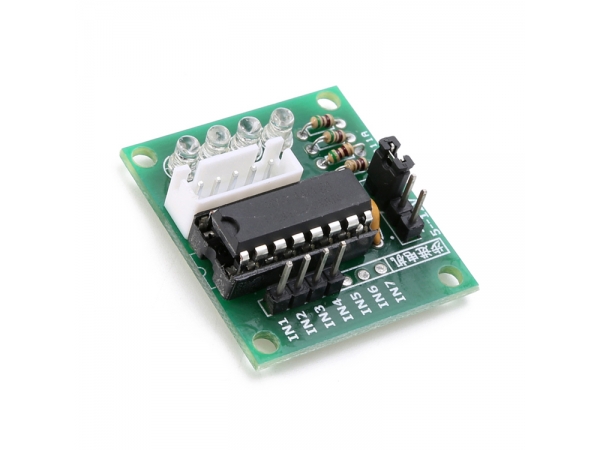

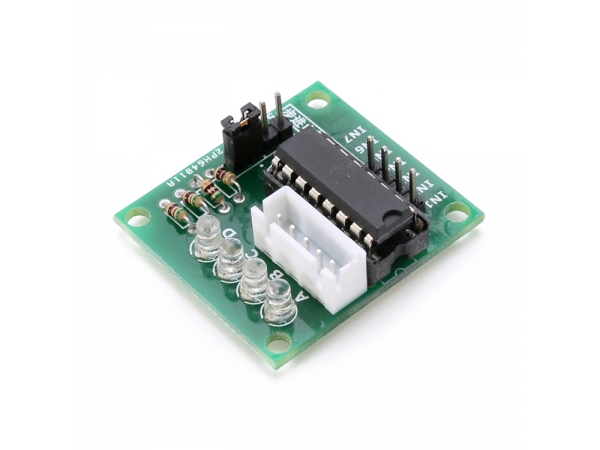

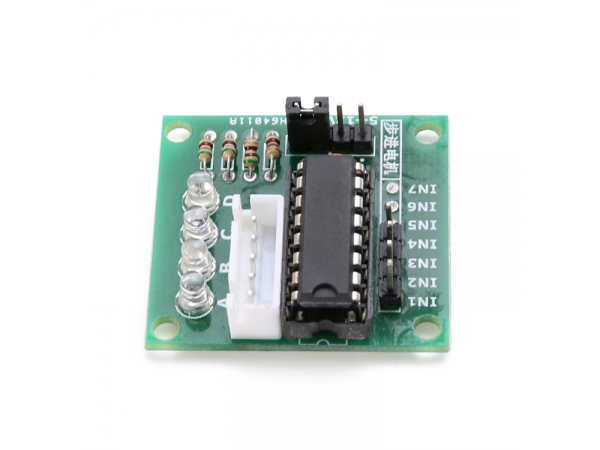

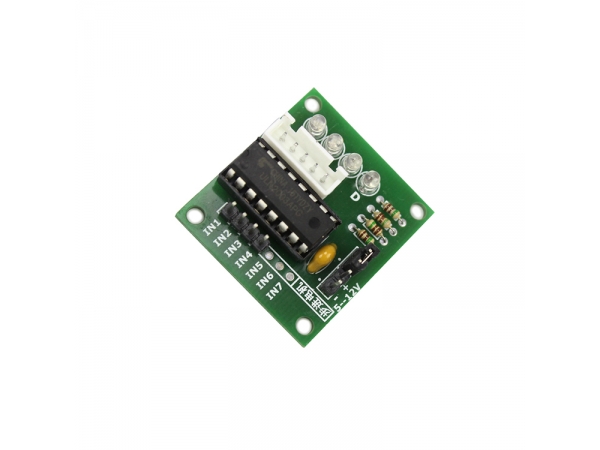

ULN2003 5 Line 4 phase Stepper Motor Driver Board Test Module AVR SMD New product
Diy more 5V/12V 28BYJ-48 4-Phase Stepper Motor with ULN2003 Driver Board
Description:
ULN2003 is a high voltage and high current Darlington transistor array products with high current gain, high operating voltage, wide temperature range, with a strong load capacity and other characteristics, adapted to the requirements of various types of high-speed high-power drive system. ULN2003A circuit is the United States Texas Instruments and Sprague company developed high-voltage high-current Darlington transistor array circuit, the paper describes its circuit structure, characteristic parameters and typical applications.
Features:
1. Using ULN2003 high-power Darlington chip-driven stepper motor
2. Increased output expansion interface.
3.A, B, C, D light-emitting diode instructions four-phase stepper motor work with the state of the standard stepper motor interface, can be used directly plug.
