Sensor Module

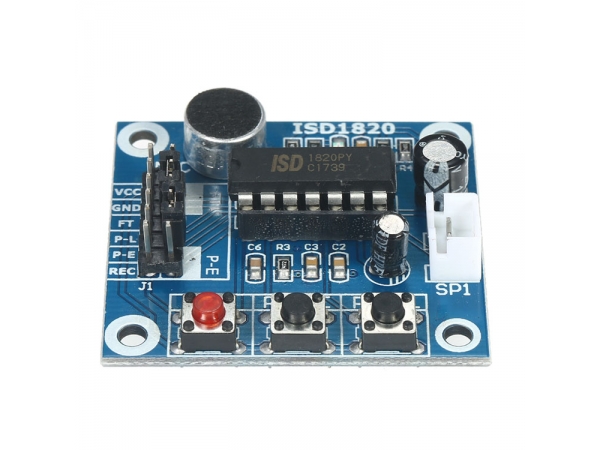

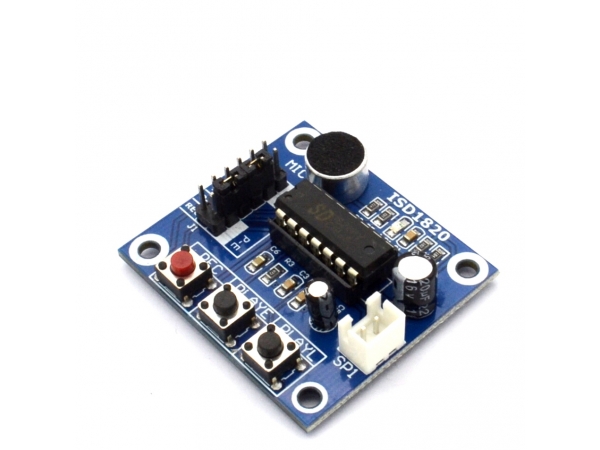

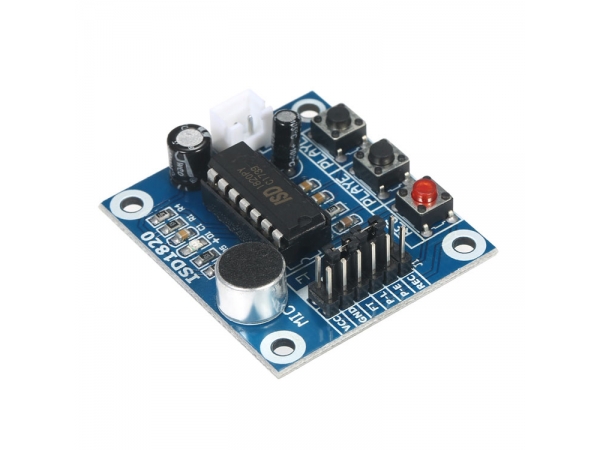

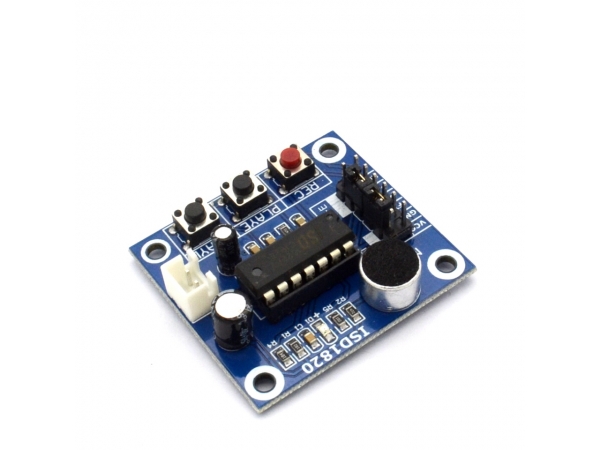

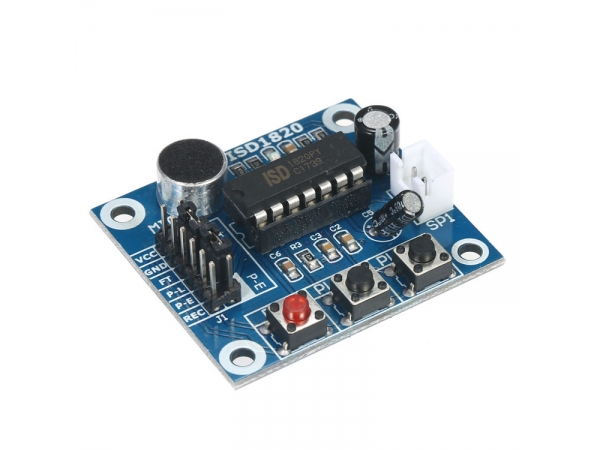

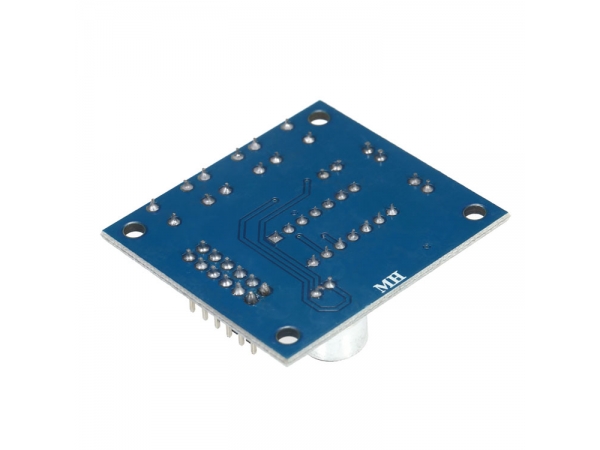

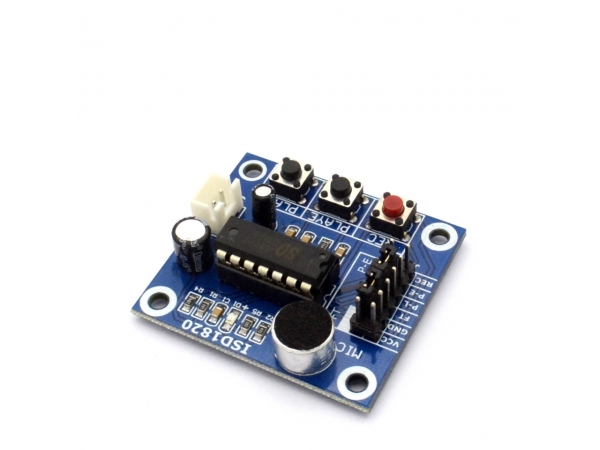

ISD1820 Sound Voice Recording Playback Module Mic Sound Audio Telediphone Control Drive Board With Microphone Micro phone 3V 5V

ISD1820 Sound Voice Recording Playback Module Mic Sound Audio Telediphone Control Drive Board With Microphone Micro phone 3V 5V

ISD1820 3-5V Recording Module Voice Module The Voice Board Telediphone Module Board with Microphones

ISD1820 Voice Recording Recorder Module With Mic Sound
Description
the main chip: ISD1820
size: 38 * 42.5mm
the working voltage: DC 3 ~ 5V
features:
1.An easy to use 10 seconds of voice recording
2.high-quality, natural voice restored
3.can be used as propaganda module
4.with looping, jog playback, single-pass play function
5.available single-chip control
6.this module can directly drive a small speaker 8 ohm 0.5W

Power supply :3-5V, which can be accessed pin power;
Audio recording control mode: the key to control or microcontroller, IO has drawn the line of control;
Buttons control audio recording method of operation:
REC button: record button, you can press and hold the recording, release the button to stop recording;
RLAYE key: trigger mode playback, press will play this whole speech;
PLAYL key: jog mode playback, press and hold until playback, release to stop playback;
RPL Jumper: loop mode control, loop playback;
FT Jumper: direct control, microphone voice through the speaker can playback;
  • ISD1820 Sound Voice Recording Playback Module Mic Sound Audio Telediphone Control Drive Board With Microphone Micro phone 3V 5V

    ISD1820 3-5V Recording Module Voice Module The Voice Board Telediphone Module Board with Microphones

    ISD1820 Voice Recording Recorder Module With Mic Sound
    Description
    the main chip: ISD1820
    size: 38 * 42.5mm
    the working voltage: DC 3 ~ 5V
    features:
    1.An easy to use 10 seconds of voice recording
    2.high-quality, natural voice restored
    3.can be used as propaganda module
    4.with looping, jog playback, single-pass play function
    5.available single-chip control
    6.this module can directly drive a small speaker 8 ohm 0.5W

    Power supply :3-5V, which can be accessed pin power;
    Audio recording control mode: the key to control or microcontroller, IO has drawn the line of control;
    Buttons control audio recording method of operation:
    REC button: record button, you can press and hold the recording, release the button to stop recording;
    RLAYE key: trigger mode playback, press will play this whole speech;
    PLAYL key: jog mode playback, press and hold until playback, release to stop playback;
    RPL Jumper: loop mode control, loop playback;
    FT Jumper: direct control, microphone voice through the speaker can playback;
