Product Overview:
Support MP3 format, playing power on automatically.When mp3 is played the red LED flashes
Support U disk (test 32G), TF Card (test 16G) play mode; power on default TF card mode, if the TF card does not exist automatically jump to the U disk mode,and both devices have installed,then you can manually set the play mode.For details please see the key operating instructions
Buttons can be adjusted up and down to control songs,volume up and down, pause or play, mode switching.For details please see the key operating instructions
Press menu button enter the single/all song play mode.
The default mode is the all song mode when power up.Pressing the Repeat button can replace the circulating mode

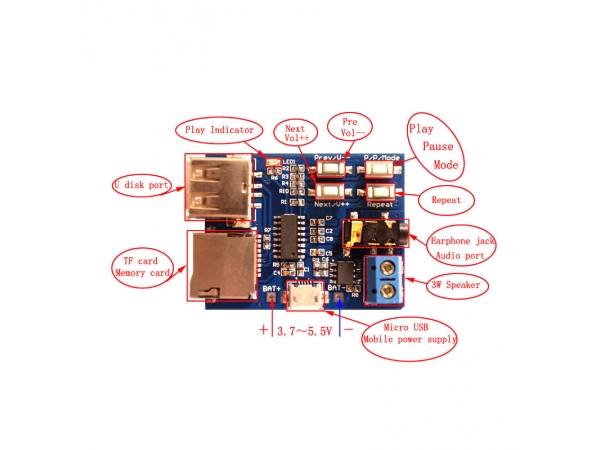

Key Operating Instructions:
"Prev / V--" button: "Press" for switching previous song, "long press" for volume down
"Next/v++" button: "Press" for switching next song, "long press" for volume up
"P / P / Mode" button: "Press" for the "Play/Pause" Switch, "long press" for U disk, TF card mode
"Repeat" button: "Press" for “single/all song" mode(no long press)
Note:
"Long press" approximate 2S
If you use U disk mode, it is recommended 5V power supply, and some U disk does not support 3.7V power supply

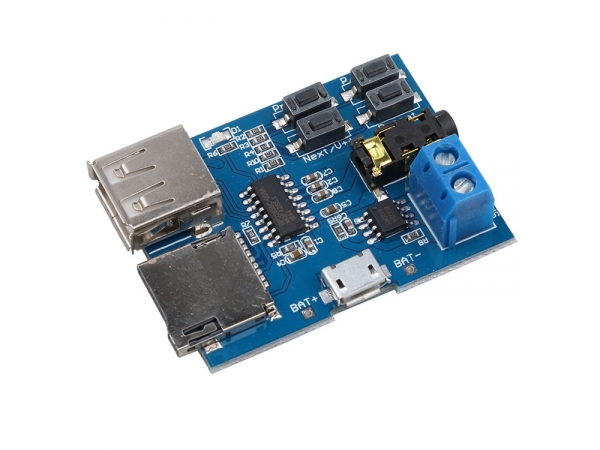

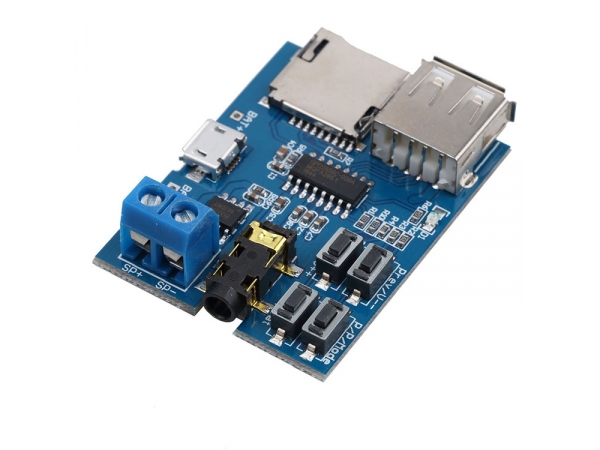

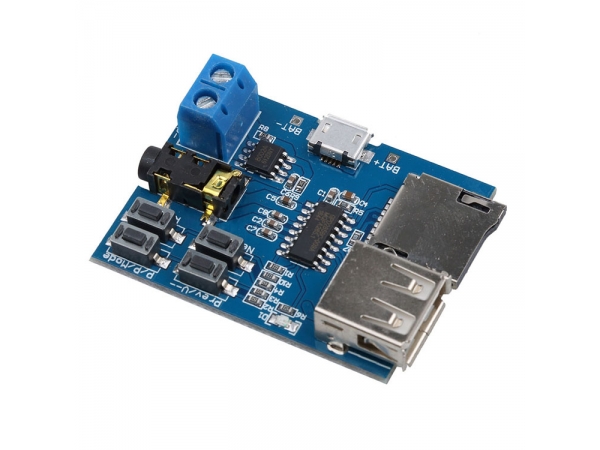

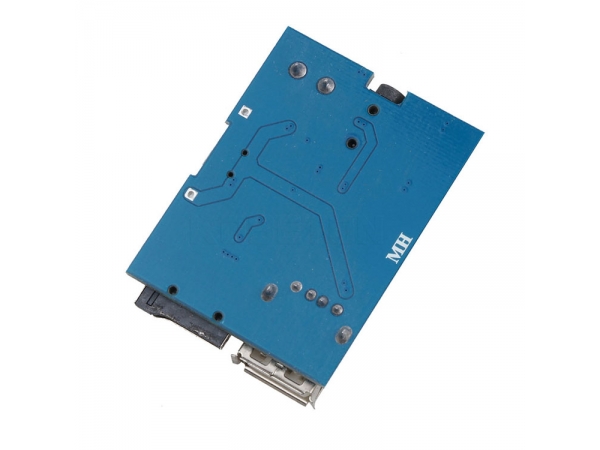

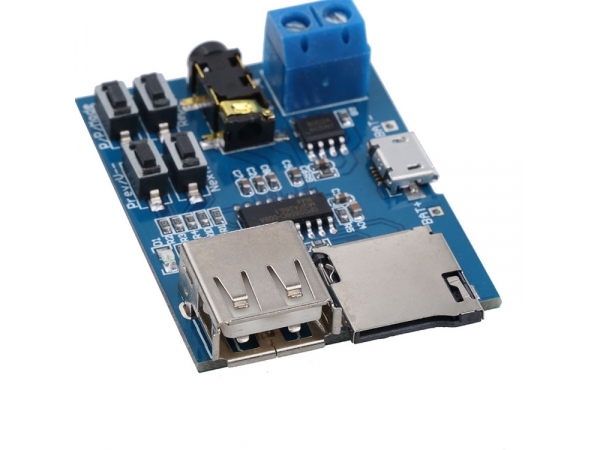

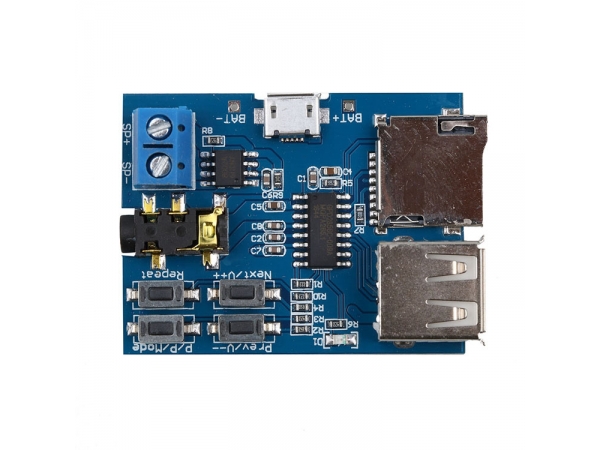

Exquisite double board design, large area of copper, stable and reliable
