Sensor Module

< >

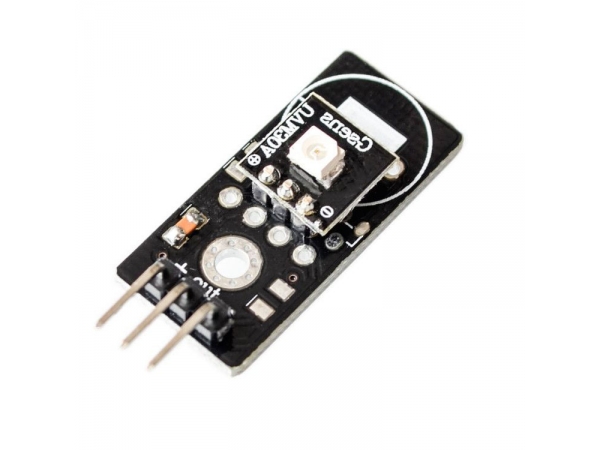

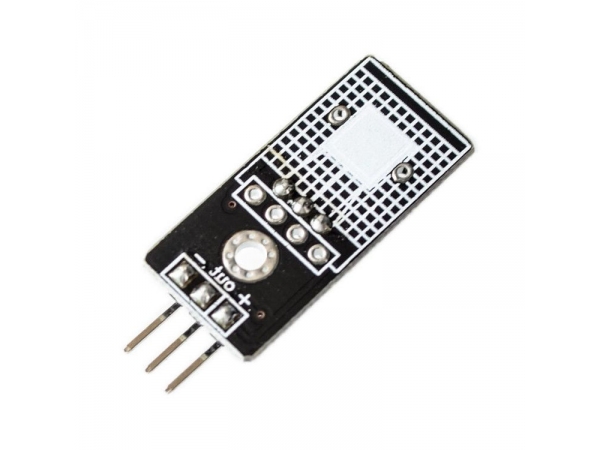

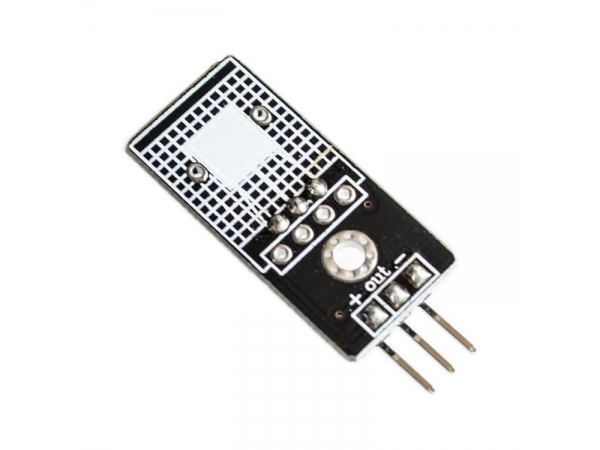

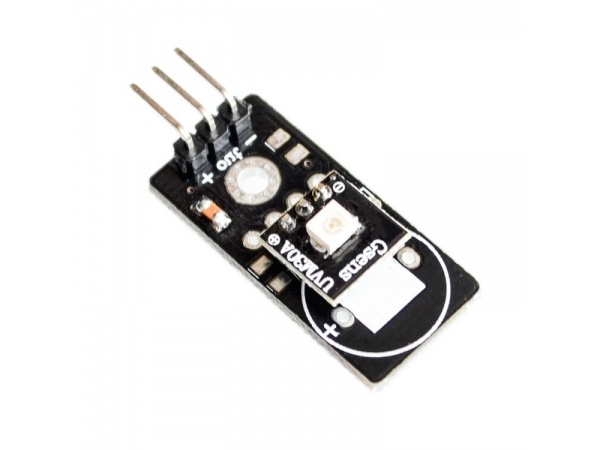

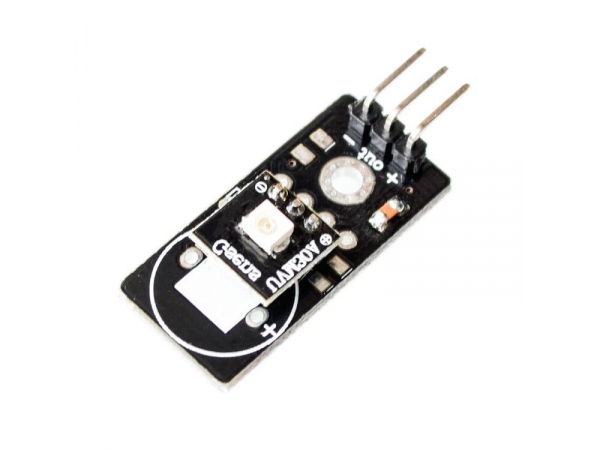

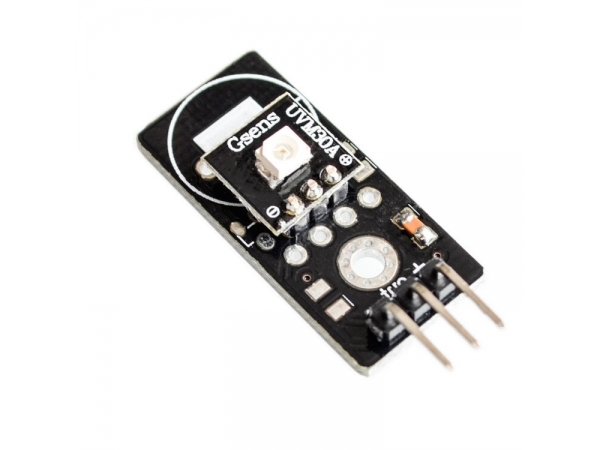

New UVM-30A UV Ultraviolet Ray Detection Sensor Module 3-5V Sepecial offer

New UVM-30A UV Ultraviolet Ray Detection Sensor Module 3-5V Sepecial offer
long size : 28mm X 12mm X height 10mm width
Second, the main name : UV detection sensor
Three characteristics:
Operating voltage : DC 3-5V
Output voltage : DC 0-1V
Test accuracy : ± 1UV INDEX
Operating Current: 0.06mA max 0.1mA typ
Response Wavelength : 200nm-370nm
job stability : -20 ° -85 °

New UVM-30A UV Ultraviolet Ray Detection Sensor Module 3-5V Sepecial offer
long size : 28mm X 12mm X height 10mm width
Second, the main name : UV detection sensor
Three characteristics:
Operating voltage : DC 3-5V
Output voltage : DC 0-1V
Test accuracy : ± 1UV INDEX
Operating Current: 0.06mA max 0.1mA typ
Response Wavelength : 200nm-370nm
job stability : -20 ° -85 °

◆ designed for applications requiring high reliability and precision measuring UV Index (UVI) designed for the occasion ;

◆ suitable for measuring the amount of UV intensity of sunlight ;

◆ control World Health Organization classification standard UV Index

◆ UV detection wavelength :200-370nm;

◆ fast response , full interchangeability ;

◆ Using a patented solid polymer structure , waterproof and dustproof easy to clean ;

◆ linear voltage signal output ;

◆ small size , suitable for mobile phones and other portable products .
