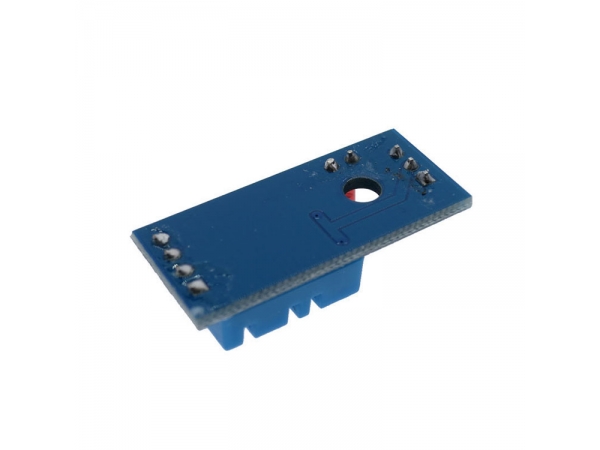

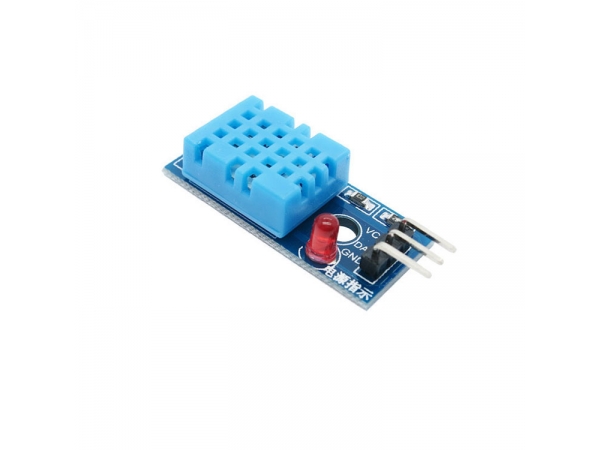

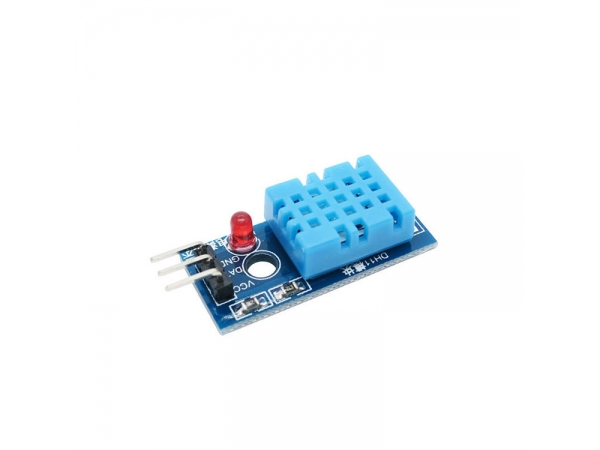

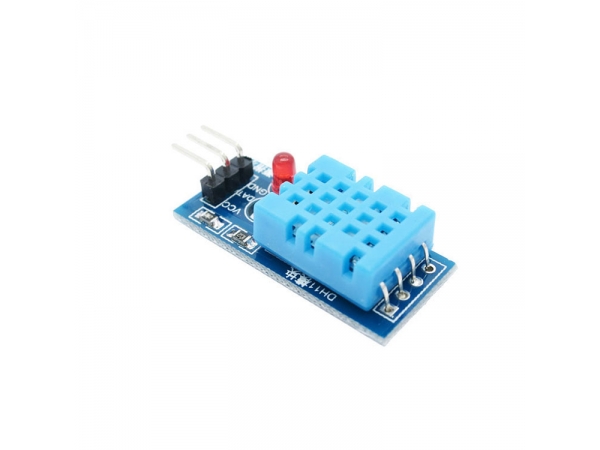

DHT11 sensor adopts
The module can detect surrounding environment of the humidity and temperature
High reliability and excellent long-term stability
Output form digital output
Has fixed bolt hole (3mm) and easy installation

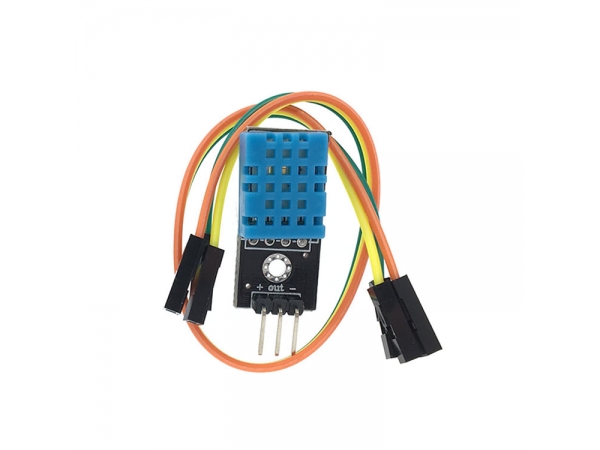

Cables are free for you
Four, features:
1, humidity measuring range: 20 --- 90% RH
2, humidity measurement accuracy: ± 5% RH
3, the temperature measuring range: 0 --- 50 ‘C
4, the temperature measurement accuracy: ± 2 ‘C
5, the working voltage: DC5V / 3.3V
6, the digital signal output
7, data port pull-up resistor
8, with a fixed screw hole, diameter 2.6mm
V. wiring methods:
VCC → 3.3V / 5V power supply positive
GND → negative power supply
DATA → microcontroller IO port
Tips: Do not reverse VCC and GND, reverse will burn!
