Sensor Module

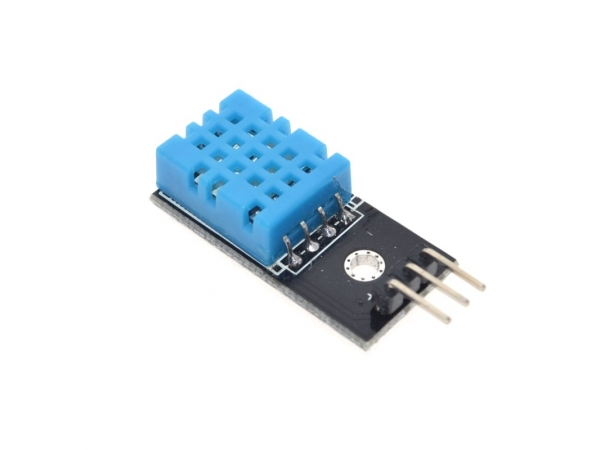

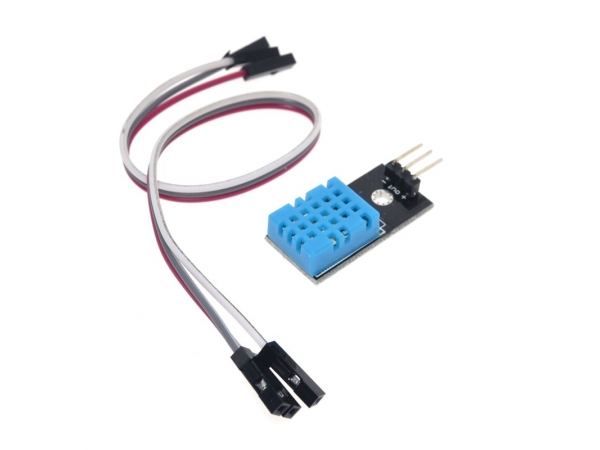

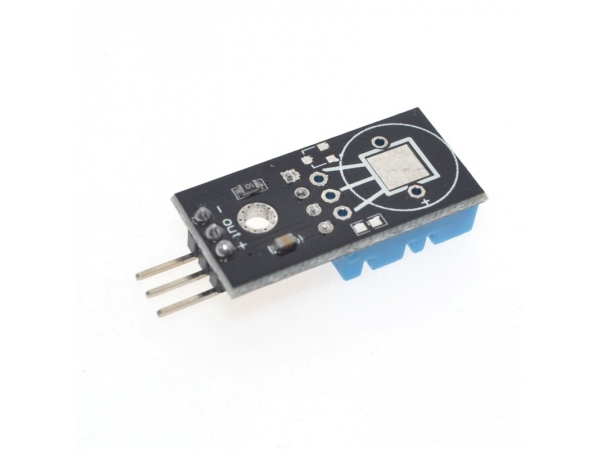

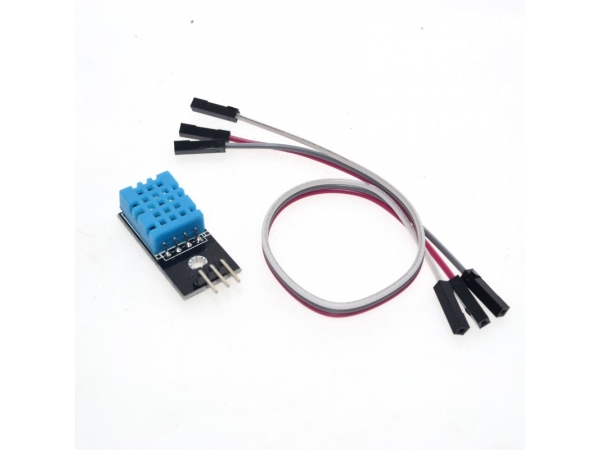

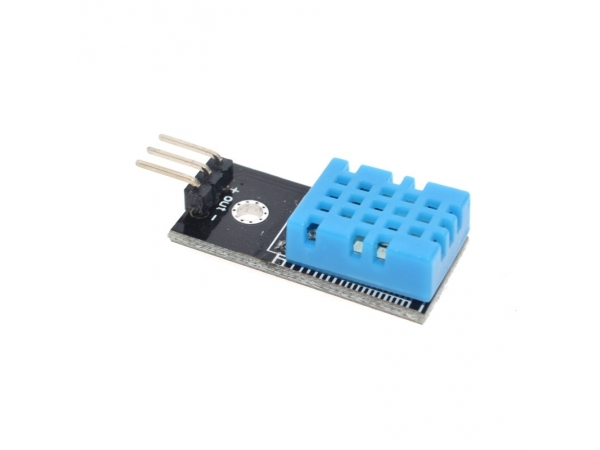

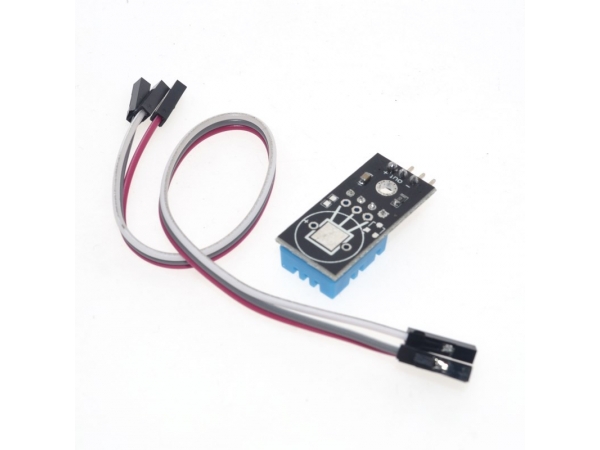

DHT11 temperature module humidity module temperature and humidity module DHT11 sensor

DHT11 temperature module humidity module temperature and humidity module DHT11 sensor
DHT11 Digital Temperature and Humidity Sensor DHT11 module
New Temperature and Relative Humidity Sensor DHT11 Module with Cable Diy Kit
Digital Temperature Sensor / Humidity Sensor DHT11 DHT22 AM2302 AM2301 AM2320 MW33 Sensor And Module
1. Size: 30.5mm (length) *12mm (Weight) * 7.2mm (height)
2. The main chip: the loose DHT11 temperature and humidity sensor
3. Operating voltage: 5V DC
4. Features:
Humidity measurement range: 20%~90% RH
Humidity measurement accuracy: ±5% RH
Temperature measuring range: 0~50 ℃
Temperature measurement precision: ±2 ℃
Working voltage: DC5V
Output form: digital signal output
5. Data port with pull-up resistor
6. With screw hole for fixation,2.6mm hole size
7. Wiring instructions:
VCC → 3.3V/5V +
GND → -
DATA →IO
  • DHT11 temperature module humidity module temperature and humidity module DHT11 sensor
    DHT11 Digital Temperature and Humidity Sensor DHT11 module
    New Temperature and Relative Humidity Sensor DHT11 Module with Cable Diy Kit
    Digital Temperature Sensor / Humidity Sensor DHT11 DHT22 AM2302 AM2301 AM2320 MW33 Sensor And Module
    1. Size: 30.5mm (length) *12mm (Weight) * 7.2mm (height)
    2. The main chip: the loose DHT11 temperature and humidity sensor
    3. Operating voltage: 5V DC
    4. Features:
    Humidity measurement range: 20%~90% RH
    Humidity measurement accuracy: ±5% RH
    Temperature measuring range: 0~50 ℃
    Temperature measurement precision: ±2 ℃
    Working voltage: DC5V
    Output form: digital signal output
    5. Data port with pull-up resistor
    6. With screw hole for fixation,2.6mm hole size
    7. Wiring instructions:
    VCC → 3.3V/5V +
    GND → -
    DATA →IO
